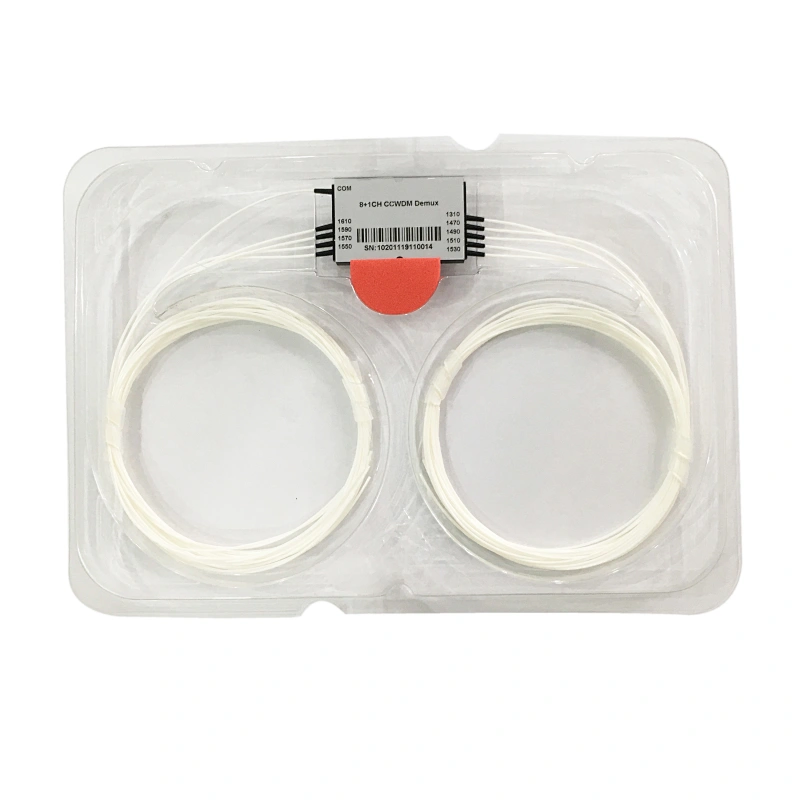

8+1CH CCWDM Demux
8+1CH CCWDM Demux
8+1CH CCWDM Demux

8+1CH CCWDM Demux

Model NO.
8+1CH
Quantity:

Demux,mini modul(metal packing box 44x28x6mm),1470~1610+1310±40nm,900um,pigtail length: 1.0m,without connector

Specification

Parameters

Specifications

Unit

Operating Wavelength

1260~1620

nm

Channel

1470、1490、1510、1530、
1550、1570、1590、1610、1310

nm

Channel Spaceing

20

nm

◊Channel Passband(@-0.5dB bandwidth)

±6.5

nm

◊1310nm Channel Passband

±40

nm

◊Insertion Loss1

≤1.7

dB

◊Isolation

Adjacent

≥35

dB

Non-adjacent

≥40

dB

1310nm

≥30

dB

Insertion Loss Temperature Sensitivity

≤0.5

dB

Wavelength Temperature Shifting

≤0.002

nm/℃

Polarization Dependent Loss

≤0.15

dB

Polarization Mode Dispersion

≤0.2

ps

◊Ripple

≤0.5

dB

Directivity

≥50

dB

Return Loss

≥45

dB

Maximum Power Handing

300

mW

◊Operating Temperature

-40~+85

Storage Temperature

-40~+85

Fiber Type

900um, G657A1

/

Loosetube color

白色/White

/

Fiber Length

>1

m

Connector

NA

/

Package size

44x28x6.2

mm

Packaging:

Use blister box - C11 packaging material, including paper version test report
Outer size: L235×W170×H18mm

Send Message

* clear input
* clear input
*

Related Products

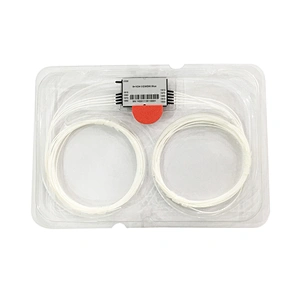

Model NO. 8+1CH
