IP68 Waterproof 48 core ftth fiber optic splice closure price optical fiber optic joint enclosure junction box with PLC
WT-SF05-48 96A
IP68 Waterproof 48 core ftth fiber optic splice closure price optical fiber optic joint enclosure junction box with PLC
Quantity:
IP68 Waterproof 48 core ftth fiber optic splice closure price optical fiber optic joint enclosure junction box with PLC

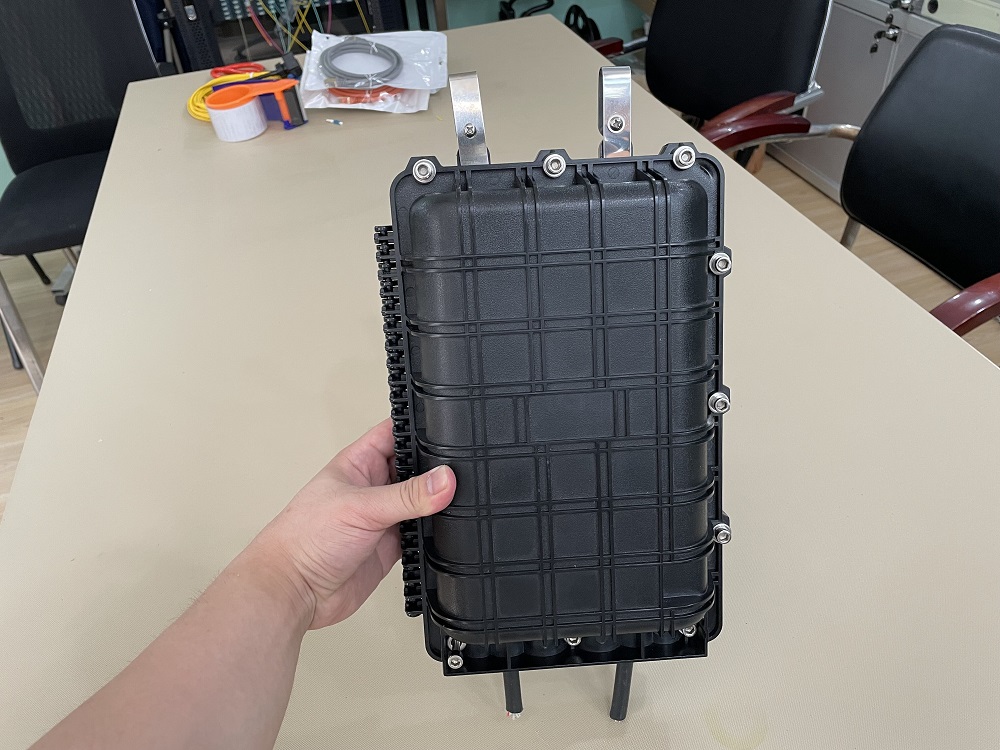

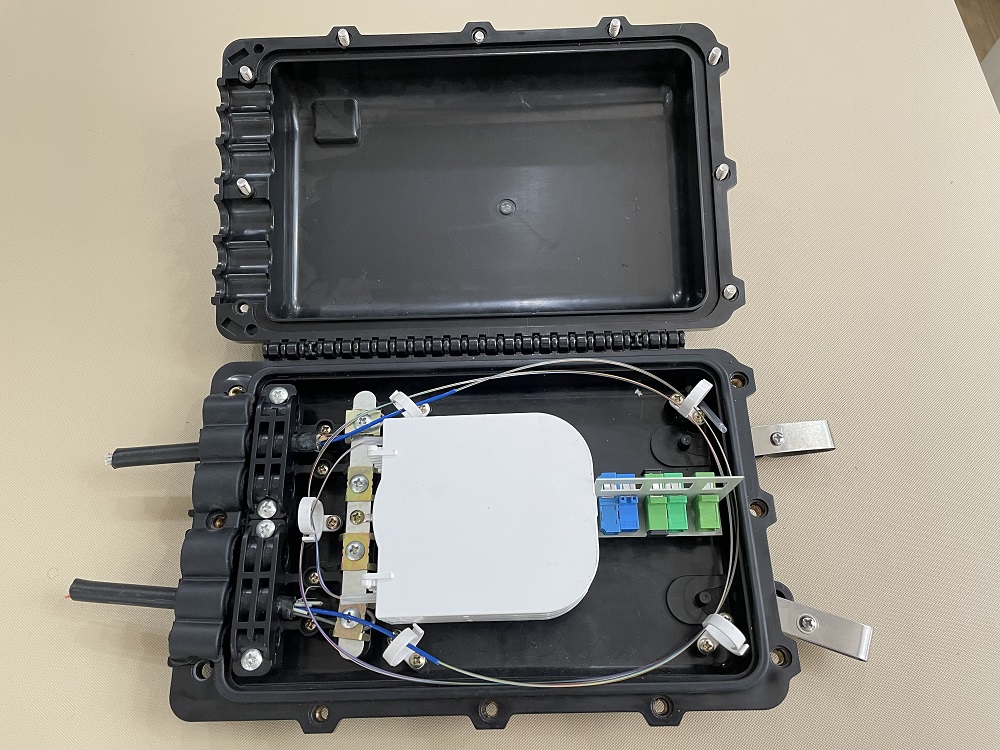

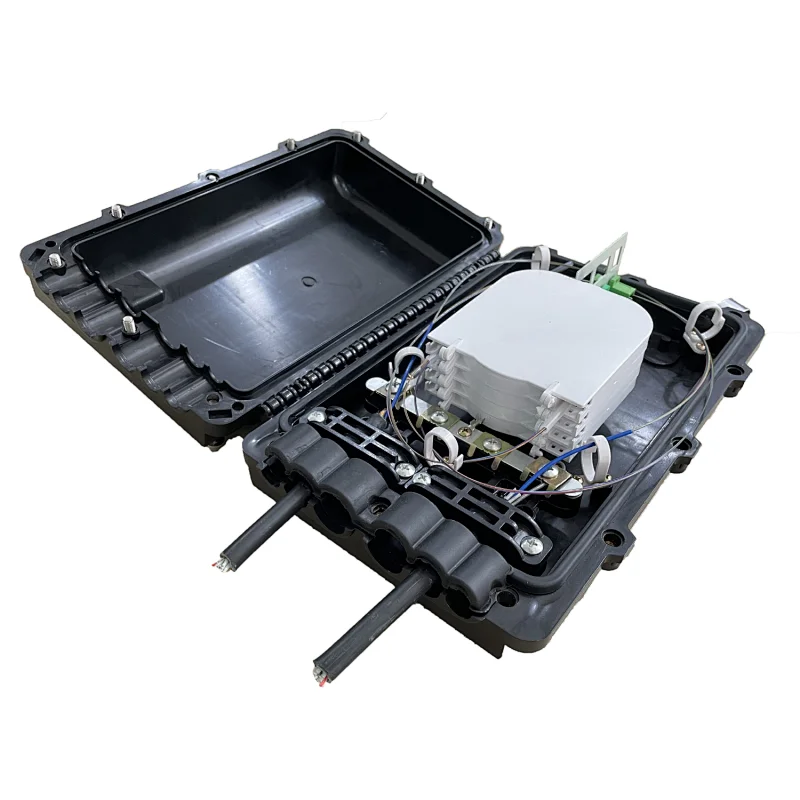

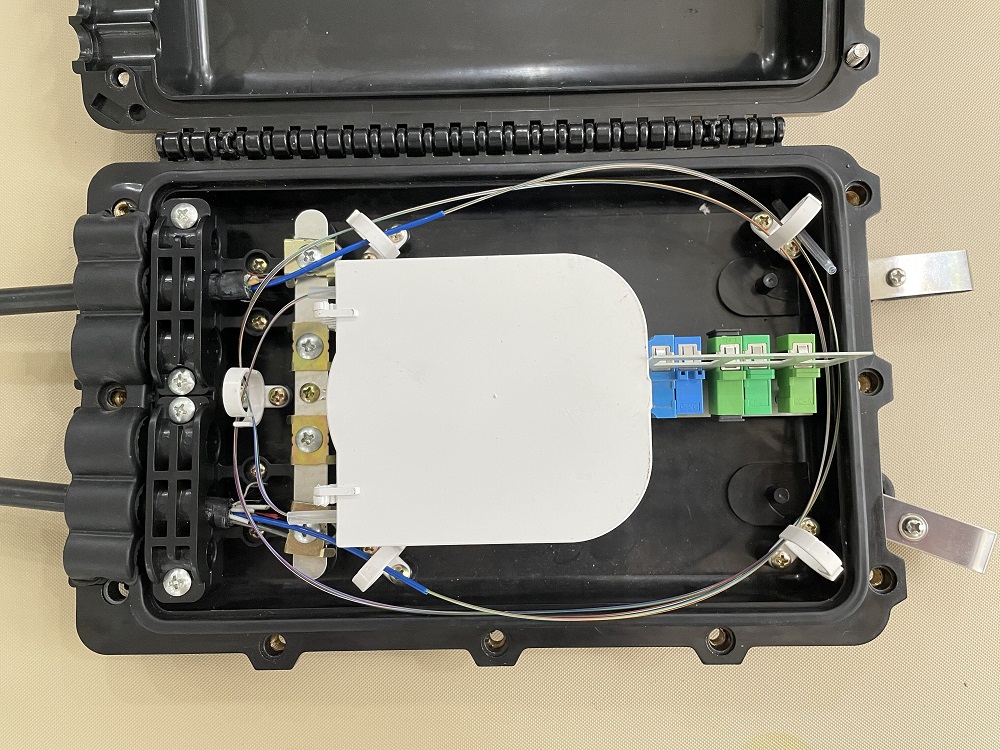

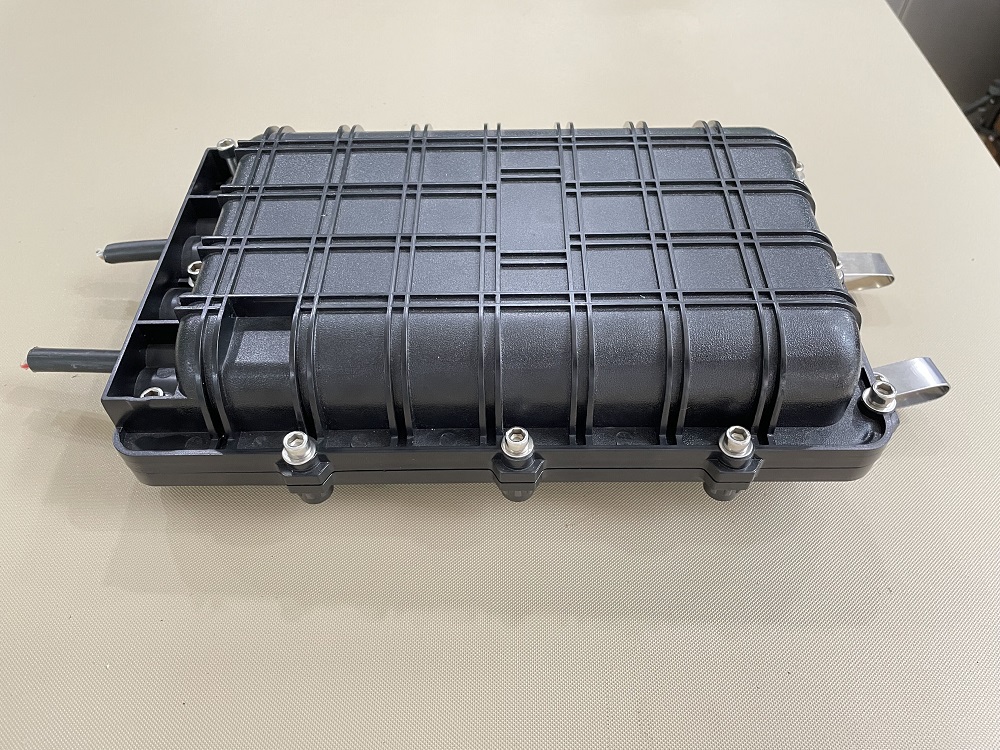

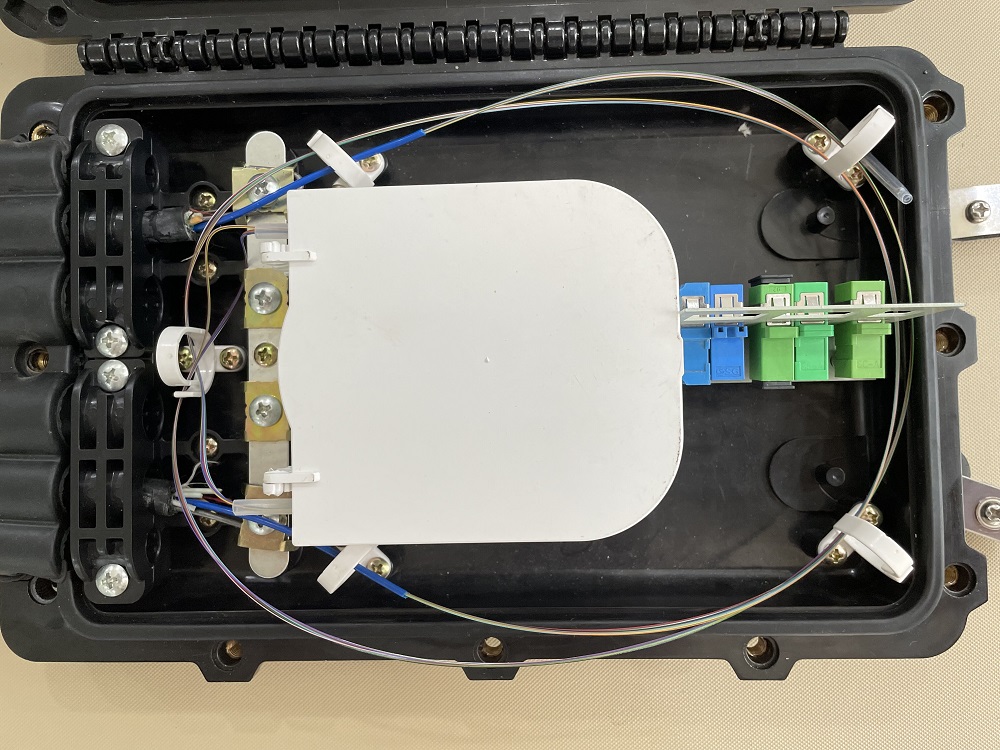

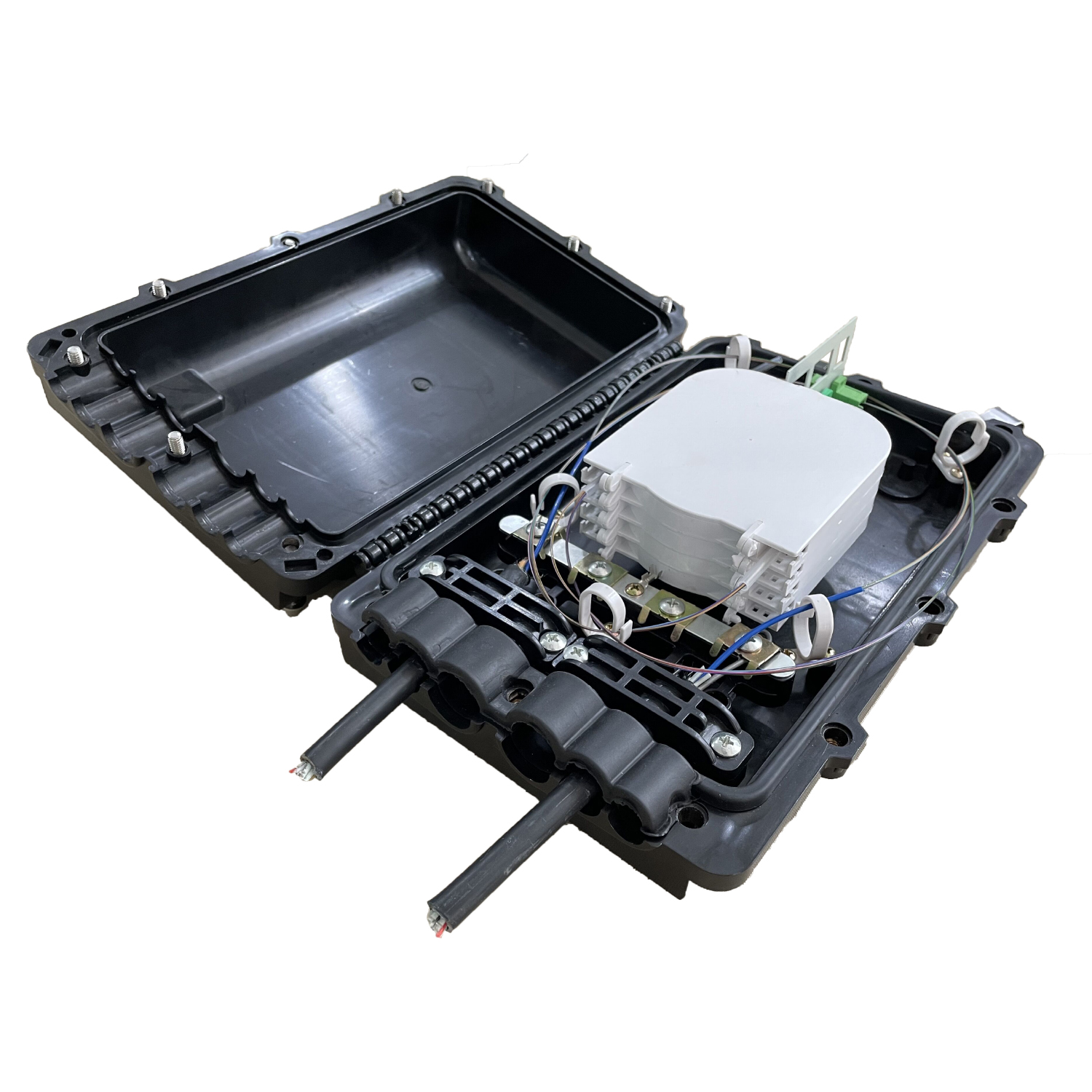

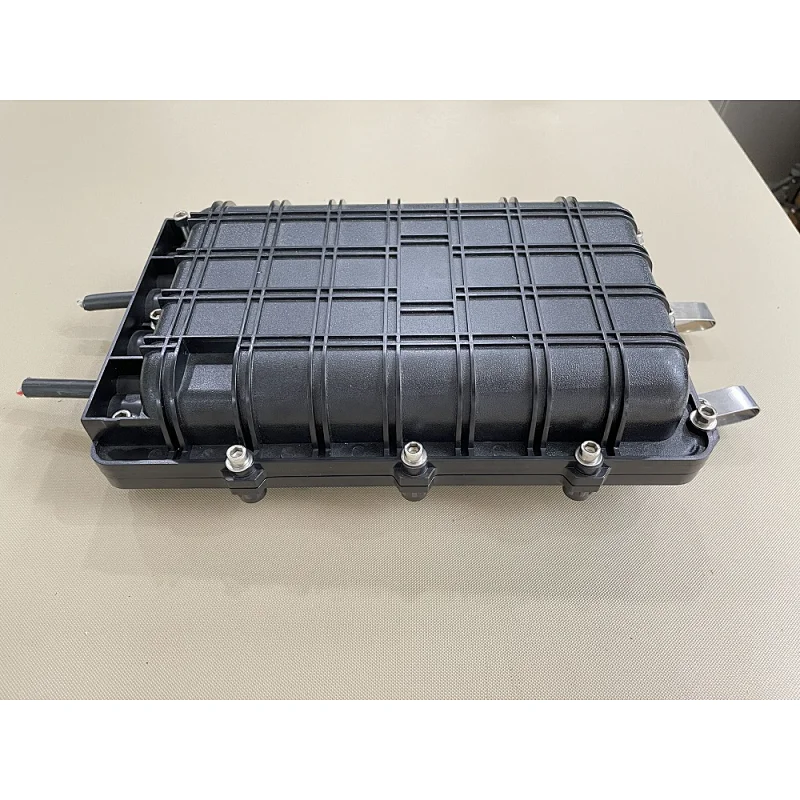

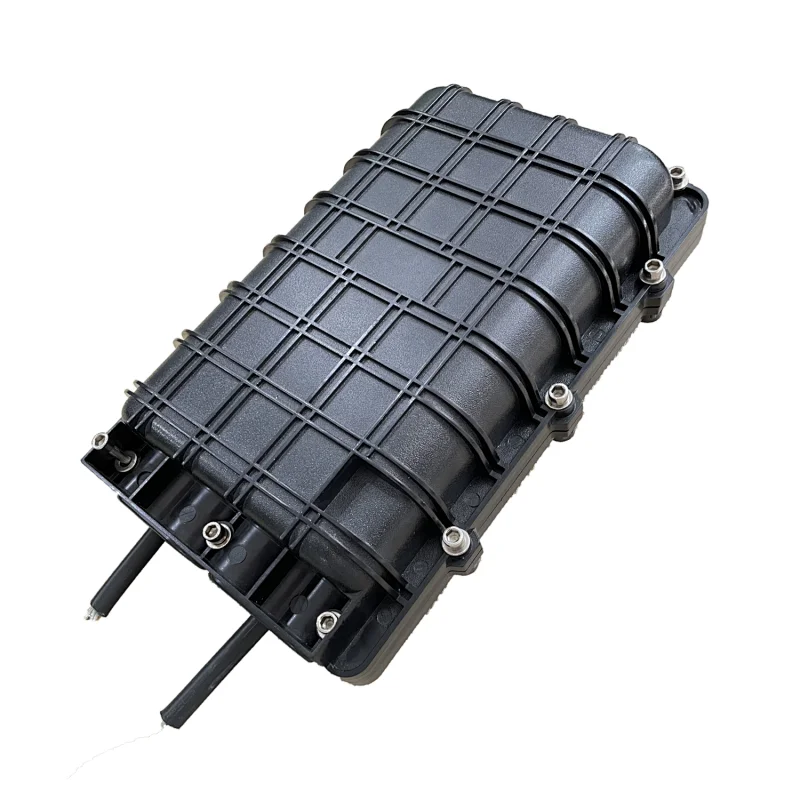

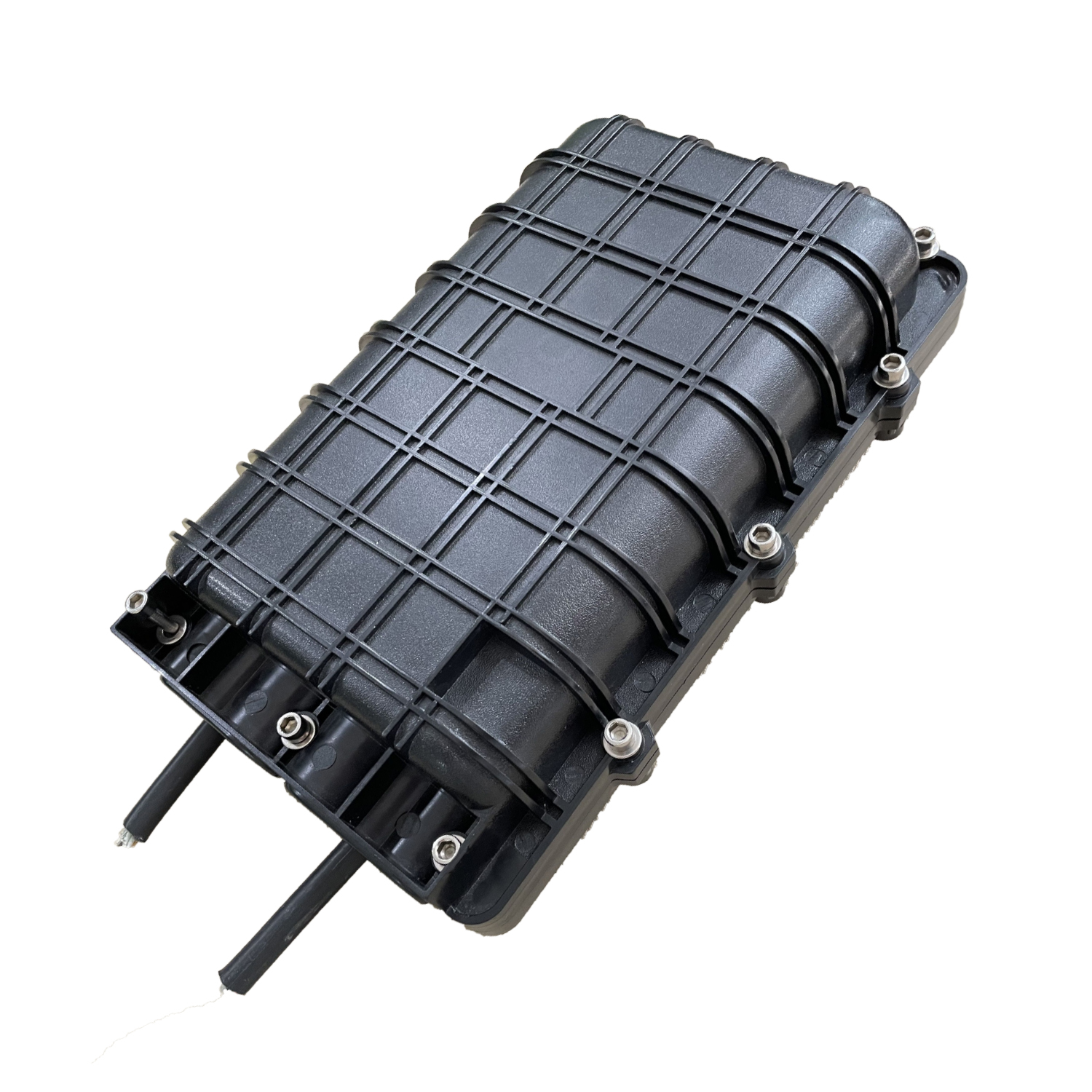

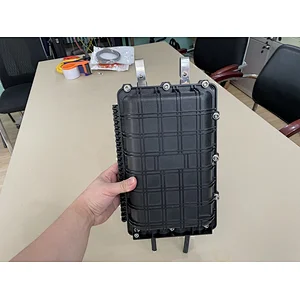

WT-SF05-96A&48B provide with 6 fiber cable in-out round ports and the cable diameter is from 7~20mm. It is widely applied to the splicing and distributing variable optical cables by aerial, duct and burier.This product is made of high-quality ABS+PC and with the mechanical seal structure filled with the seal material. The external component and fastening piece are all made of the high-quality stainless steel. It can be opened after sealing and can be reused without changing sealing material, with silicone rubber insulation tape.Dust-proof design with IP-68 Protection level.
Applications
Aerial -hanger
Wall-mounting
Directly buried
Description
Use:FTTx
capacity:24~96 core
Size(mm):300*200*80mm
cable diameter:7~20mm
Temperature Range:-40~+80℃ Resistance to lateral
The radius of curvature of the fiber:47mm Left fiber length in the plate:≥1.5m
Fiber plate:≤0.01dB fiber maximum
cable port:1in and 1out,2 in and 2 out, or 3 in and 3 out
fix type:Aerial hanger/Wall-mounting/Directly buried
Max Capacity:96
No. of Fiber:96
Wall-mounting
Directly buried
Description
Use:FTTx
capacity:24~96 core
Size(mm):300*200*80mm
cable diameter:7~20mm
Temperature Range:-40~+80℃ Resistance to lateral
The radius of curvature of the fiber:47mm Left fiber length in the plate:≥1.5m
Fiber plate:≤0.01dB fiber maximum
cable port:1in and 1out,2 in and 2 out, or 3 in and 3 out
fix type:Aerial hanger/Wall-mounting/Directly buried
Max Capacity:96
No. of Fiber:96
| Material | PC+ABS |

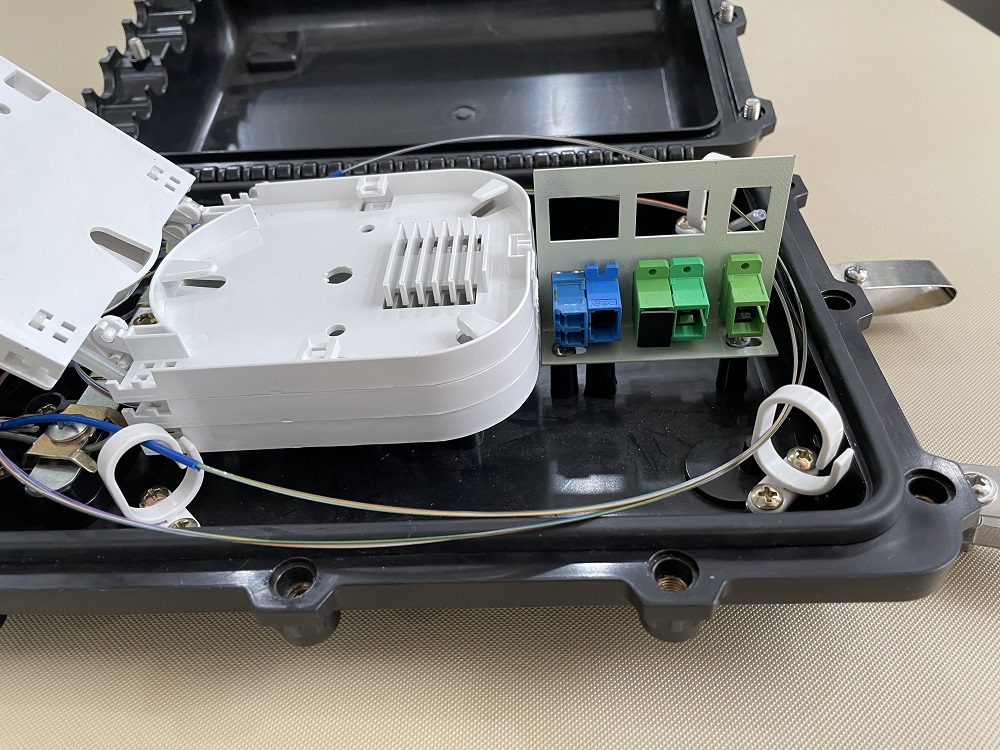

| Adapter Capacity | 5pcs with SC simplex adapters(B type) |
| Number of Cable Entrance/Exit | 6 |
| Dimensions (W*H*D) | 300*200*80mm |
| Installation | Aerial–hanger/Wall-mounting/Directly buried |
| Drop Cable (Round) | 7mm~20mm |
| Optional Accessories | Adapters, Splicing Tray |
| Weight | 2800g(empty) |
