4 Core FTTH Terminal Box
4 Core FTTH Terminal Box
4 Core FTTH Terminal Box

4 Core FTTH Terminal Box

Model NO.
4C-1
Quantity:

product description

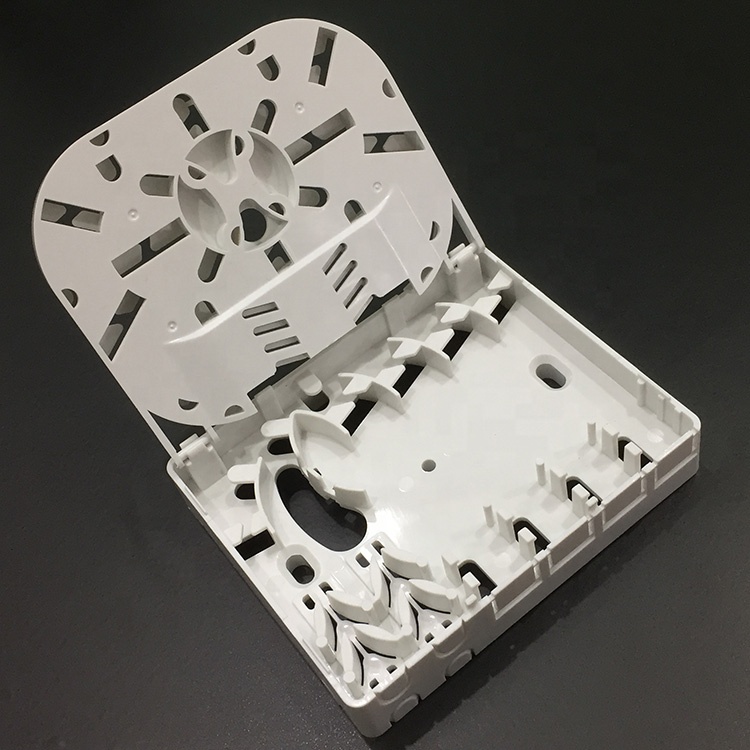

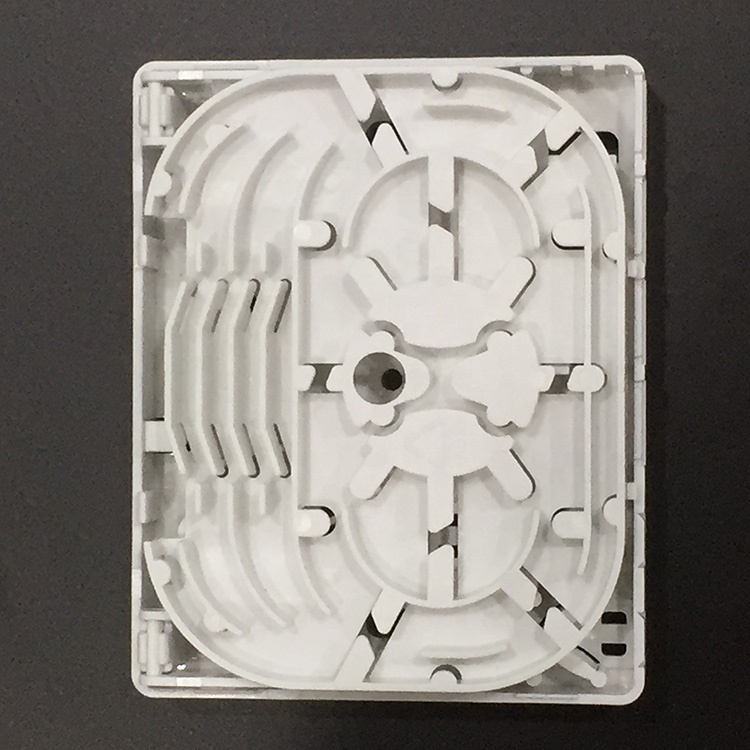

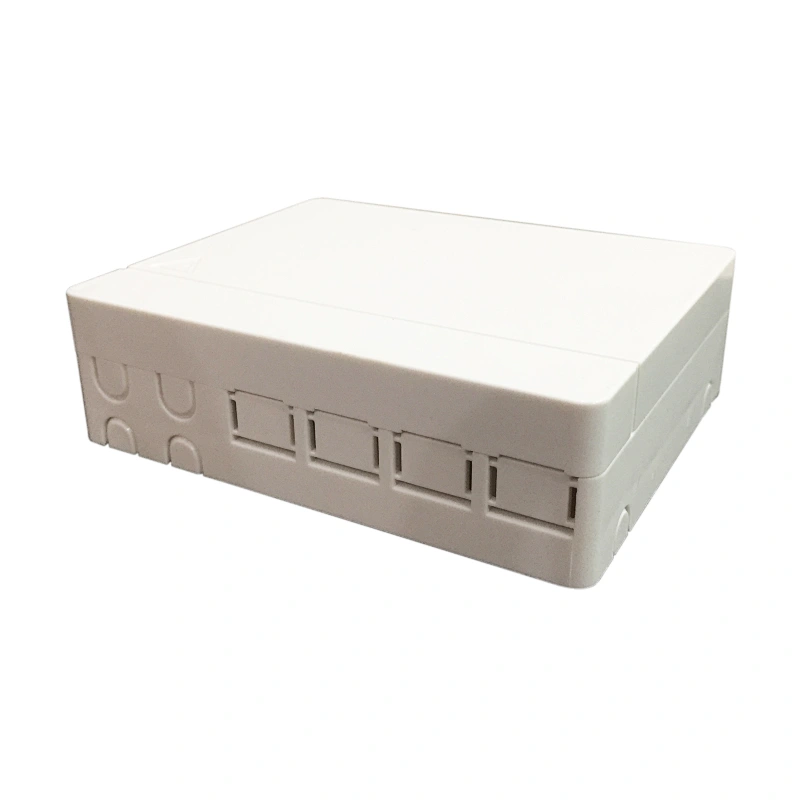

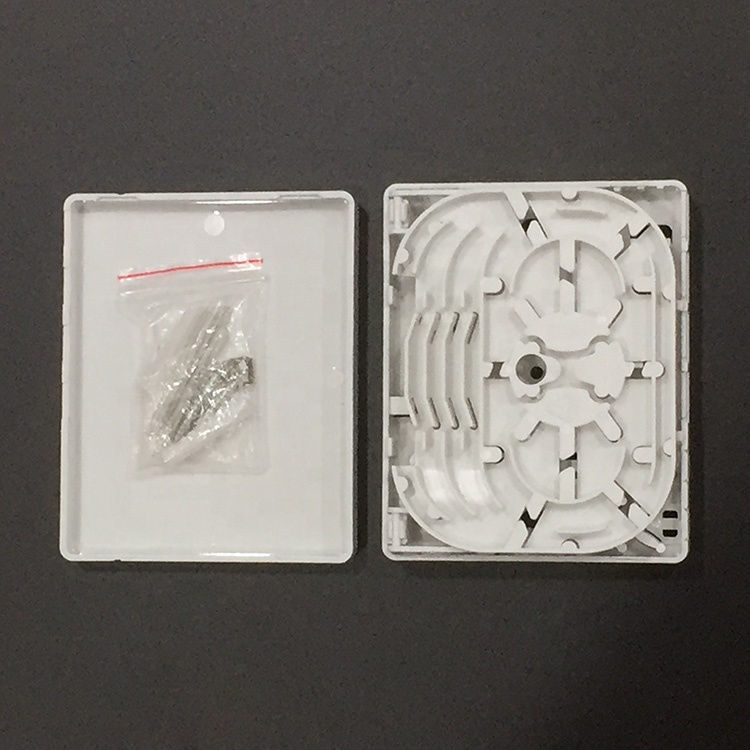

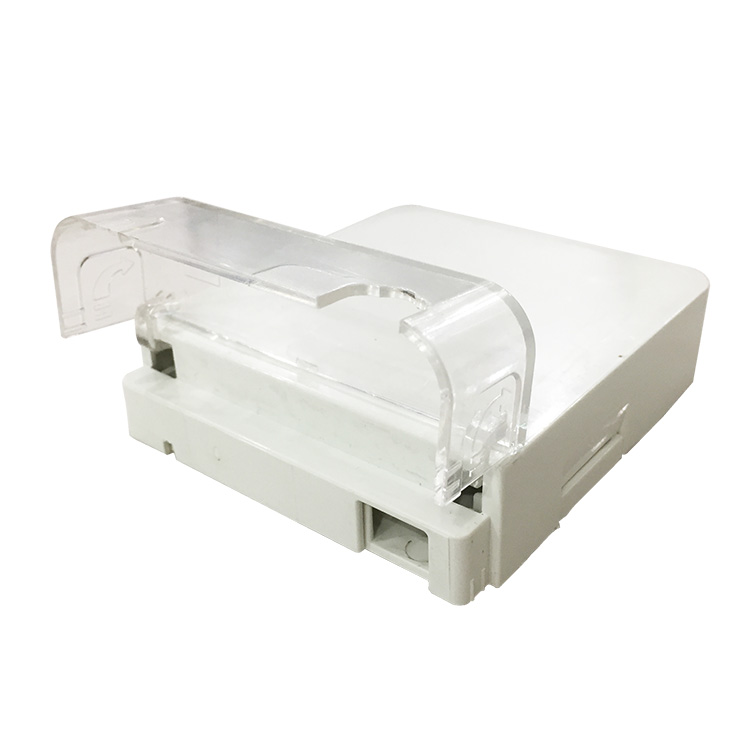

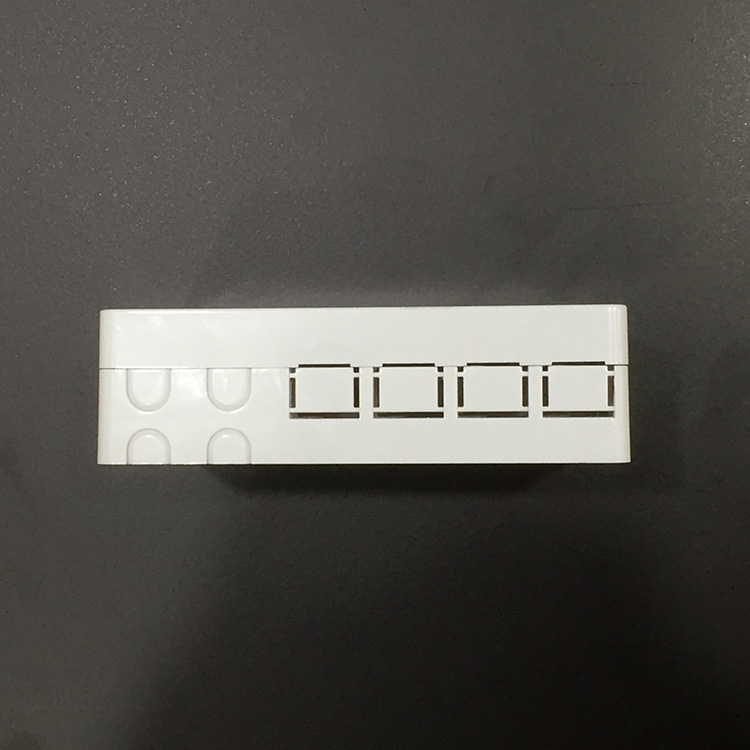

This miniature optical fiber socket panel optical fiber terminal box is used for fusion splicing and splitting between indoor optical cables and pigtails. It uses SC or LC duplex type. Terminal boxes are used for wall or desktop applications. Made of plastic material for easy installation at home or office. The outlet is designed to install SC fiber jumper adapters and work positioning subsystems.



Connector attenuation (insert, swap, repeat)≤0.3dB
Return lossAPC≥60dB UPC≥50dBPC≥40dB
Connector plug durability>1000
Dimensions100*80*30mm
Weight53g
Adapter capacity4
Import and export quantity4/4
Adapter typeSC SX,LC DX
