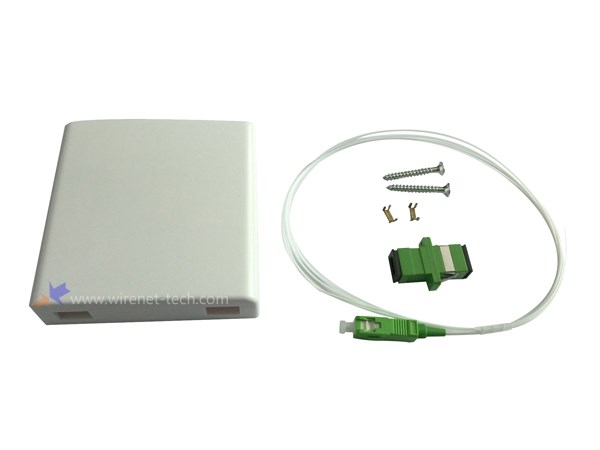

The indoor 86mm type FTTH mini fiber optic faceplate employs a compact plug-in design, combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO and FTTD, etc., and allows easy use in different installation environments.
Features
- Small size, light weight, use conveniently
- ABS material, fireproof and dustproof
- Radian appearance makes it slinky
- Suitable for various modules and multimedia interfaces
- Embedded chart and logo position make it easy to identity
- Support MM or SM fiber connection
- 2 ports for SC simplex, LC duplex adapters
Detailed information
- Very thin and matches with other A86 panels in homes and also meet the open or concealed cabling for optical cables
- Used in FTTH indoor application, home or work area
- Provide users with optical access or data access

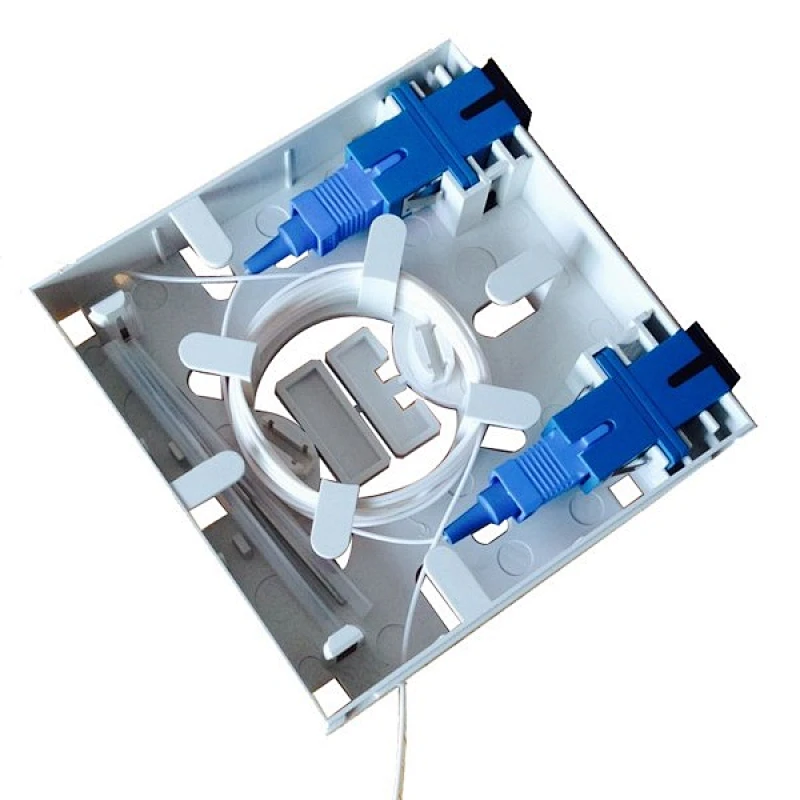

- Suitable for 2 pcs SC adapters

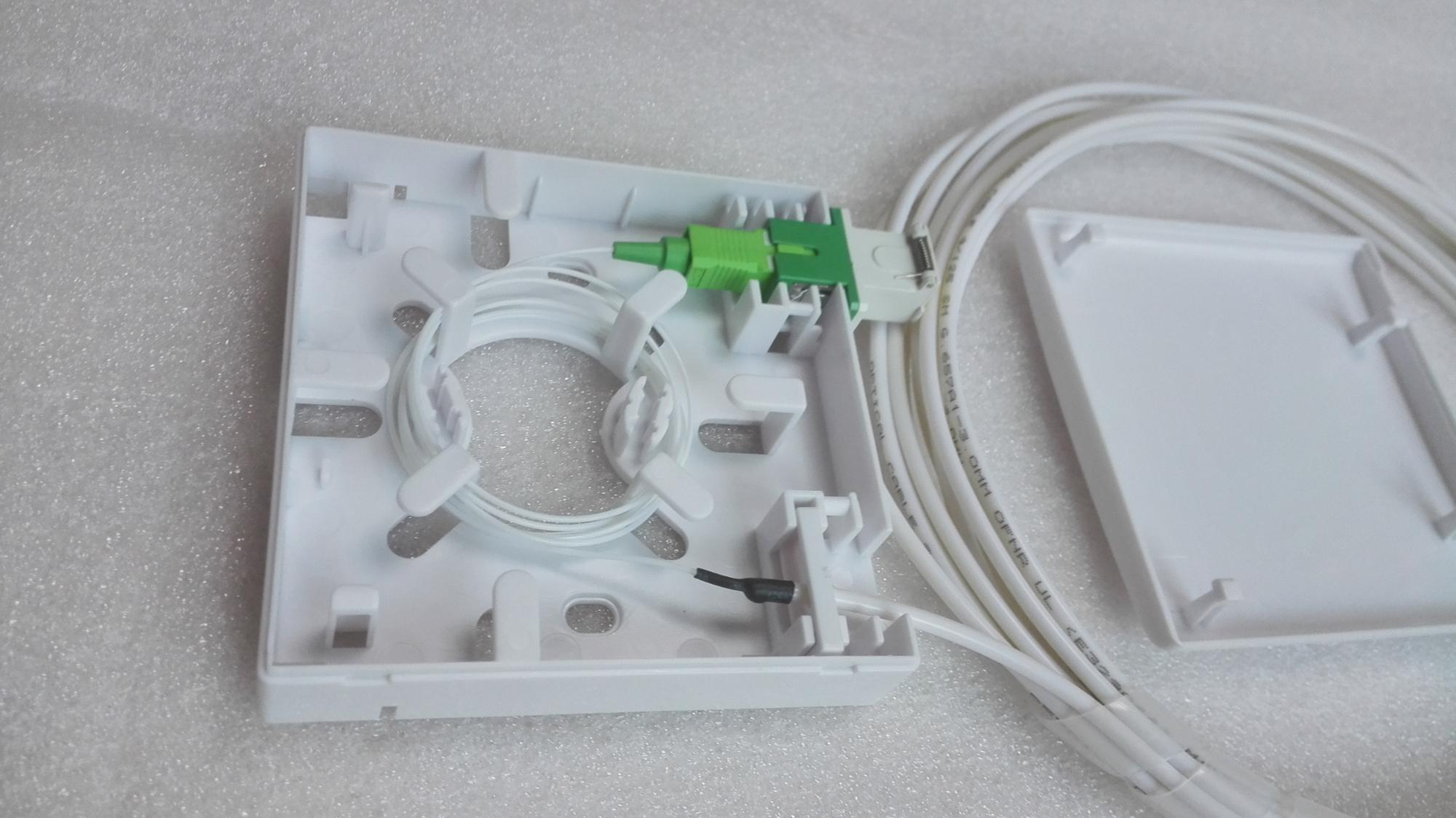

- May store surplus fiber inside, easy for operation
- A user end product to realize optical fiber to desktop solution.
- It can be used in home or working area to accomplish double-core fiber access and port output.
- Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
Specification
Material | ABS plastic |
Size | 86mm*86mm*23mm |
Weight | 47g |

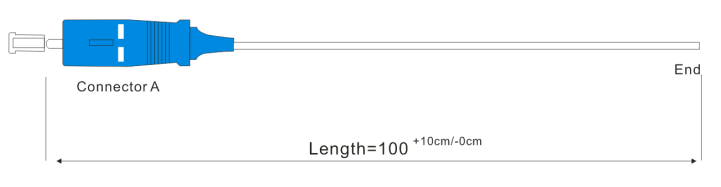

Pigtail

1) Connector A : SC/UPC SM simplex0.9mm connector ,Blue housing, Blue boot.
2) Cable: G657A1 0.9mm tight buffer white PVC (Fiber 9/125 G657A1 )
Pigtail parameter
Fibers | 9/125 G657A1 fiber |
Test wavelength | 1310/1550nm |
Insertion Loss (Max) | <-0.3dB |
Return Loss (RL) | >55dB |
Durability | <0.1dB typical change,1000 repeatability |
Adaptor parameter
Insertion loss | Typical | 0.1dB |
Maximum | 0.2dB |
Durability | ≤0.2dB typical change,1000 mating |
Sleeve pull force | 0.2-0.6kg |
Operating Temperature | -40~+70 degree centi for ABS material |
Housing color | blue/green |
Sleeve | ceramic sleeve |
Channel | SIMPLEX |
Application | SC UPC/APC SM |
Flange | With flange |
