Features
- Fiber alignment: core or cladding alignment
- Real-time monitoring of power supply
- 5 inch digital high-quality LCD screen
- Built-in lighting(easy to place fiber optics)
Specification
Splicing Type | SM, MM, DS, NZDS |
Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return Loss | >60dB |
Splicing Mode | Manual, Half Auto, Auto |
Fiber Alignment | Core to Core Alignment by PAS technology |
Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
Splicing Time | ≤8s |
Heat Time | ≤30s |
Cleaved Length | 8~16mm |
Fiber Image/ Magnification | 300/200 |
View Display | 5 inch digital high-quality LCD screen |
Tension Test | Standard 2N (option) |
Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity | 200 cycles splicing and heating, 3 hours charging time( splicing and charging at same time) |
Battery Life | Cycling charge 300-500 times, easy to replace battery |
Electrodes Life | 3000, easy to replace electrodes |
Power Source | ≤20W |

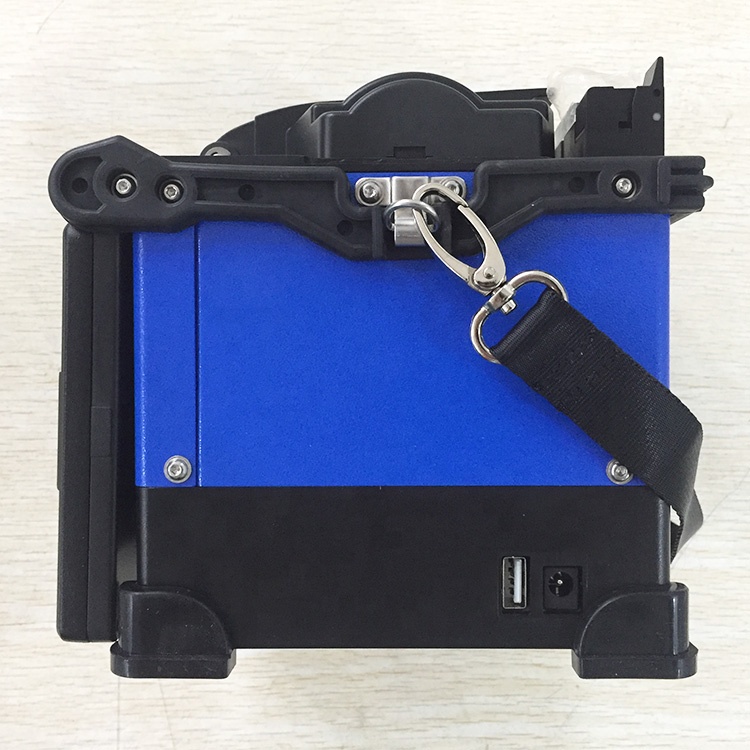

Interface | USB Convenient data download and software update |
Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: A C100-240V, output: DC13.5V/4.5A |
Operating Condition | 0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
Weight (including battery) | 2.1 KG (including battery) |
Dimension (LxWxH) | 135mm(L)×158mm(W)×155mm(H) |

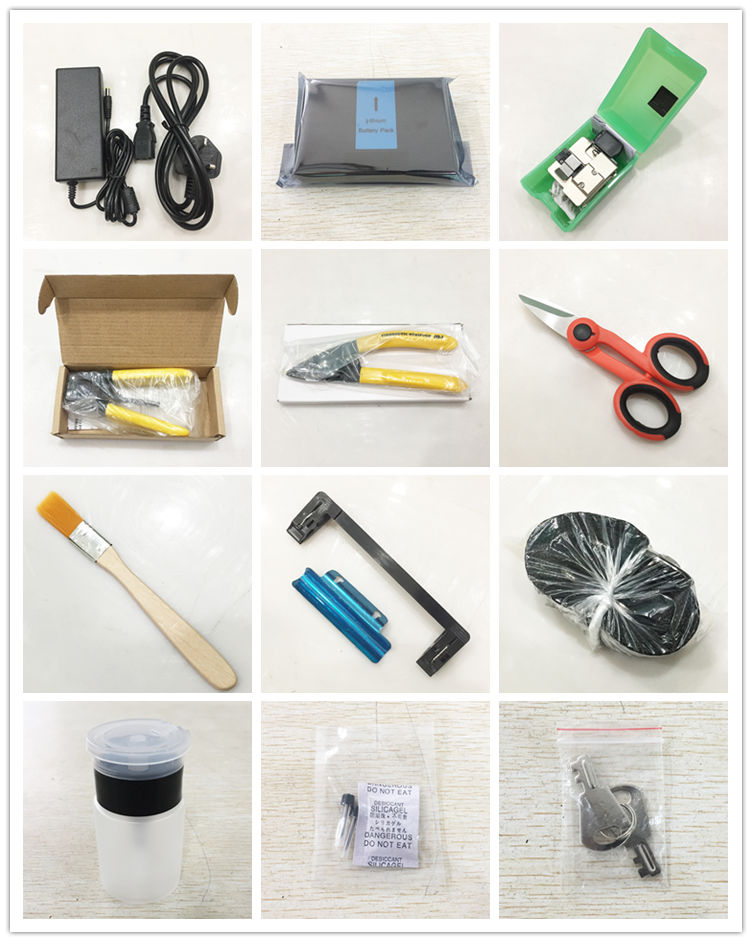

Product accessories
| Name | Qty |
| Fusion Splice | 1 set |
| Fiber Cleaver | 1 set |
| Fiber Stripper | 1 set |
| AC Adaptor | 1 set |
| Power cord | 1 set |
| The lithium battery | 1 set |
| Charger | 1 set |
| Cooling tray | 1 set |
| Spare Electrodes | 2 set |

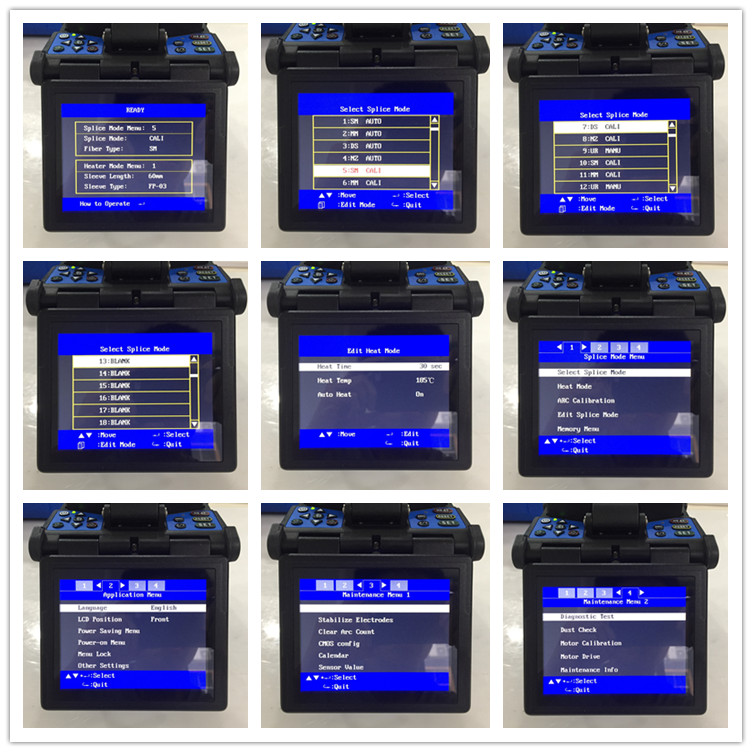

Product operation interface
