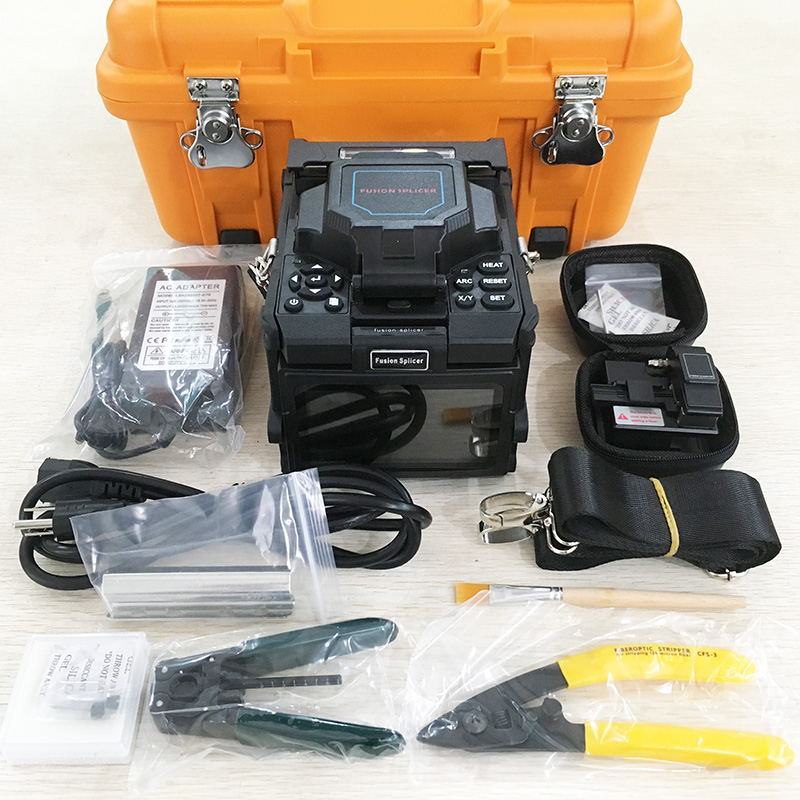

This FTTH Fusion Splicer, with high performance price ratio, is the main product. With smart appearance, reliable quality, This FTTH Fusion Splicer is a special design for the installation, operation and maintenance of optical fiber specially design precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Features
- Core to core digital alignment
- 6s for splicing, 18s for tube-heating.
- 4.3-inch touch screen, small size, easy to carry.
- Three-in-one fiber fixture, suitable for all types of optic fibers.
- High-power dual-LED light, convenient for night construction.
- 5200mAh removable lithium battery, 280 cycles splicing and heating.
- ARC calibrated by temperature and air pressure automatically
- No mirror design, reducing maintenance workload.
- Apply to high & low temperature, high altitude and harsh environment
Specification
Fiber count | Single |
Applicable fiber | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657) |
Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS) |
Return loss | >60dB |
Operate mode | Manual, Auto |

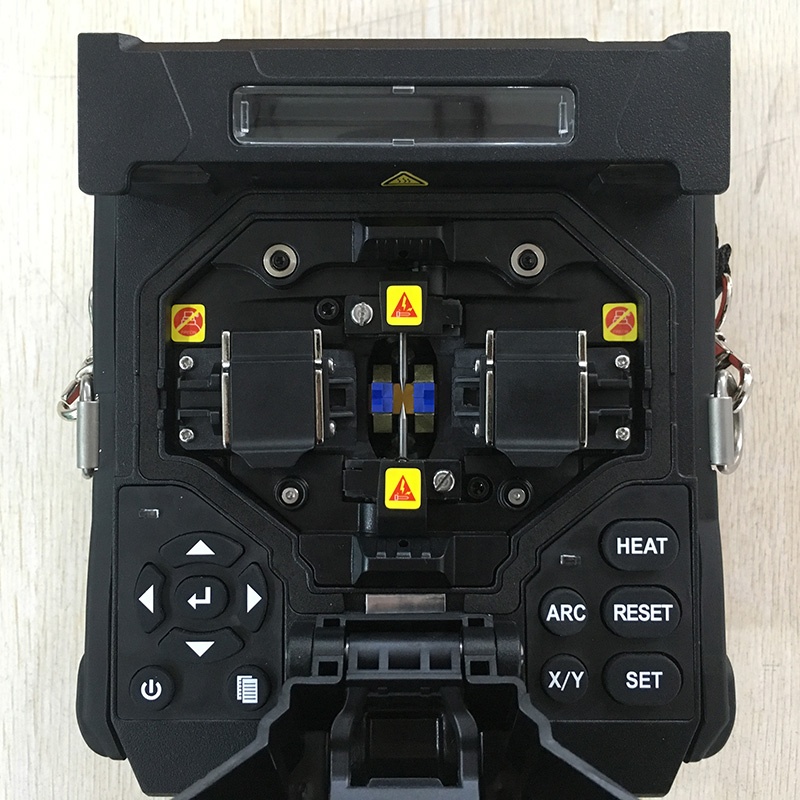

Fiber alignment | Core to core alignment |
Splicing time | Typical 6s |
Heating time | Typical 18s |

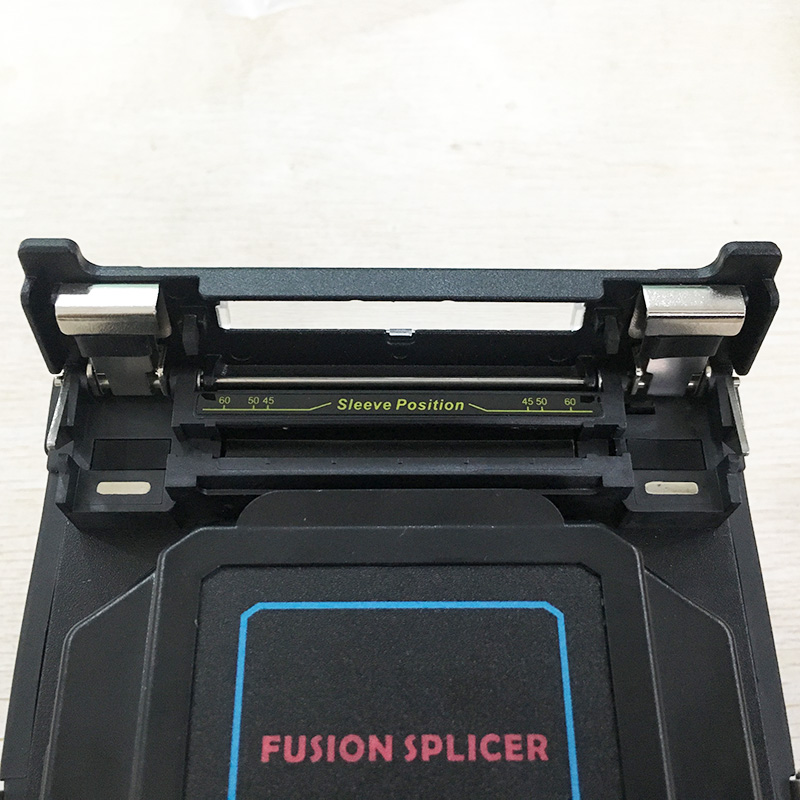

Heat shrinkable tube | 60mm, 40mm |
Fiber cleaved length | 8-16mm |
Fiber view magnification | 350X (X or Y view), 150X (X and Y view) |
Display | 4.3-inch touch-screen LCD |
Tension test | 2N |

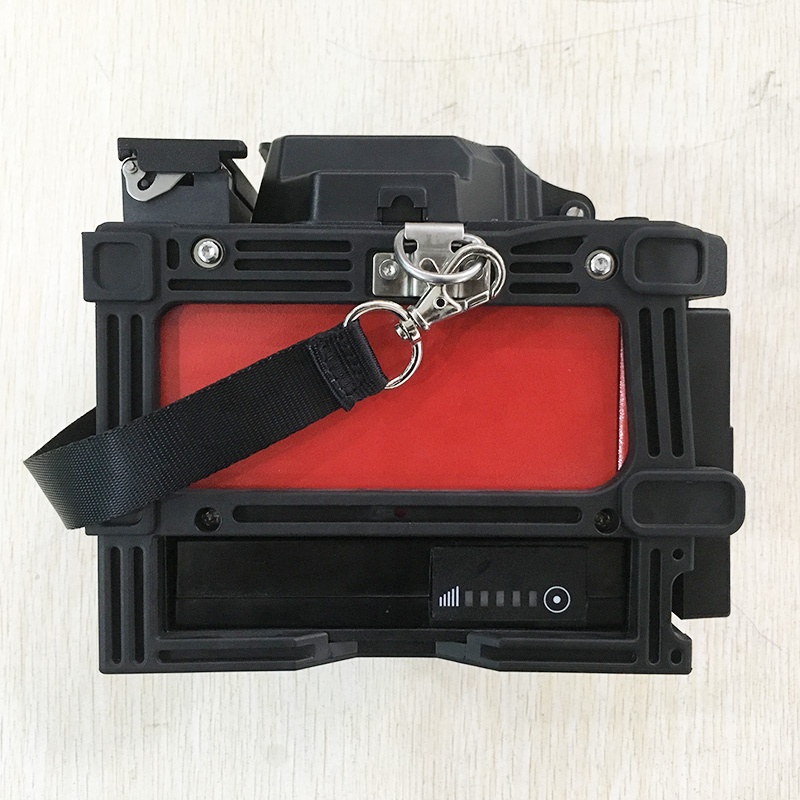

Battery capacity | 5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged. |
Electrode life | Around 5000 ARC discharges |

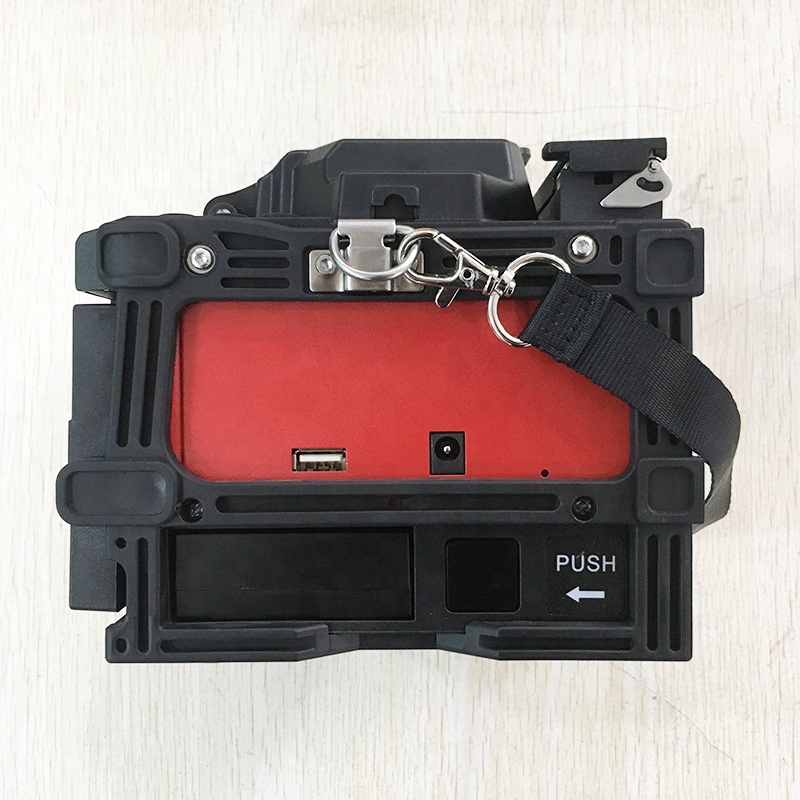

Interface | USB for data download and software update |
Night construction | Built-in high-power dual-LED lights |
Power supply | Adaptor, input: AC100-240V, output: DC13.5V/4.8A. |
Operation condition | Temperature: -15-50℃, humidity: <95%RH (no condensation) |
Weight | 1.95 kg (including battery) |
Dimension | 130mm(L)×154mm(W)×132mm(H) |
