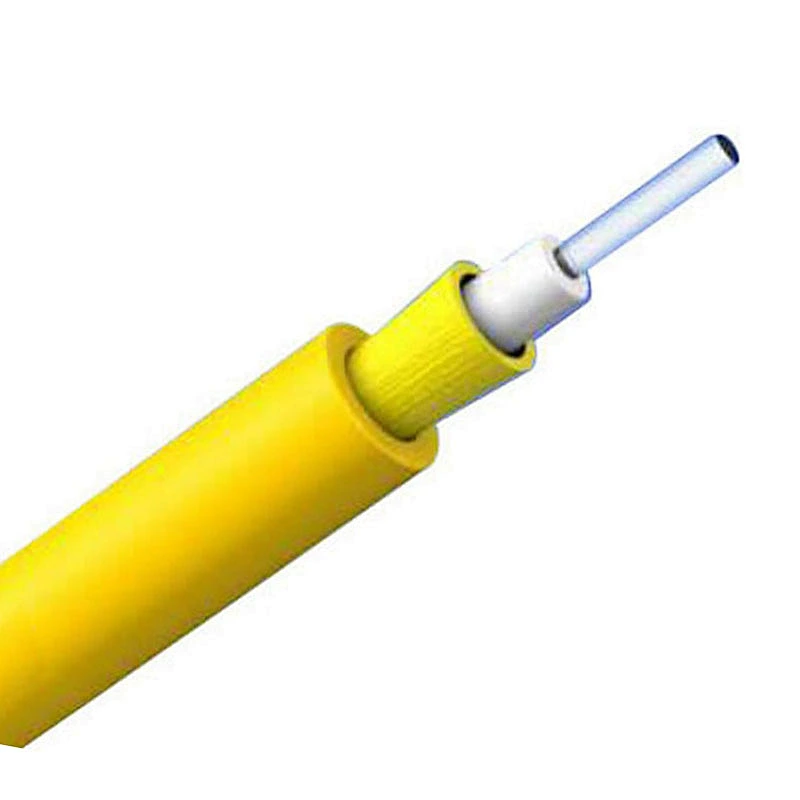

Structure
Technical Parameters
Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
(MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | ℃ | |
1 | 1.6 | 2.2 | 40 | 80 | 100 | 500 | 20D | 10D | -20 to +60 |
1 | 1.8 | 3.0 | 40 | 80 | 100 | 500 | 20D | 10D | |
1 | 2.0 | 3.6 | 60 | 100 | 100 | 500 | 20D | 10D | |
1 | 2.4 | 5.0 | 60 | 100 | 100 | 500 | 20D | 10D | |
1 | 2.8 | 6.5 | 80 | 150 | 100 | 500 | 20D | 10D | |
1 | 3.0 | 7.4 | 80 | 150 | 100 | 500 | 20D | 10D | |
Ordering Information
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
0.9mm Buffer: tight buffer, easy buffer, semi-tight buffer
Cable Diameter: 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm
Sheath Material: PVC,LSZH
Sheath Color: Yellow, Orange, Aqua or Customized
