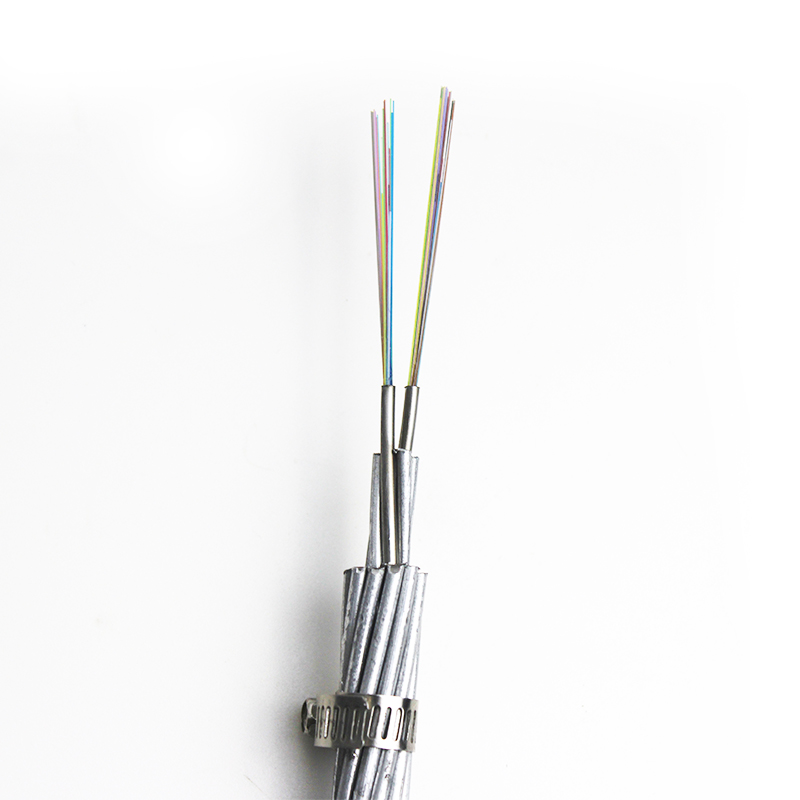

Stranded Optical Ground Wire Fiber Optic Cable OPGW cable
The opgw wire with central core aluminum sheathed tube is made of polymer loose tubes and the outer layer can be a suitable combination of ACS and AA wires for the right ratings as required by the end-user.
High strength OPGW cable is available up to 96 fibers making it suitable for application is high fiber count and super-high-voltage power lines. Steel tubes are stranded with Hi-strain steel wires to create a dual-layer design suitable for a range of high strength applications. The layer of Aluminum gives this product a high fault rating current values.

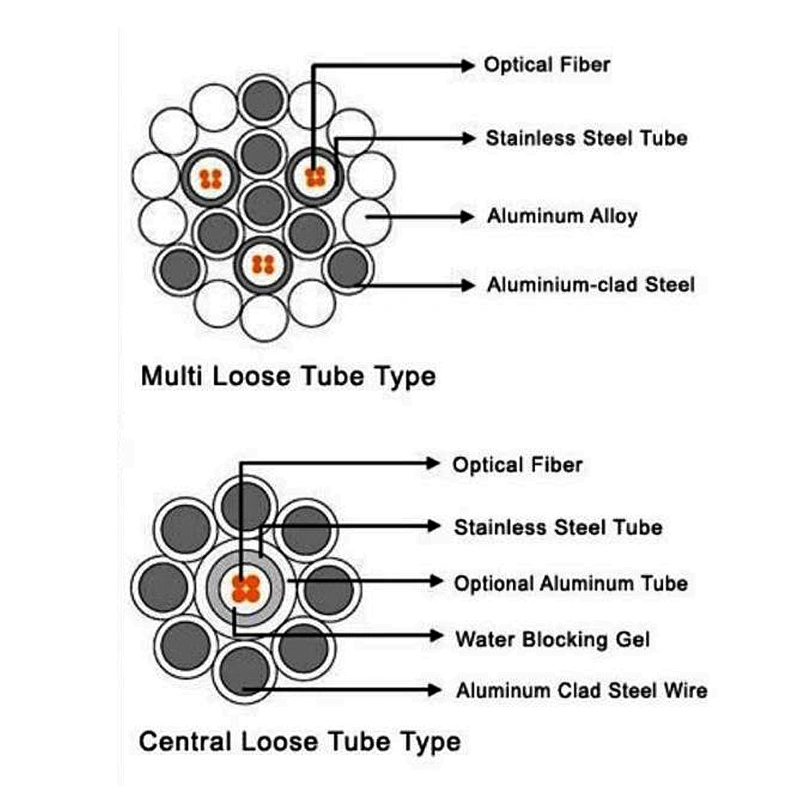

1. Central Tube Optical Ground Wire (OPGW)
The Central Tube optical fiber ground wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their esign is fully adapted to the most common electric line needs.
Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit Capacity(KA2s) |
|
OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |

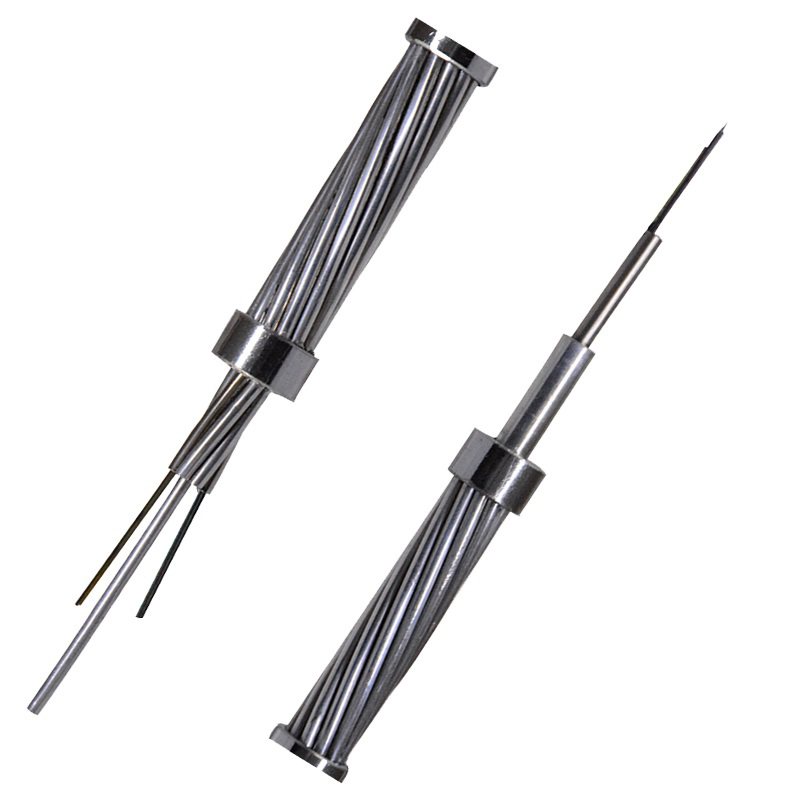

2. Stranded Optical Ground Wire (OPGW)
The Stranded opgw wire is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.
Specification | Fiber Count | Diameter | Weight | RTS | Short Circuit |
(mm) | (kg/km) | (KN) | (KA2s) |
OPGW-96[121.7;42.2] | 12 | 13 | 671 | 121.7 | 42.2 |
OPGW-127[141.0;87.9] | 24 | 15 | 825 | 141 | 87.9 |
OPGW-127[77.8;128.0] | 24 | 15 | 547 | 77.8 | 128 |
OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
3.Characteristics:
Stranded Stainless Steel Tube OPGW
High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
Engineering support supervising and providing its own line of accessories hardware.
Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lighting
To construct OPGW must cut power,resulting in greater loss,thus OPGW must be used in constructing high pressure line over 110kv
Apply to the transformation of old lines.
Central (Al-covered) Stainless Steel Tube OPGW
High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.
Engineering support supervising and providing its own line of accessories hardware.
Larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance.
4.Aluminum Tube OPGW
Good anti-corrosion performance.
Material and structure are uniform,good resistance to vibration fatigue.
Short circuit current has small effect on the optical fiber transmission properties.
Good anti-lightening performance.
