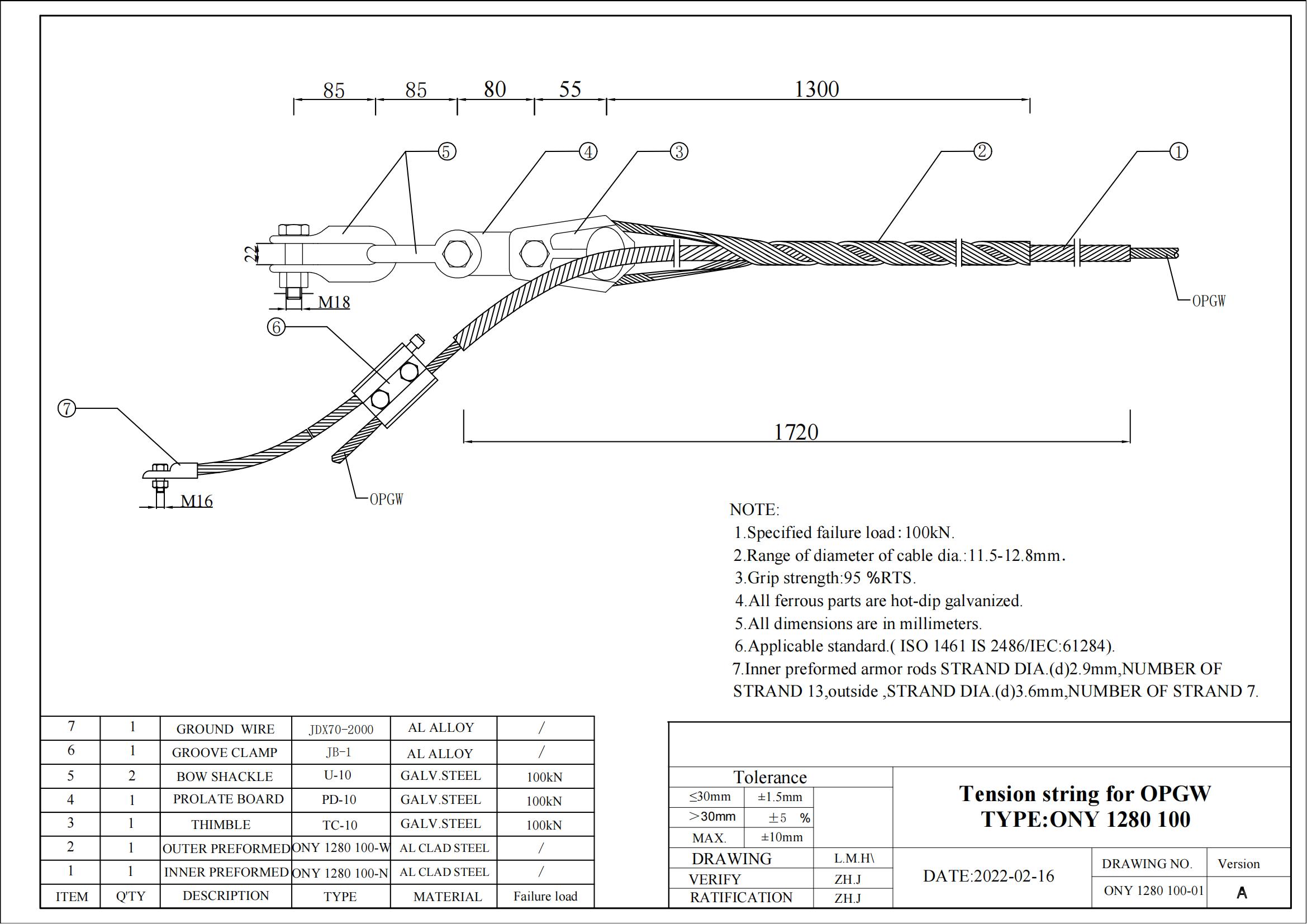

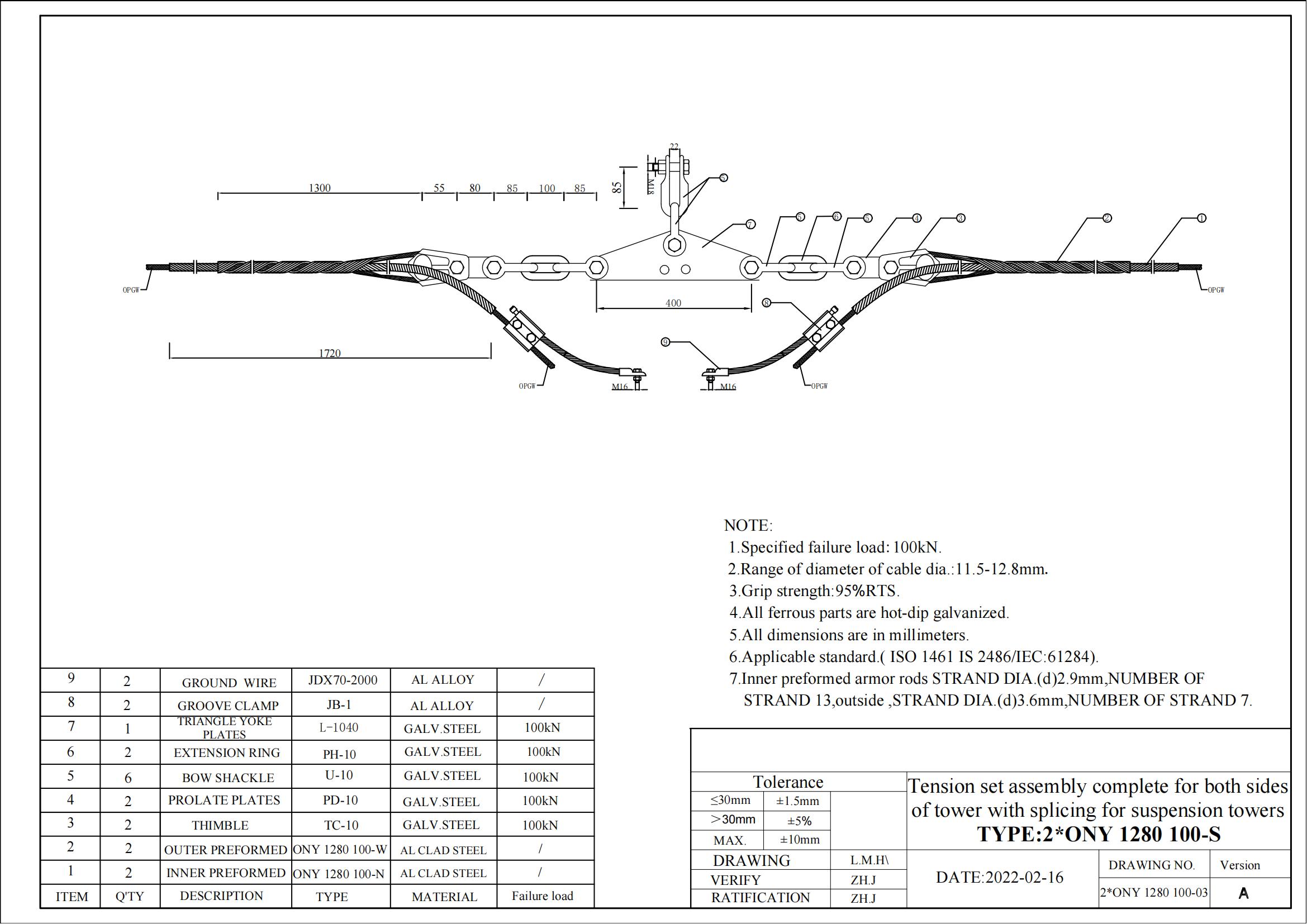

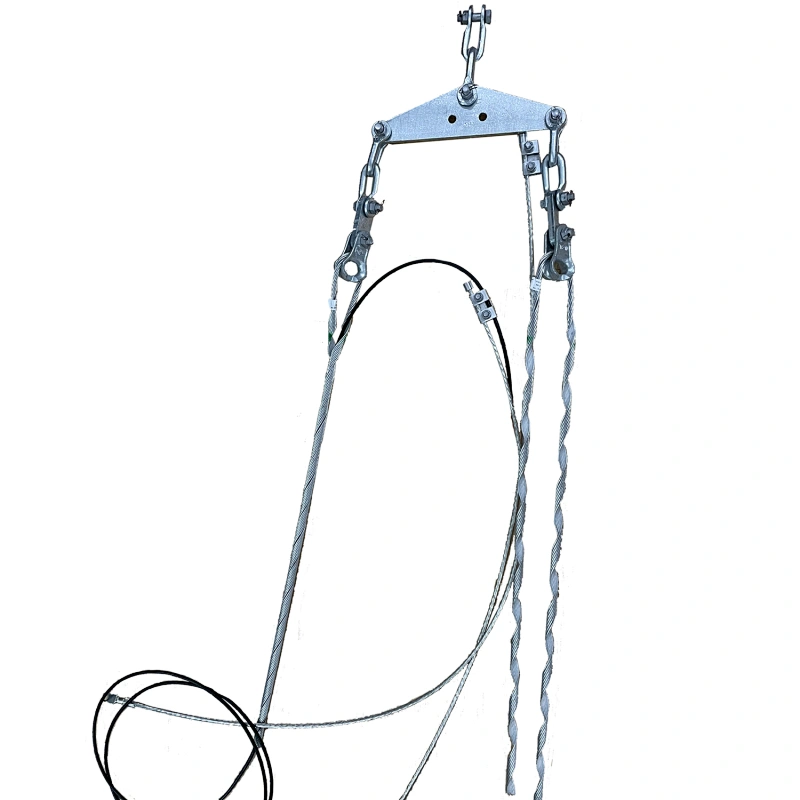

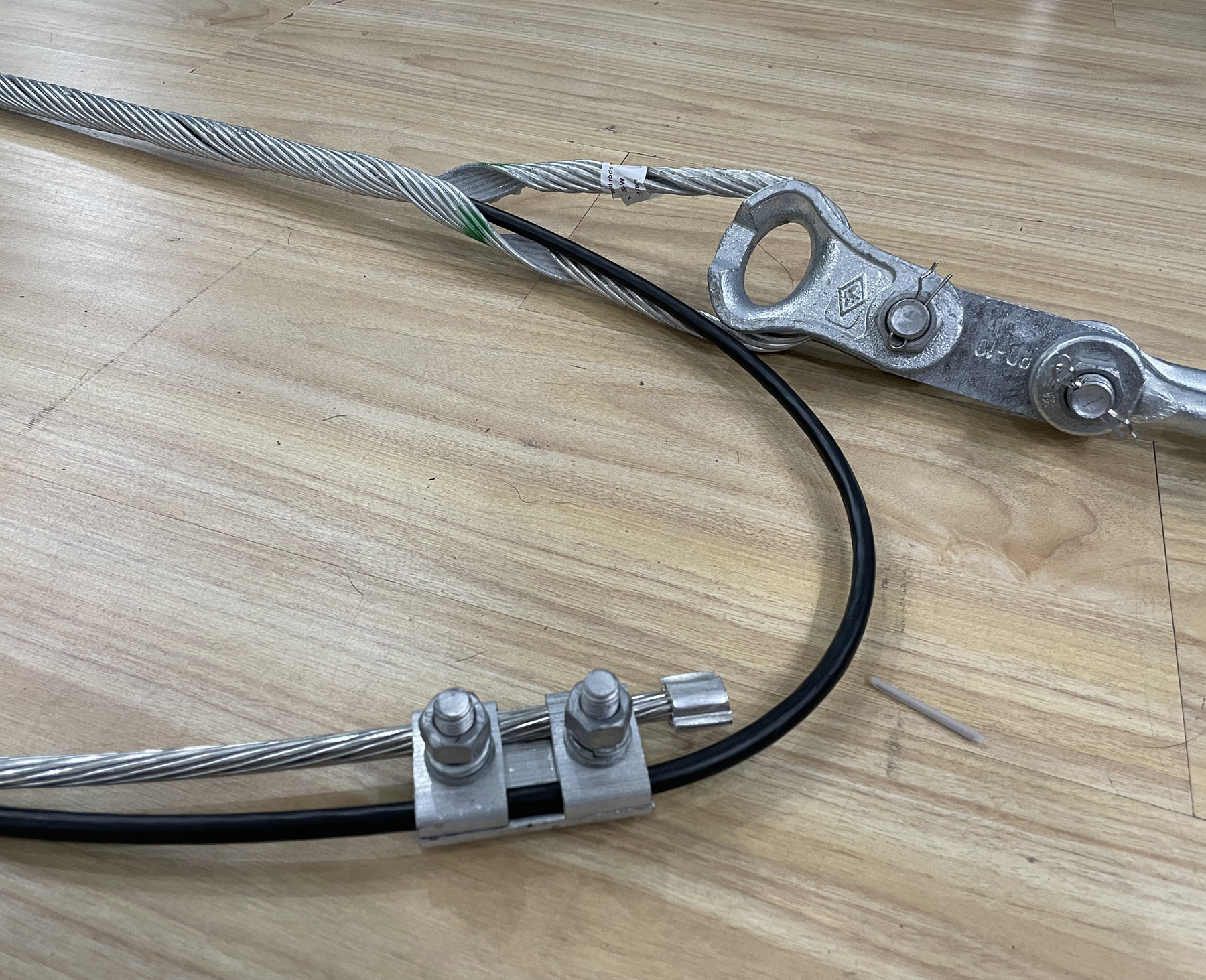

Suspension Assembly Assy OPGW Dead-end Clamp for 36Fiber Tension Set OPGW Suspension Clamp Assy
OPGW Suspension Clamp
NOTE:
1.Specified failure load:100kN.
2.Range of diameter of cable dia.:11.5-12.8mm.
3.Grip strength:95 %RTS.
4.All ferrous parts are hot-dip galvanized.
5.All dimensions are in millimeters.
6.Applicable standard.( ISO 1461 IS 2486/IEC:61284).
7.Inner preformed armor rods STRAND DIA.(d)2.9mm,NUMBER OF STRAND 13,outside ,STRAND DIA.(d)3.6mm,NUMBER OF STRAND 7.
OPGW Suspension Clamp
NOTE:
1.Specified failure load:100kN.
2.Range of diameter of cable dia.:11.5-12.8mm.
3.Grip strength:95 %RTS.
4.All ferrous parts are hot-dip galvanized.
5.All dimensions are in millimeters.
6.Applicable standard.( ISO 1461 IS 2486/IEC:61284).
7.Inner preformed armor rods STRAND DIA.(d)2.9mm,NUMBER OF STRAND 13,outside ,STRAND DIA.(d)3.6mm,NUMBER OF STRAND 7.
| ITEM | DESCRIPTION | TYPE | MATERIAL | Failure load |
| 1 | INNER PREFORMED | ONY 1280 100-N | AL CLAD STEEL | / |
| 2 | OUTER PREFORMED | ONY 1280 100-W | AL CLAD STEEL | / |

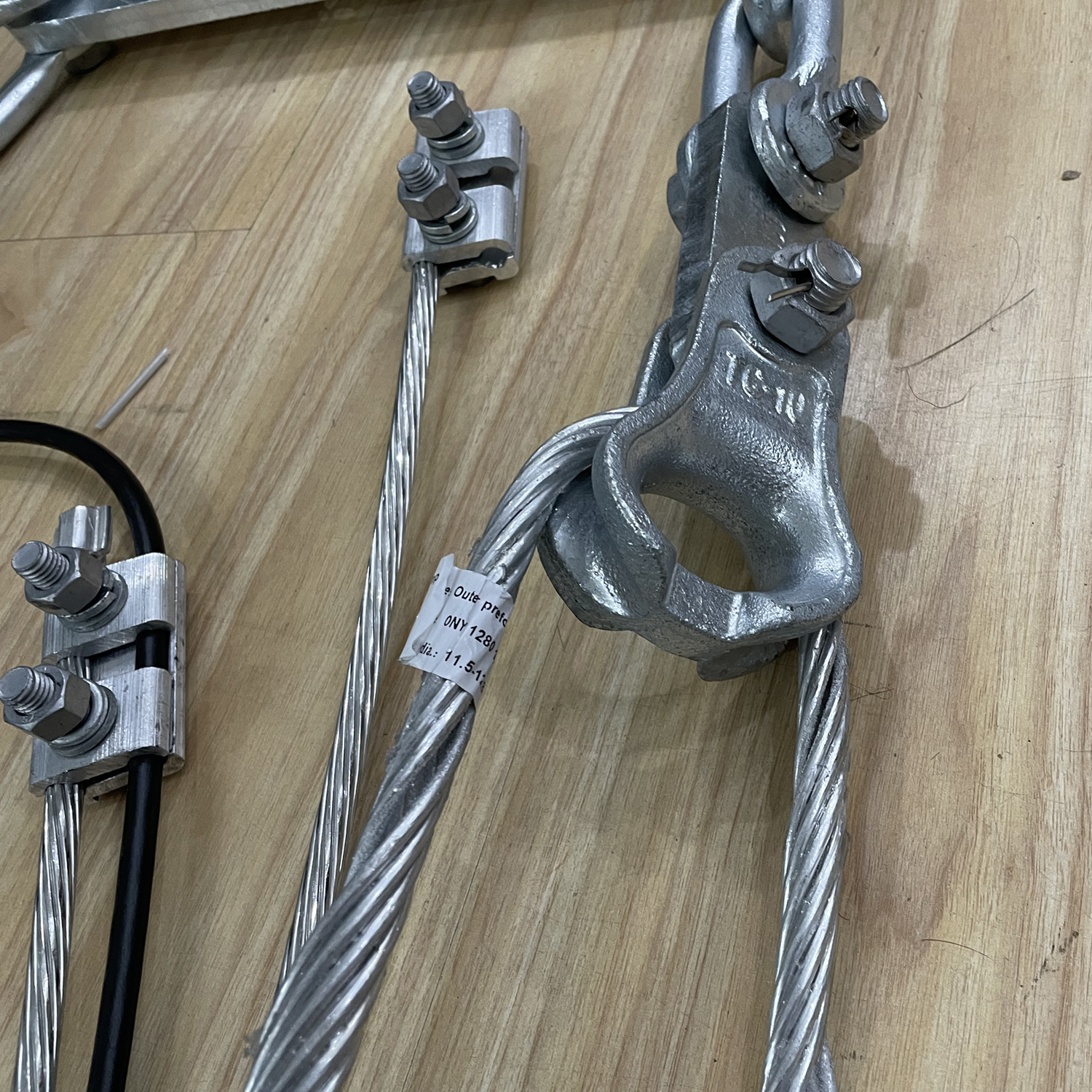

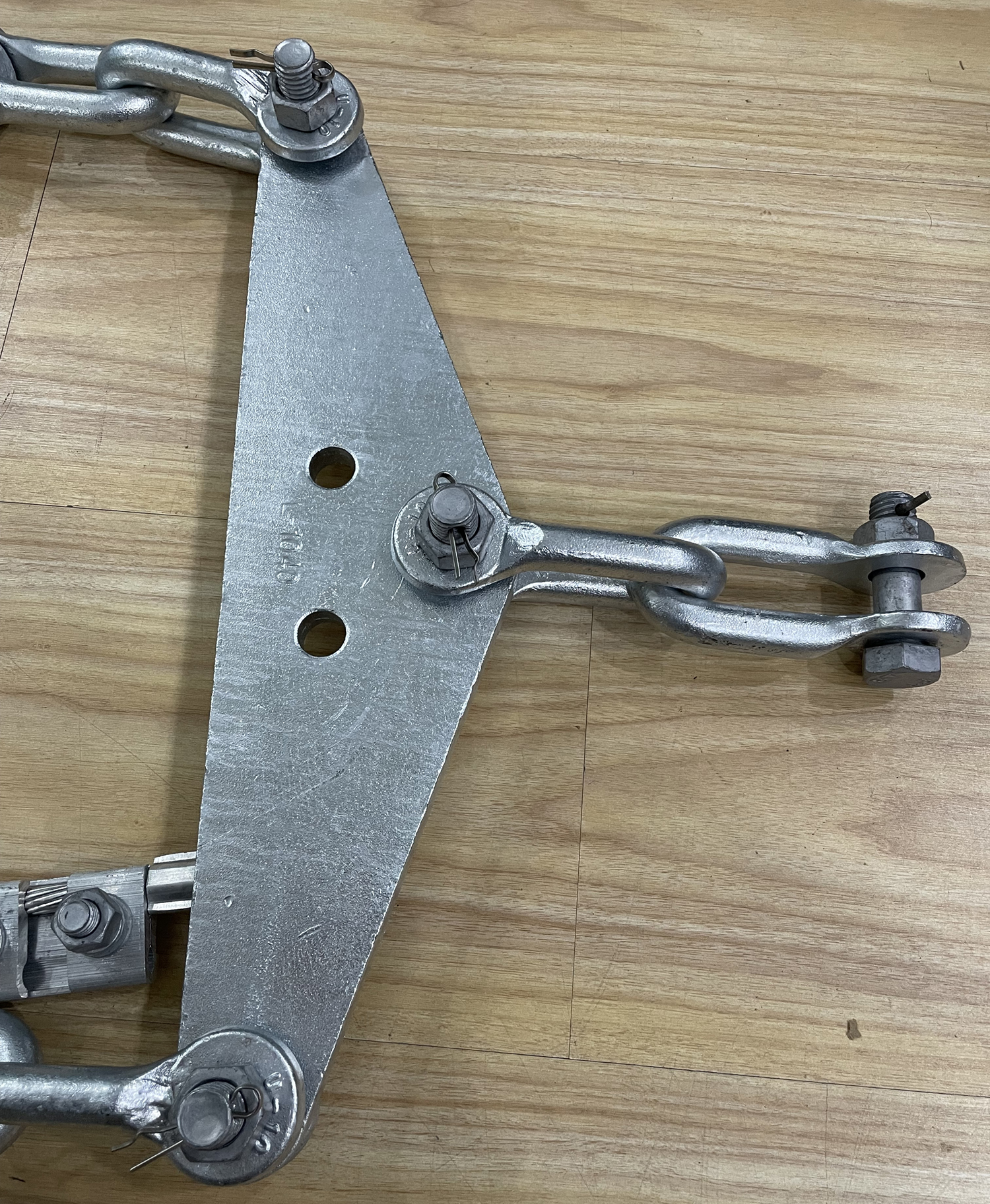

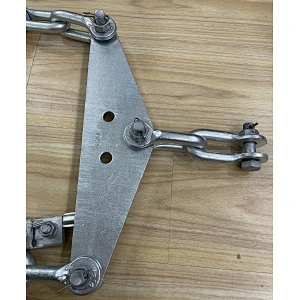

| 3 | THIMBLE | TC-10 | GALV.STEEL | 100kN |
| 4 | PROLATE PLATES | PD-10 | GALV.STEEL | 100kN |
| 5 | BOW SHACKLE | U-10 | GALV.STEEL | 100kN |
| 6 | EXTENSION RING | PH-10 | GALV.STEEL | 100kN |
| 7 | TRIANGLE YOKE PLATES | L-1040 | GALV.STEEL | 100kN |

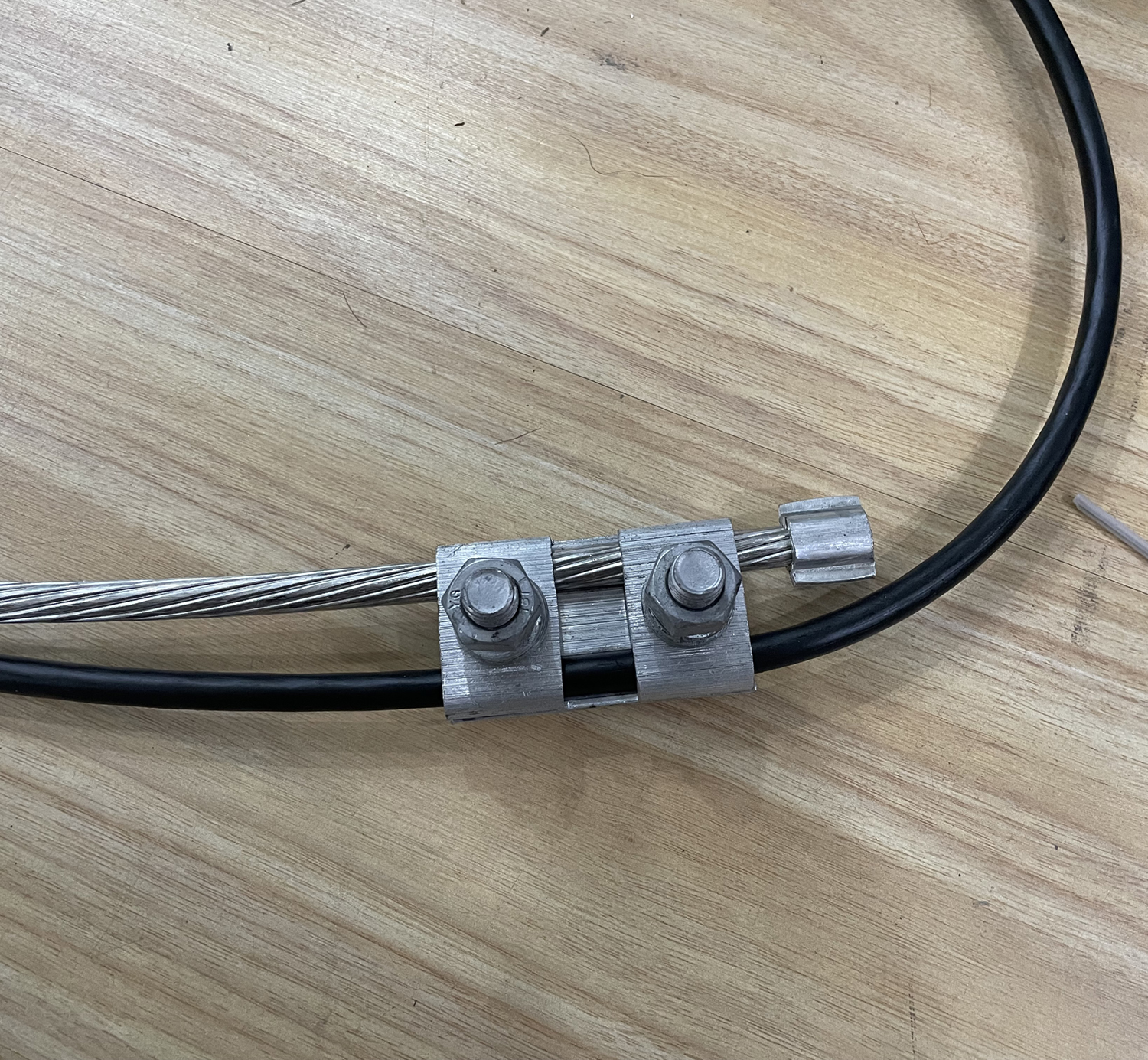

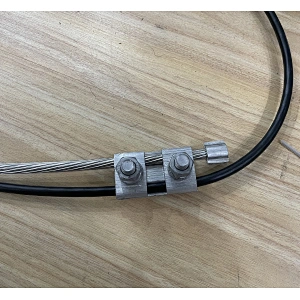

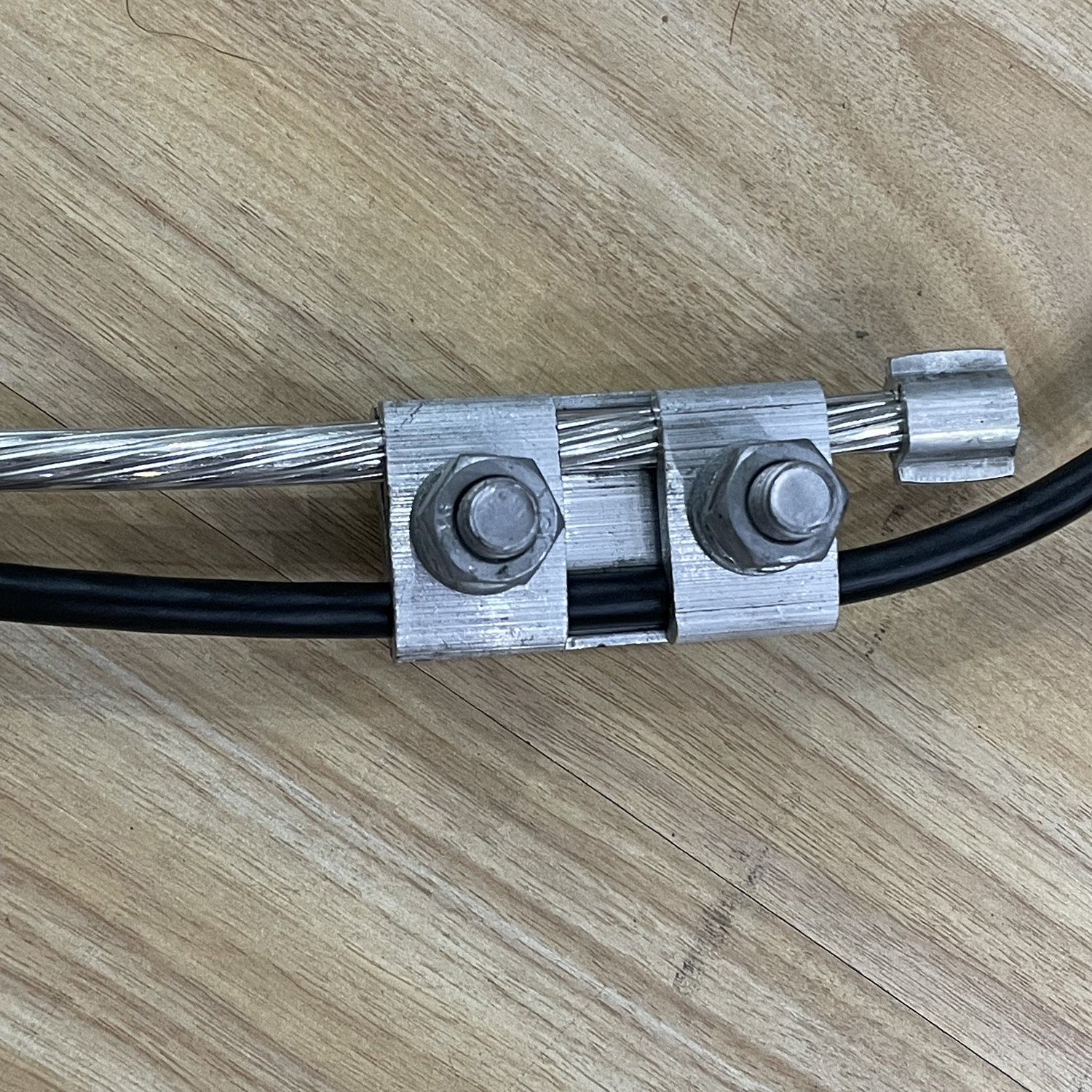

| 8 | GROOVE CLAMP | JB-1 | AL ALLOY | / |
| 9 | GROUND WIRE | JDX70-2000 | AL ALLOY | / |
