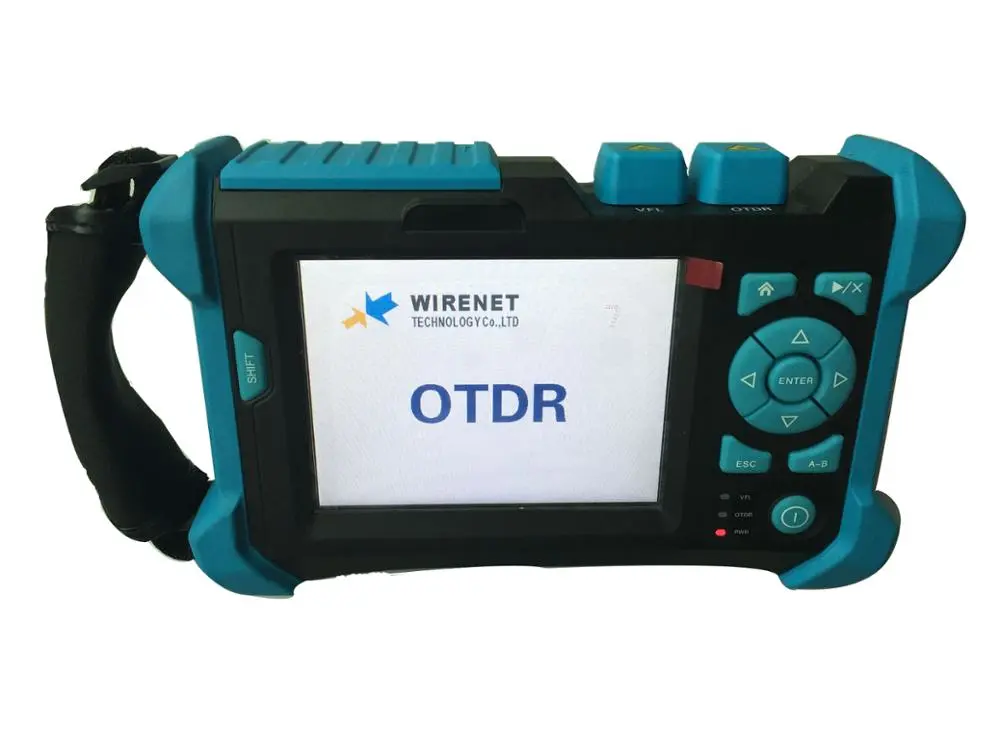

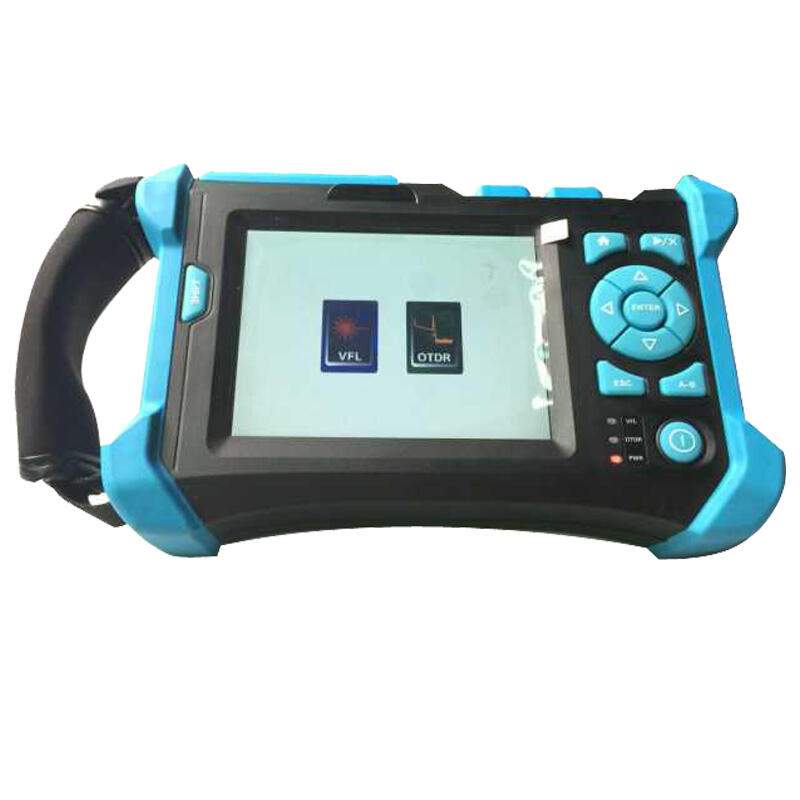

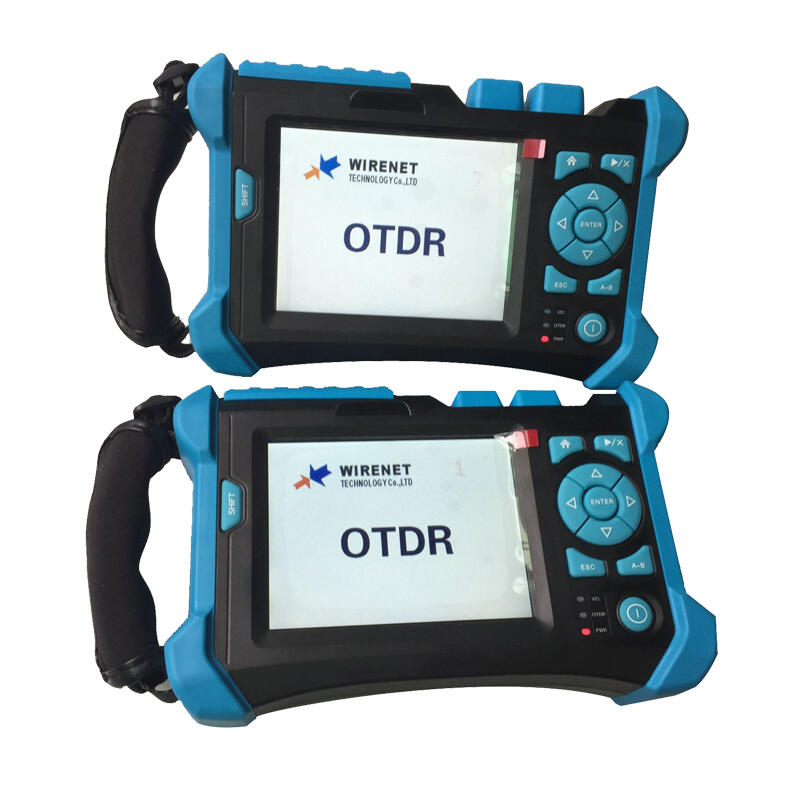

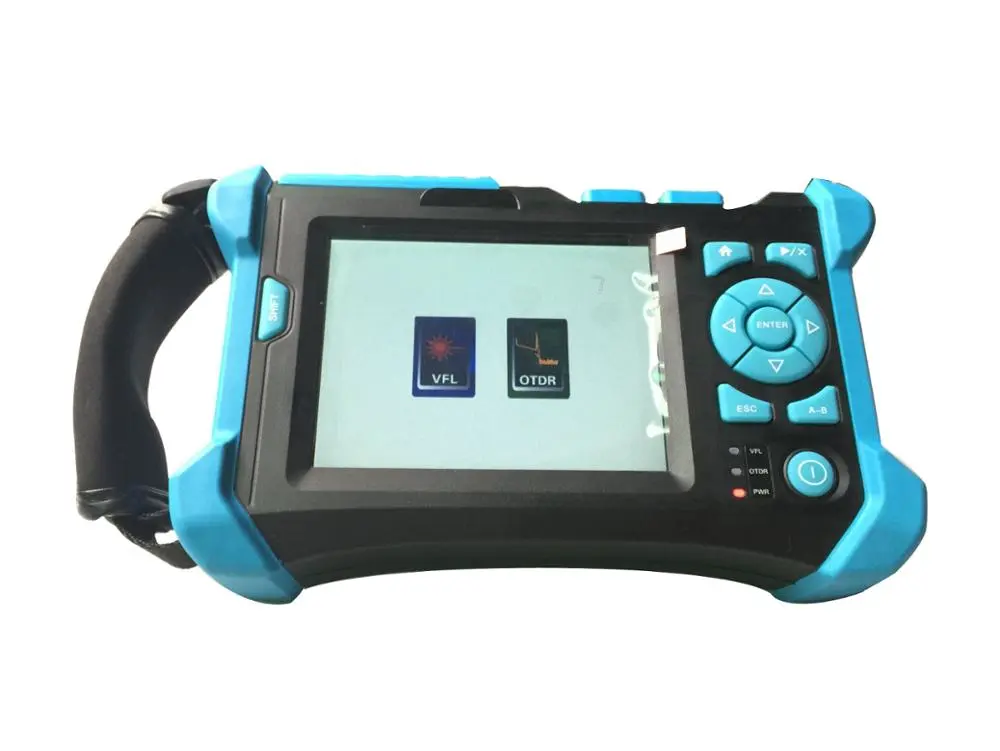

Easy operating 120km singlemode mini otdr
Features:
5.6-Inch outdoor-enhanced touchscreen, 7.4V/4.4Ah Lithium battery
EventDead zone as lower as 1.5meter
Combined multi dynamic range and wavelengths
Muti measurement mode, support Touching LCD and pressing keys
Warning function could prevent OTDR module from being damaged by optical signal in fiber
Realtime measuring function, convenient to monitor the splicing process

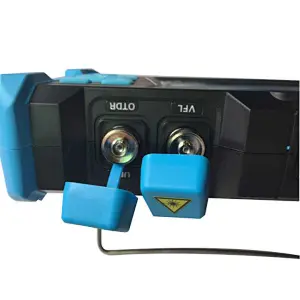

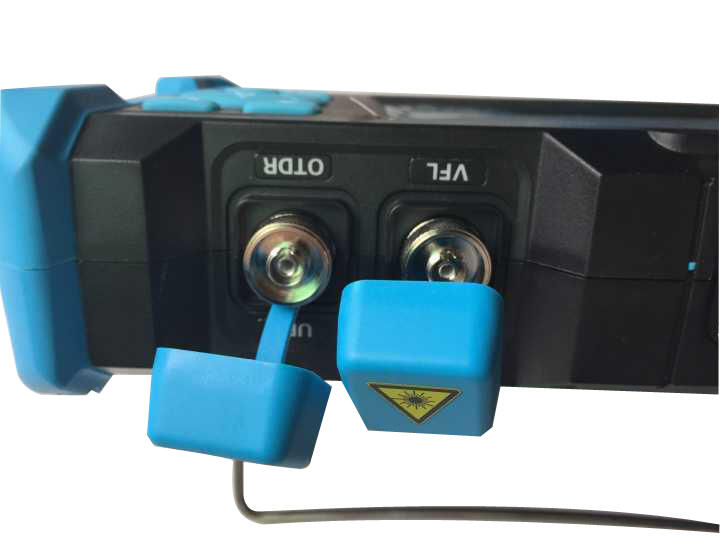

Integrated 10mw Visual Fault Locator, test 10km fault locator
SupportEnglish/ Chinese input, adopts friendly input interface, totally simulate the computer keyboard input
Integrated with 8GB internal memory, more than 80,000 groups curve storage

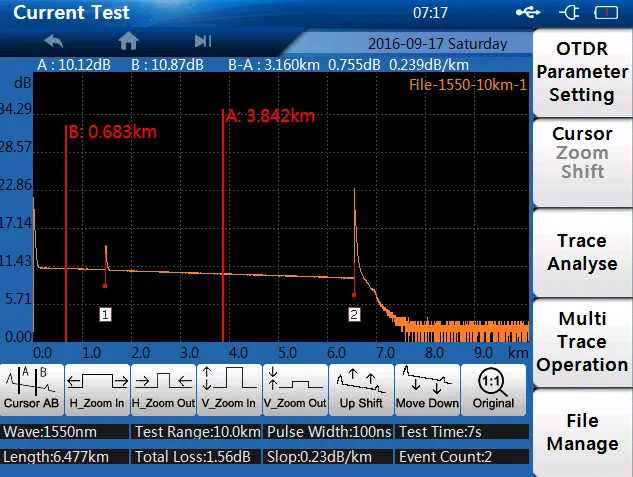

Test curve of typical events as below:
Precision judgment of fiber faults; splicing posit and connector terminal;
Precision measurement of test distance and the fiber loss
Contracted design style ,lively graphical interface, easy operation and easy analysis of various events
Measure the length of whole fiber; length between two points, as well as the distance, loss and attenuation coefficient etc
Detailed description of fiber loss distribution curve and the events
Technical specifications:
Pulse Width | (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs : (MM 850/1300NM)5ns,10ns,20ns,50ns,100ns,500ns,1us | |
Distance Range | (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,(MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km | |
Sampling Resolution | Minimum 0.05m | |
Sampling Point | 128,000 | |
Linearity | ≤0.05dB/dB | |
Loss Threshold | 0.01dB | |
Loss Resolution | 0.001dB | |
Distance Resolution | 0.01m | |
Distance Accuracy | ±(1m+measuring distance×3×10 +sampling resolution) | |
Data Storage | 20000 groups of curve | |
VFL | 10mW,CW/2Hz | |

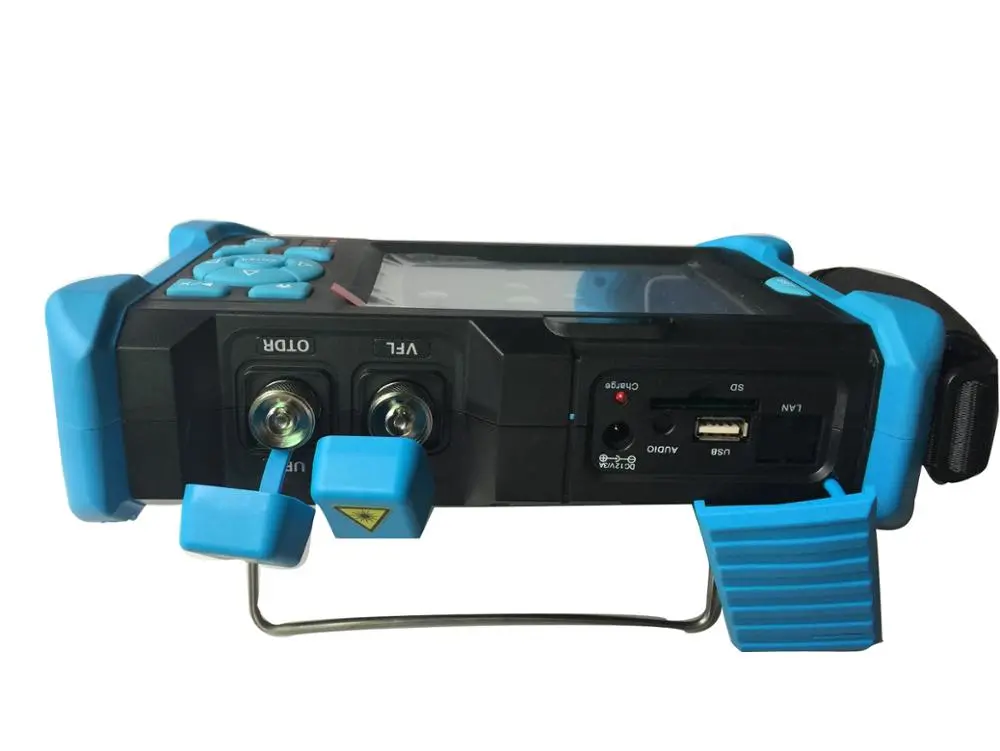

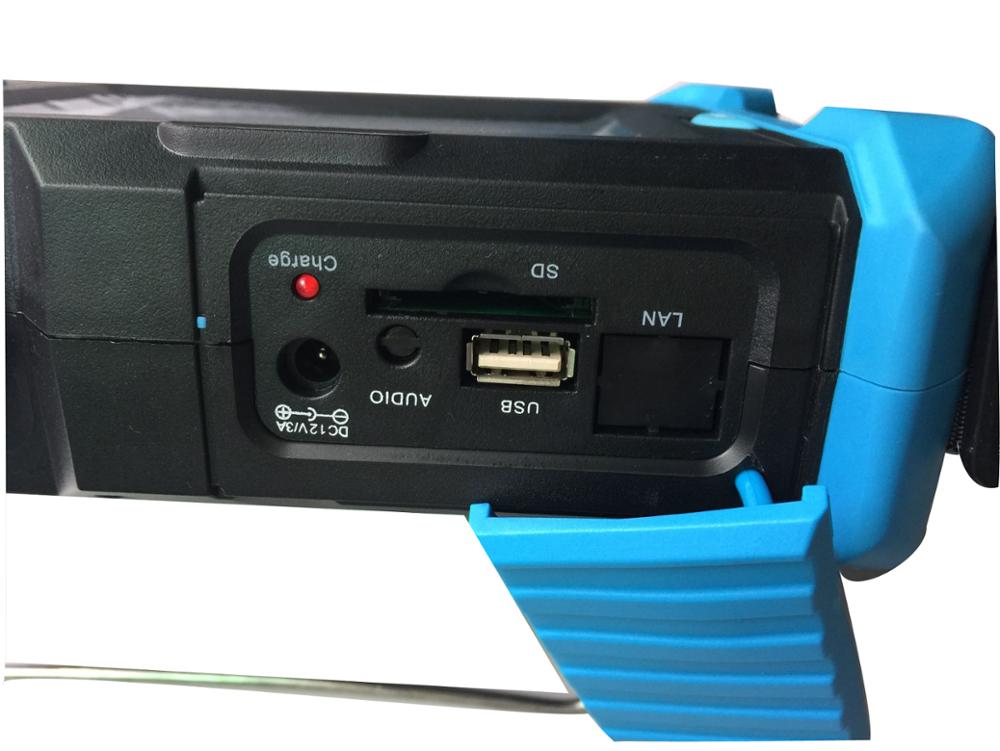

Interface | 3 USB ports(Type A×2,Type B×1) | |
Display | 5.6 inch TFT-LCD, Touching screen | |
Battery | 7.4V/4.4Ah lithium battery , support 8 hours continuous working | |
Working conditions | Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew) | |
Dimensions/Weight | 253×168×73.5mm / 1.5kg(include battery) | |
Packing list | Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton | |
Picture:
Ordering Information:
| Type | Testing wavelength | Dynamic range | Event/Attenuation dead-zone |
| WT305A | 1310/1550nm | 30/28dB | 0.8/4m |
| WT305B | 1310/1550nm | 32/30dB | 0.8/4m |
| WT305MM | 850/1300nm | 19/21dB | 1.2/ |
Type:
WT-TR 600 - MV 10 A = 850/1300 + VFL ; 20/18 dB
WT-TR 600 - SV 20 A = 1310/15500 + VFL ; 32/30 dB
WT-TR 600 - SV 20 B = 1310/1550 + VFL ; 34/32 dB
WT-TR 600 - SV 20 C = 1310/1550 + VFL ; 38/36 dB
WT-TR 600 - SV 30 A = 1310/1490/1550 + VFL ; 32/30/30 dB
WT-TR 600 - SV 30 C = 1310/1490/1550 + VFL ; 36/34/34 dB
WT-TR 600 - SS 24 A = 1310/1550 + 1625 ( without filter ) + VFL ; 32/30/30 dB
WT-TR 600 - SS 24 AF = 1310/1550 + 1625 (with filter ) ; 32/30/30 dB
WT-TR 600 - SS 24 C = 1310/1550 + 1625 ( without filter ) + VFL ; 38/36/36 dB
WT-TR 600 - SS 24 CF = 1310/1550 + 1625 (with filter ) ; 38/36/34 dB
WT-TR 600 - SV 20D = 1310/1550 +VFL ; 42/40dB
