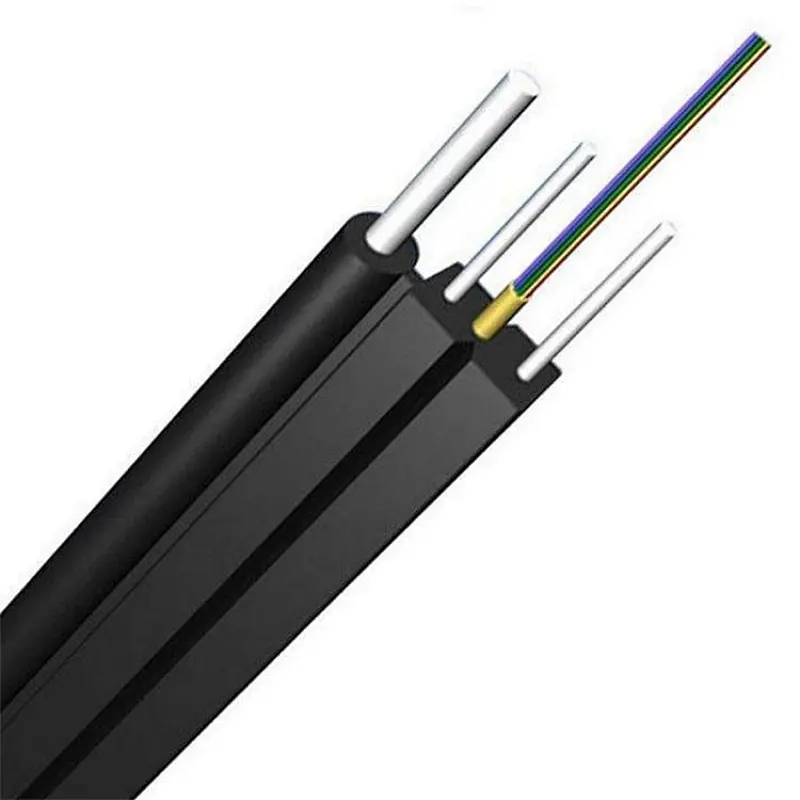

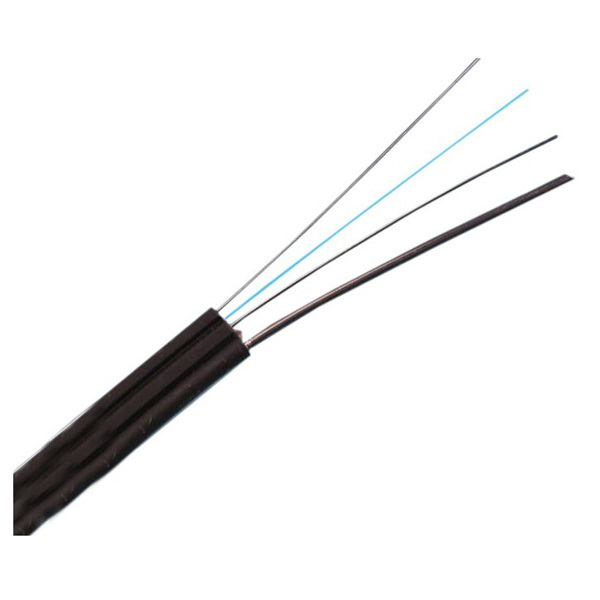

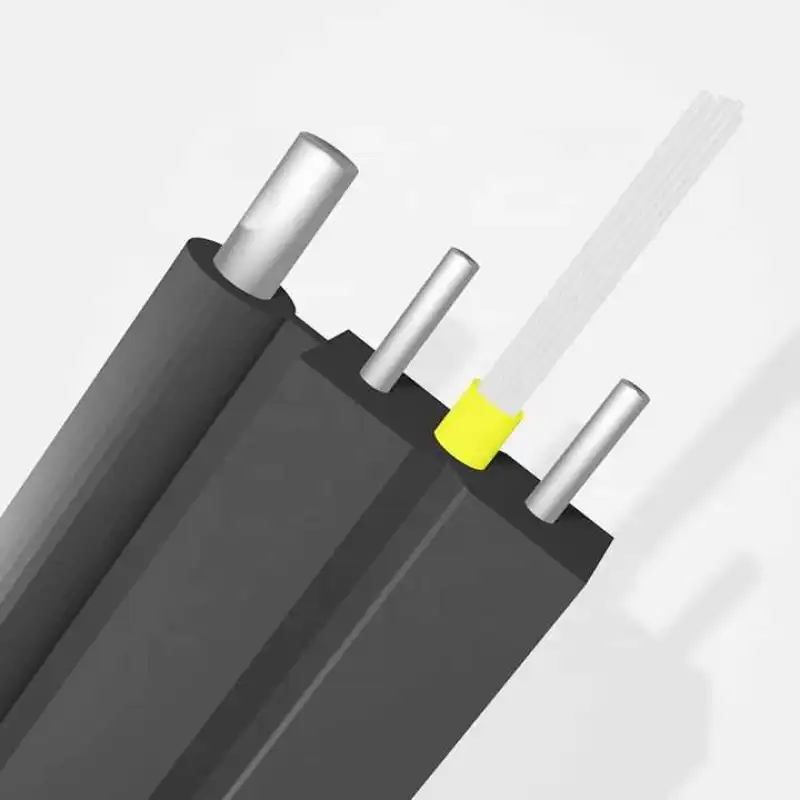

Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire
Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire

Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire

Model NO.
GJYXCH
Quantity:

Outdoor Jacket G652D GJYXCH LSZH FTTH Drop 12 Core Single Mode Fiber Optic Cable with Steel Wire

Lszh Fiber Optic Cable Gjyxch Ftth Cable Ftth Drop Cable G655 Fiber Optical Cable Gjyxch Drop


CableType		Outder Sheath      Diameter     Nominal
Weight(kg/km)

TensileStrength(N)		         Crush Load(N/100mm)BendingRadius(mm)
Short termLong termShort termLong termShort termLong term
GJYXCH1.8±0.2mm23.6kg600 300 2200100030D15D
             Storage/Working temperature                                                -20℃~+60℃


Features

1. Good mechanical and enviromental characteristic
2. Anti-UVcharateristics meet the requirements of relevant standards
3. The mechanical charateristics meet the requirements of relevant standards
4. Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
5. Meet various requirements of market and clients

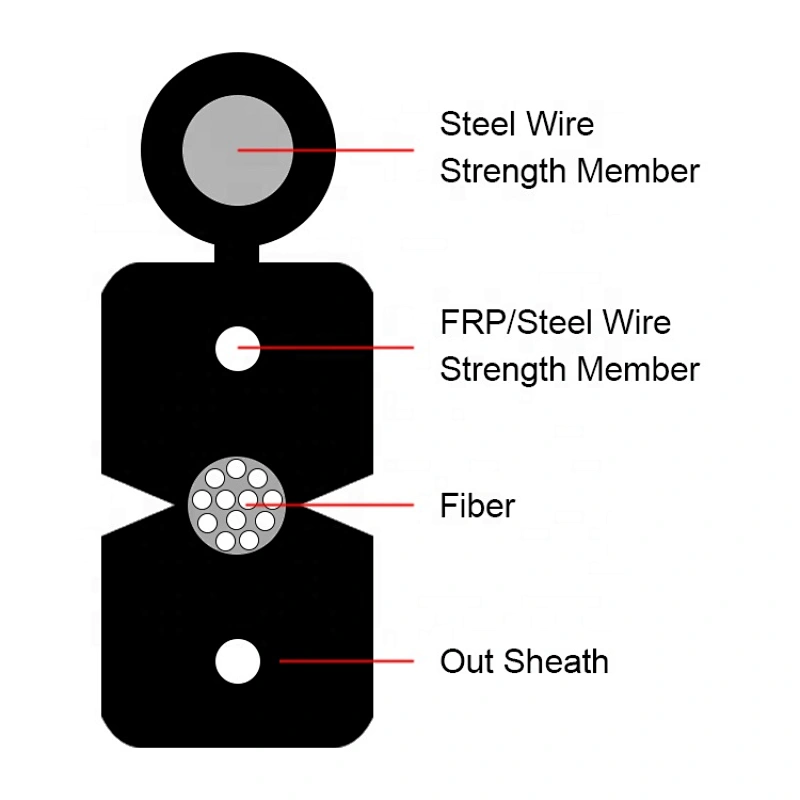

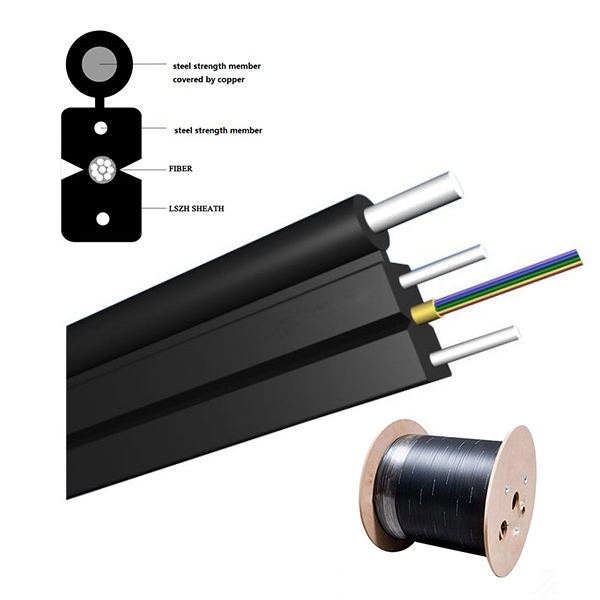

                                      Items
                                           Description
Number of fiber
6/8 /12 cores
Fiber type
g652d/g657a1/g657a2
Strength member
material
Steel wire/FRP/KFRP
diameter
2*(0.5)mm
Self support
Messenger wire
material
Steel wire
diameter
1.2mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.8(±0.1) mm × 6.3(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
35KG±1KG

Application
1.Adopted to outdoor level and vertical distribution.
2.Suitable for connect with communication equipment.
3.Long distance and local area network communication.
