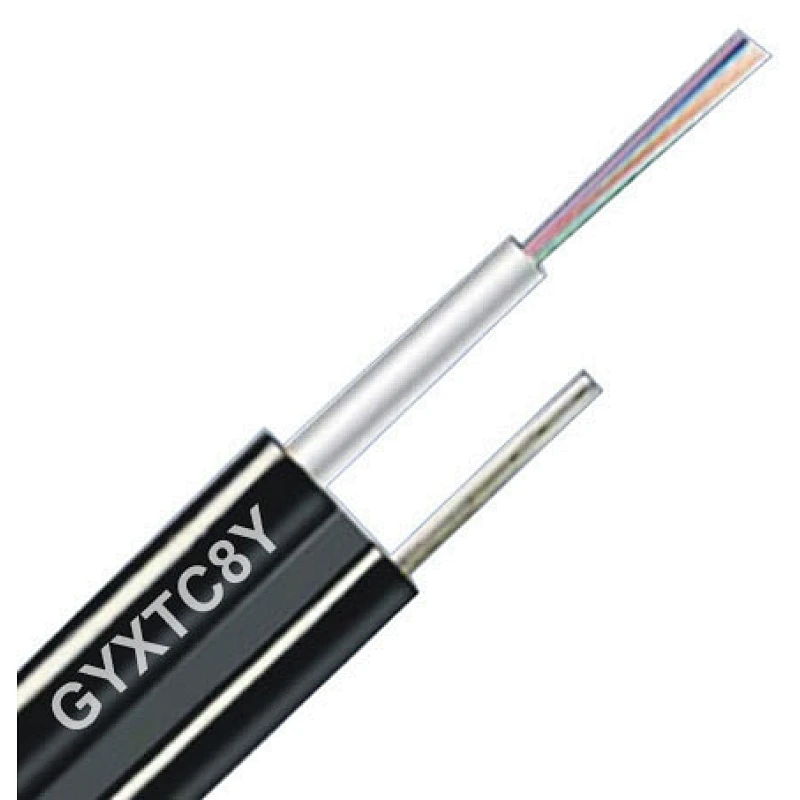

2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y
2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y
2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y
2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y
2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y

2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y

Model NO.
GYXTC8Y
Quantity:
2 Core Central Loose Tube Self-supporting Aerial Figure 8 Fiber Optical Cable GYXTC8Y
GYXTC8Y GYXTC8Y cable GYXTC8Y Fiber Optical Cable Figure 8 Fiber Optical Cable

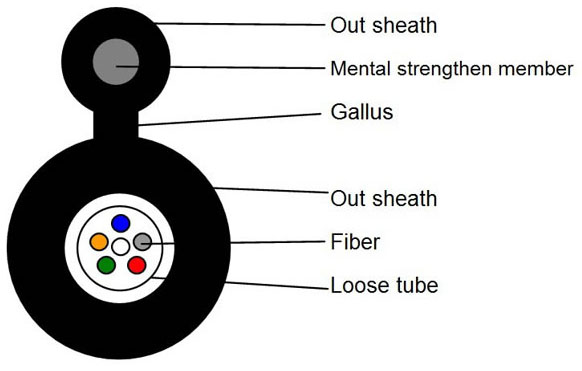

GYXTC8Y The optical fiber unit is positioned the center.Two prallel Fiber Reinforced (FRP)are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.
APL moisture barrier,finally extrusion PE sheathed cable.

Quick Details
Fiber count:2-12 core
Outer sheath diameter:3.2*6.5mm
Minimum bending radius:Short term 20D mm; longterm 10D mm
Minimum allowable tensile strength:Short term 1500N ; long term 600N
Strength number:Corrugated Steel

Characteristics:

  1. Stainless steel or gaivanized steel self-supporting.

  2. Excellet mechanical and environmental performance.

 Method of installation:

  1.  Direct burial preferred, other methods of installation are also available

 Operating temperature range:

      -40°C~+60°C



Cable

Count

Out

sheath

Diameter

Weight

Minimum

allowable

TensileStrength

(N)

Minimum

allowable

Crush Load

(N/100nm)

Minimum

Bending

Radius(MM)

Storage

Temperature

(MM)

(kg)

Short term

Long term

Short term

Long term

Short term

Long term

(°C)

2

3.2*6.5

54

1500

600

1500

600

20D

10D

-40+60



Application:
  1. Adopted to Outdoor distribution.
  2. Suitable for aerial duct and buried method.
  3. Long distance and local area network communication.
