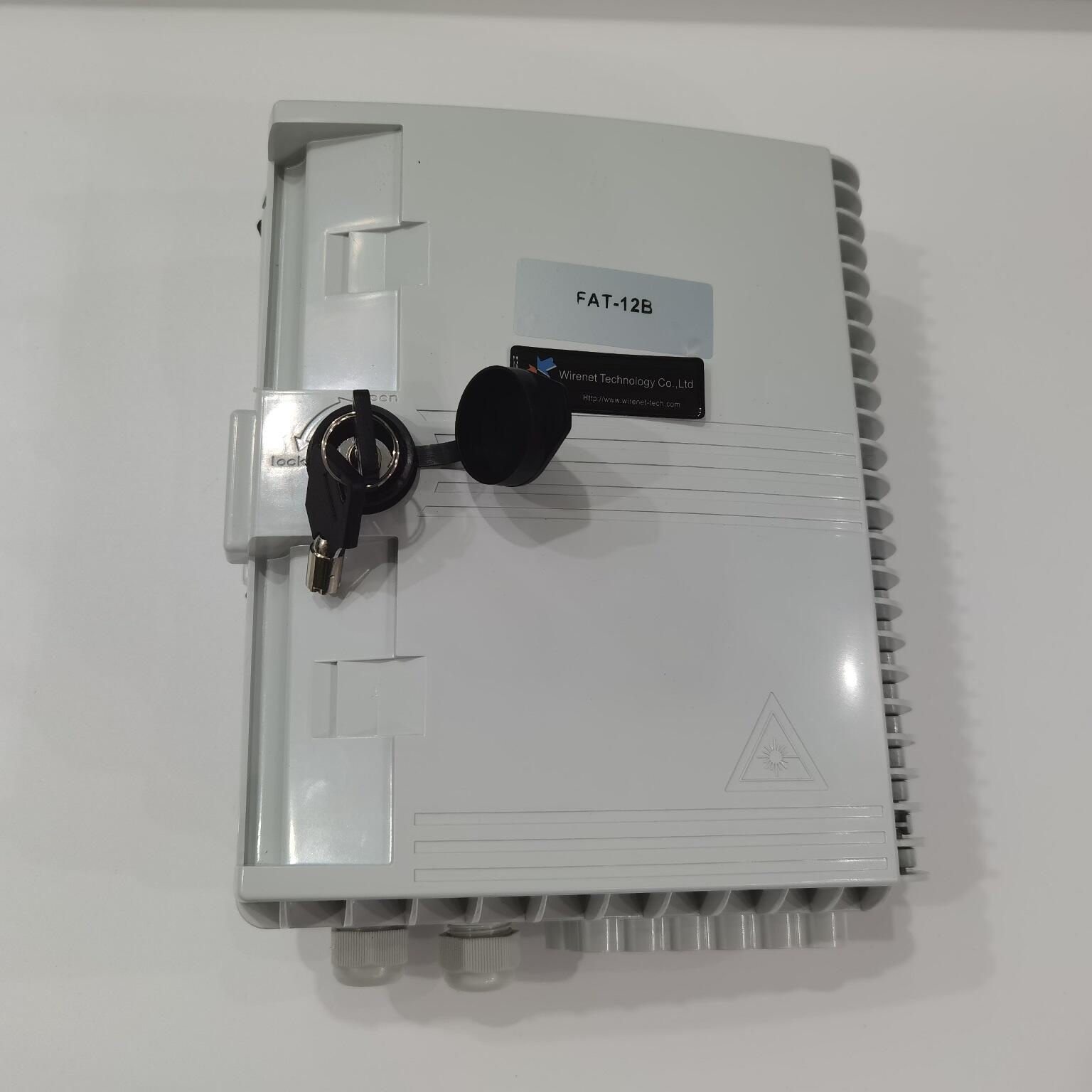

The distribution box can be connected to up to two optical cables to provide space for the distributor and 12 fuses, with 12 SC adapters for outdoor operation.In the FTTx network, it is a very cost-effective product.
Structure and characteristics
- Joints and jumpers are easy to expand and maintain using a separate structure;
- High quality plastic, beautiful appearance;

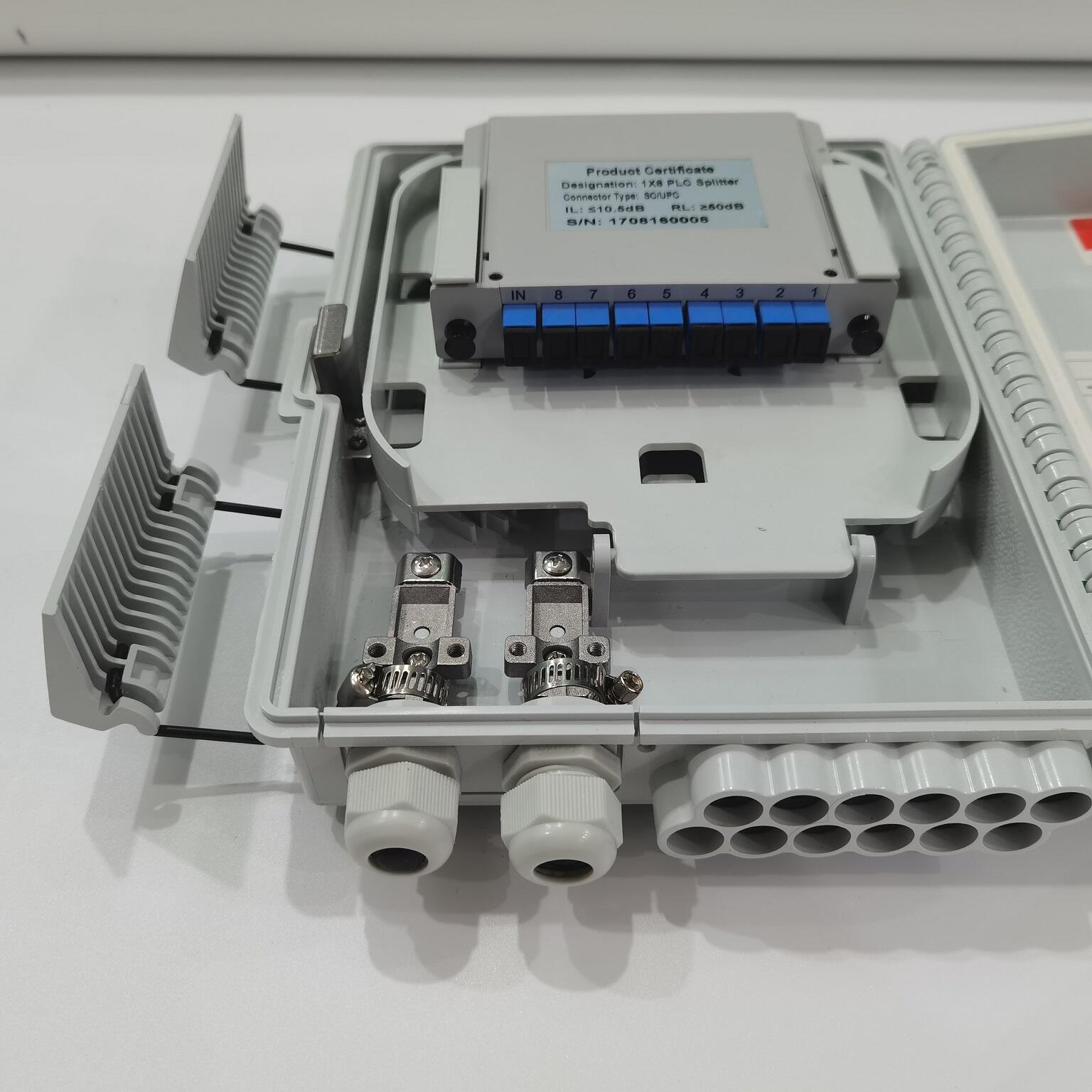

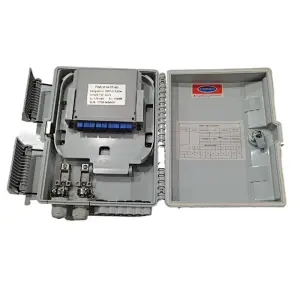

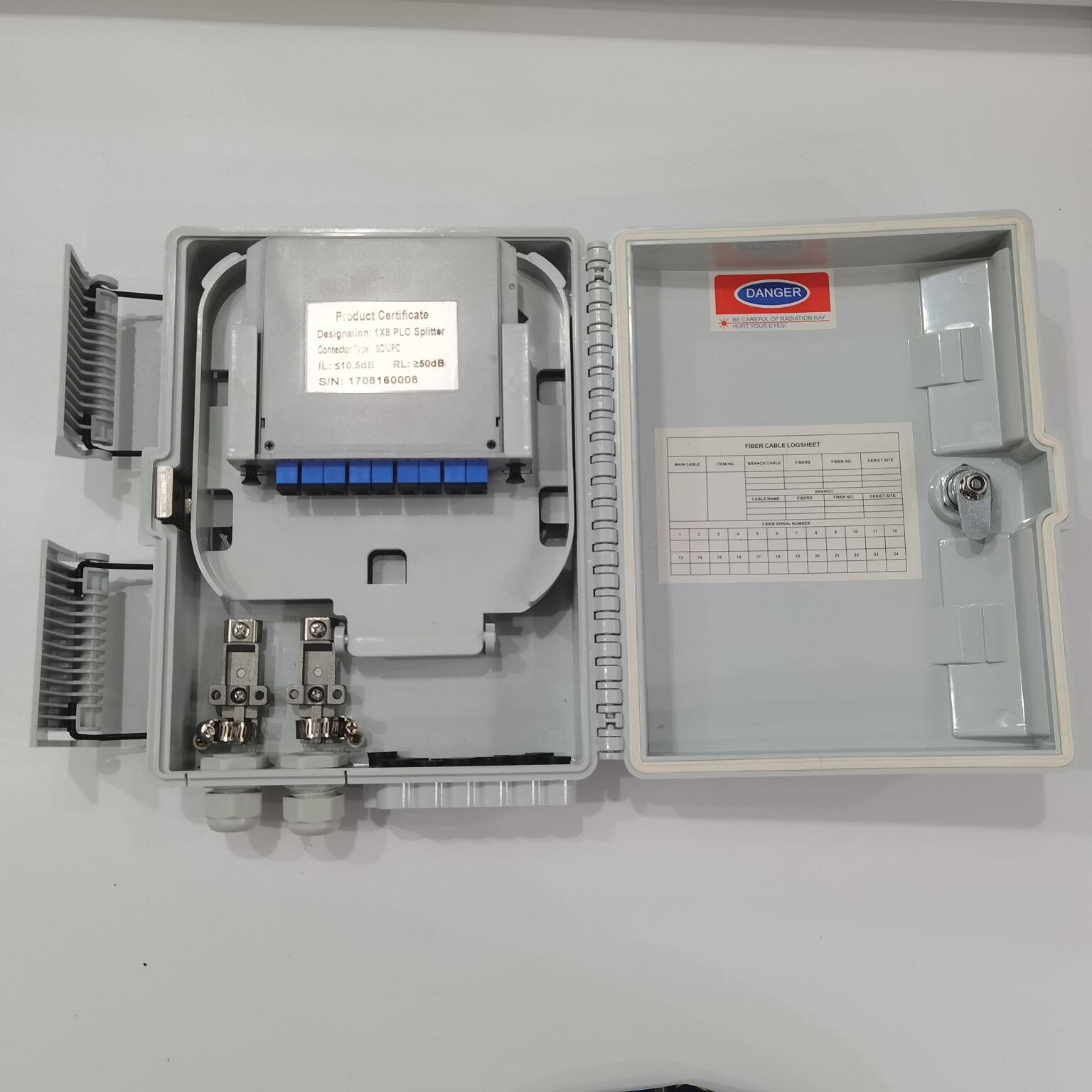

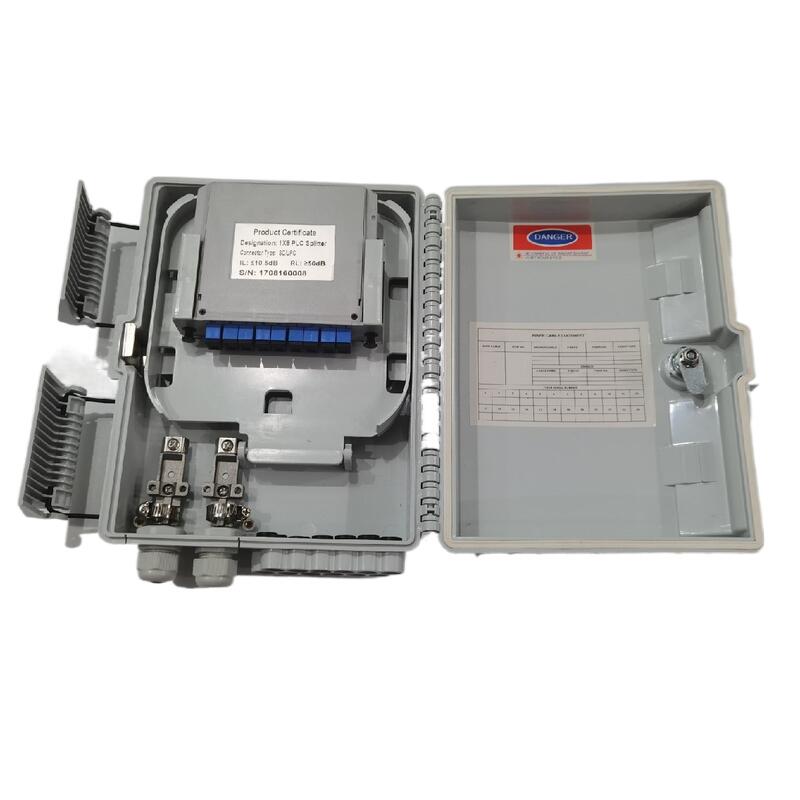

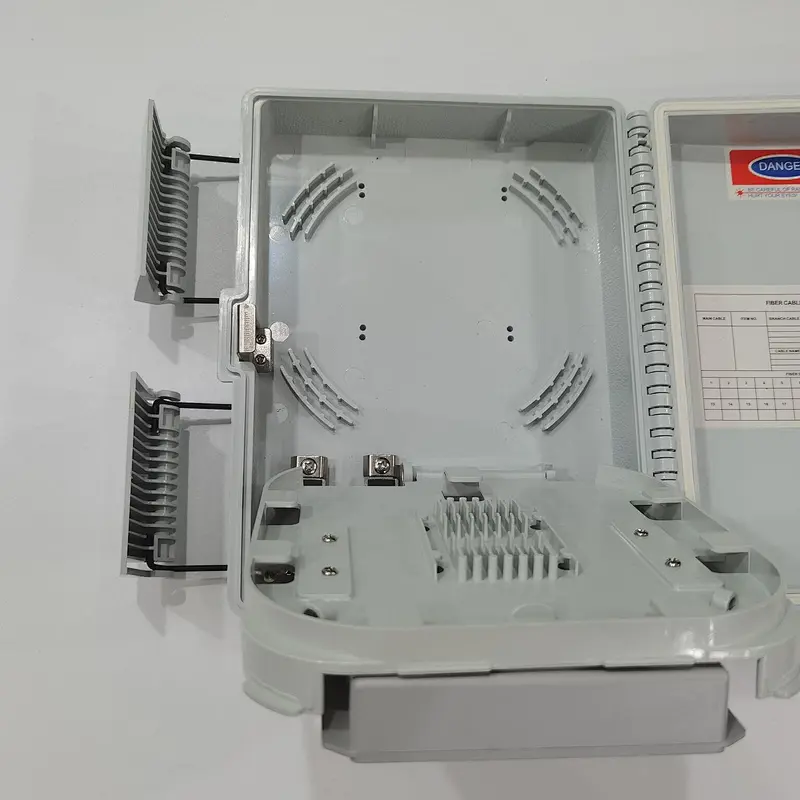

- Internal flip structure, easy to maintain;
- Can install 12 SC adapters;

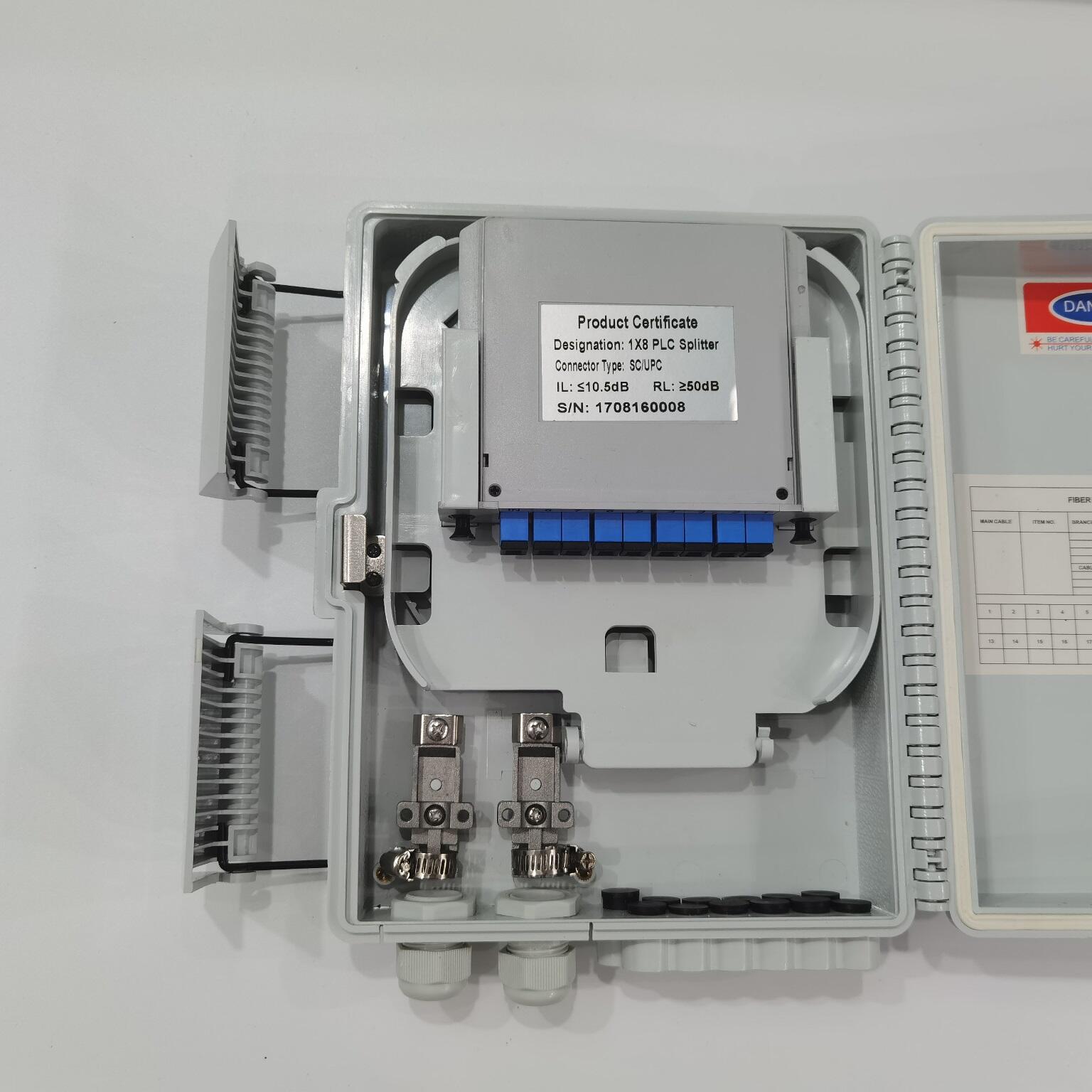

- Can install mini splitter, insert splitter;
- 12 leather wires can be used;
- Protection level: IP65
| Dimensions (length * width * height) | 270mm*196mm*90mm |
| Weight | 1.1 kg |
| Adapter capacity | 12 |
| Cable inlet diameter | 16mm |
| Cable inlet/outlet quantity | 2/12 |
| Accessories | Adapter, tail fiber, heat shrinkable tube, differentiator |
