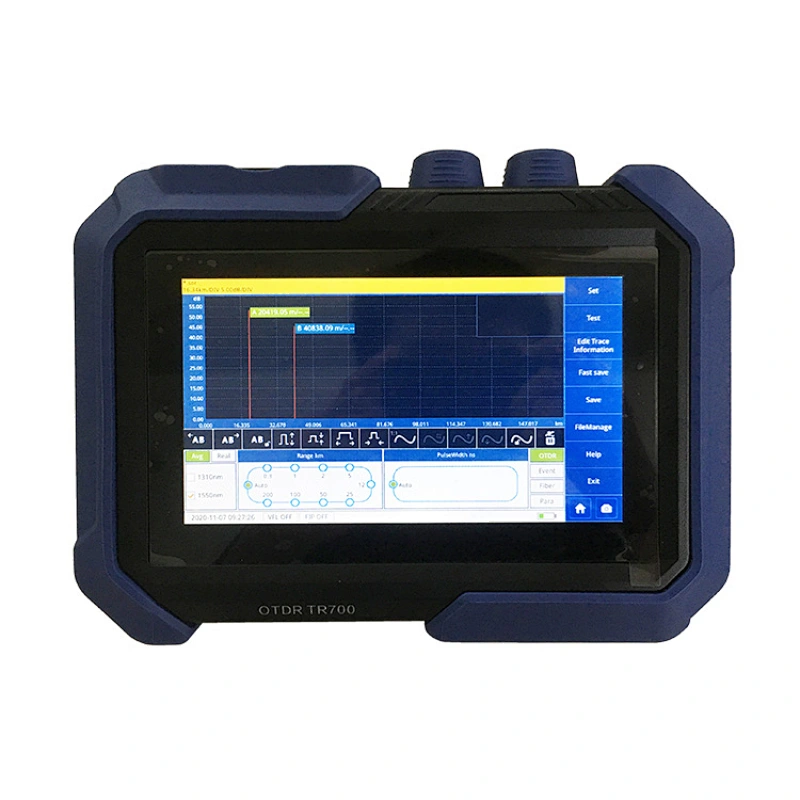

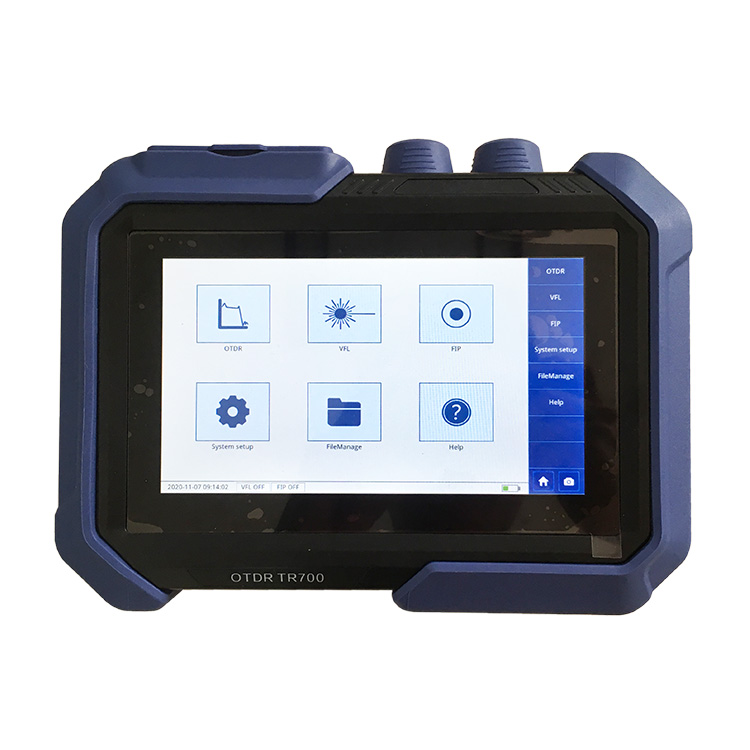

OTDR WT700
OTDR WT700

OTDR WT700

Model NO.
WT700
Quantity:

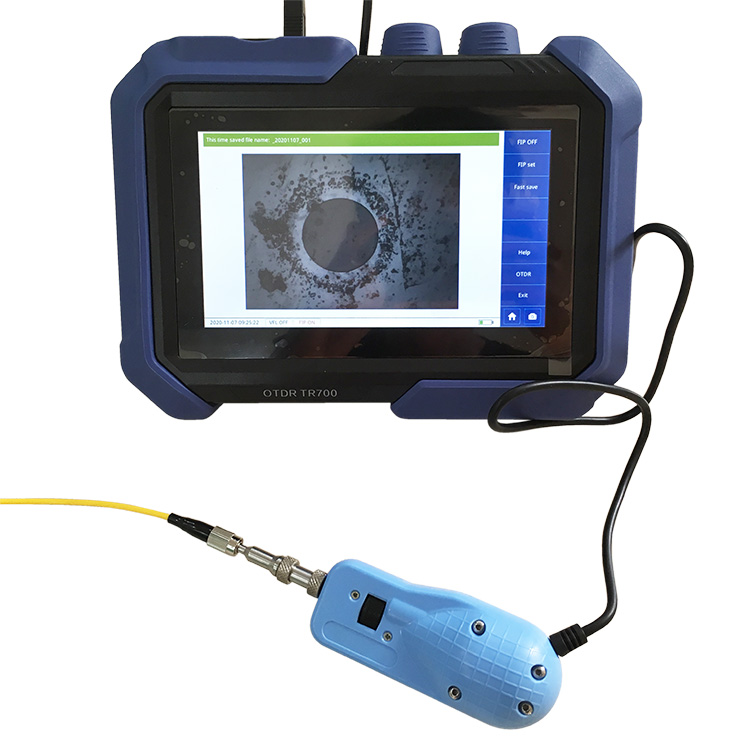

It is a high performance, multi-functional test instrument with excellent test performance, which can support VFL, OPM, fiber optic microscope (FIP) and other test modules.This product is mainly used for measuring the length, transmission loss, joint loss and other optical fiber physical properties of optical fiber and cable. It is widely used in FTTH network, local optical fiber network, urban optical fiber network, PON network construction, deployment, maintenance, certification and optical communication teaching and research.

It has novel, bright and durable appearance.Double operation with touch and button, easy and intuitive operation style;The optimized parameter configuration can simplify the test operation to the maximum extent.The product has a rich external interface;The whole machine adopts the intelligent power management mode, and the large capacity lithium battery makes the working time of the whole machine more than 10 hours.


Features

  1. 7"full touch screen with high-brightness and color LCD,it supports multiple touch modes.

  2. One-touch operation for multi-wavelength measurement, and intelligent analysis on test results.

  3. Linux operation system provides local upgrading service and multi-language operation

    interface.

  4. It is small-sized and portable (1.5kg), solid and durable.

  5. Featured with long battery life (>10h) and 16G capability, it is suitable for long-term field operation.

  6. It adopts IP65 dustproof and waterproof technology, suitable for diversified environments.

Specification

Wavelength (nm)
850/1300/1310/1550
Dynamic range (dB)
20/18/32/30
Pulse width (ns)
5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480
Screen Display
7"touch screen 1024*600
Event dead zone (m)
≤10m(MM), ≤4m(SM),
Attenuation dead zone (m)
≤18m(MM),≤9m(SM)
Linearity (dB/dB)
±0.05 dB/ dB
Loss threshold (dB)
0.05
Loss resolution ratio (dB)
0.01
Sampling resolution ratio (m)
0.125 to 8
Sampling point
64 K
Distance uncertainty (m)
±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km)
0.3 to200
Typical real-time refreshing duration (s)
1s
Memory capacity of trace
SD Card (16G), > 10000 pieces
Duration of measurement
Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
Dimension (H×W×D)
234×65×177 mm
Weight
1.3kg
Temperature
Operation temperature -10℃ to 50℃, storage temperature -40℃ to 70℃
Relative humidity
0% to 95% (non condensation)
Power supply
Lithium battery; continuing working duration ≥ 24 hours
Warranty period
2 years
