OTDR WT-323
OTDR WT-323
OTDR WT-323

OTDR WT-323

Model NO.
WT-323
Quantity:

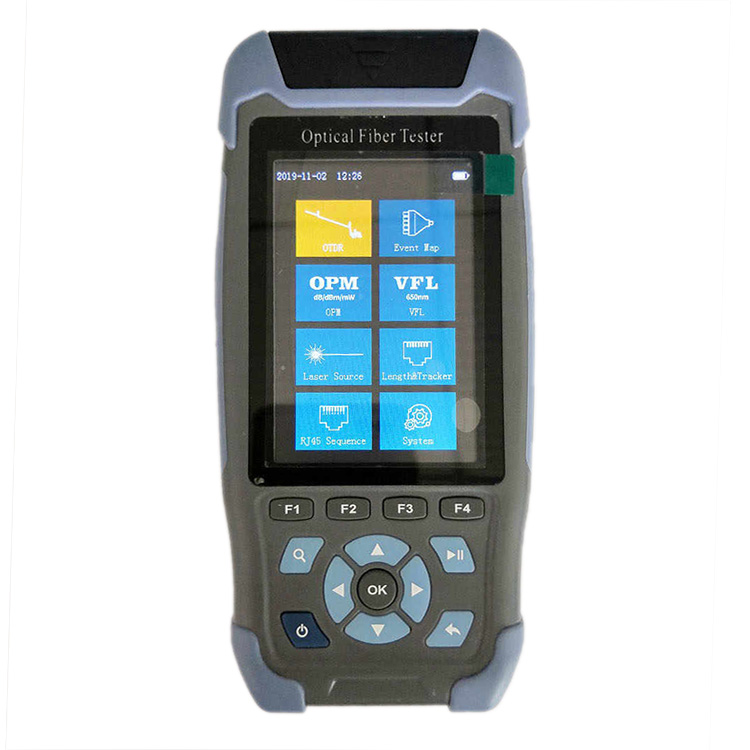

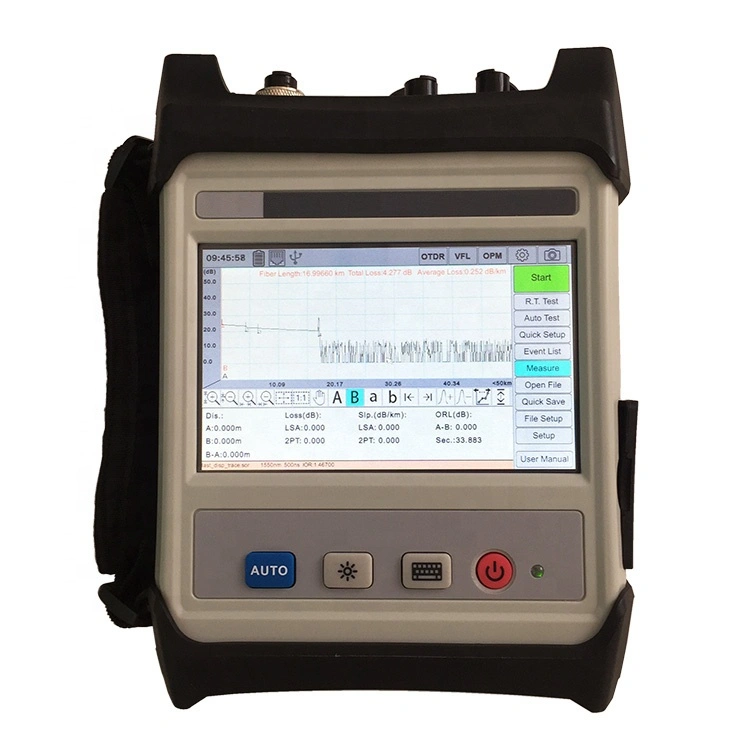

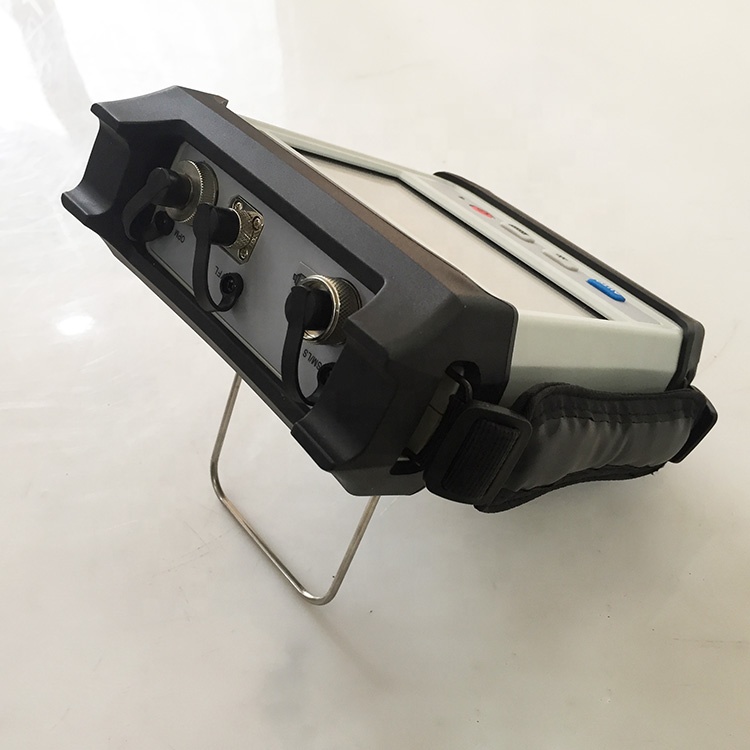

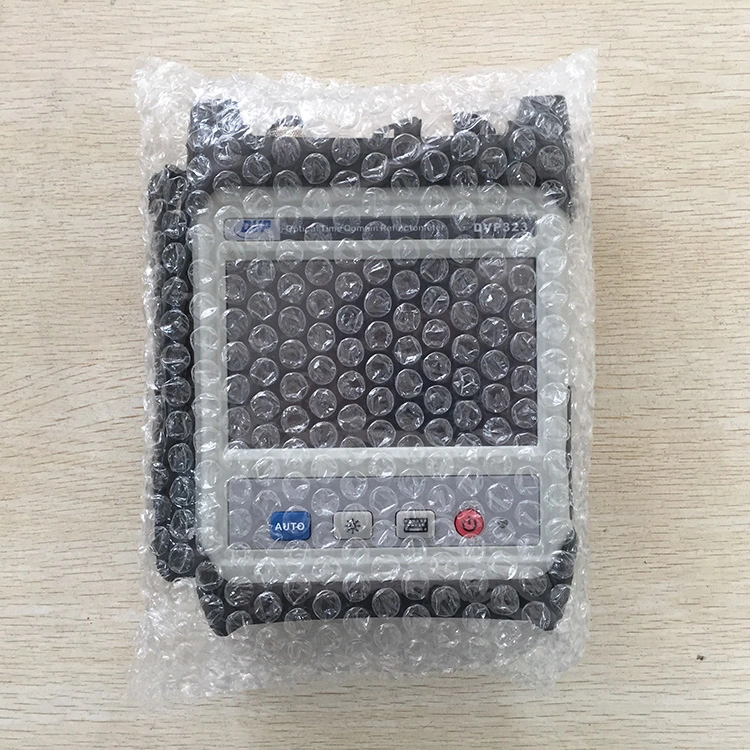

Handheld Optical Time Domain Reflectometer OTDR 1310 1550nmHandheld Optical Time Domain Reflectometer OTDR 1310 1550nm

Handheld Optical Time Domain Reflectometer OTDR 1310 1550nmHandheld Optical Time Domain Reflectometer OTDR 1310 1550nm

Features

  1. 5 inch touch screen, 800×480 high dot array resolution
  2. Compact structure design, lighter, thinner and smaller
  3. Exceptional short distance performance; minimum 0.8m event dead zone; minimum 4m attenuation dead zone
  4. Support 28dB to 36dB dynamic range of various application demands
  5. Convenient and fast UE design
  6. Support OPM and VFL
  7. Complete data interfaces such as LAN, USB and so on

Specification

Model

Wavelength(nm)

Dynamic Range(dB)

Event Dead Zone (m)

Attenuation Dead Zone (m)

DVP323

1310±20/1550±20

34/32

<3m

<25m

Distance range(Km)

5m-160km

Pulse width(ns)

5ns~20μs(5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs)

Measurement time

user-defined(smart link),with real-time measurement function

Distance accuracy(m)

±(1m +0.001%×range + sampling resolution)

Attenuation accuracy

±0.05dB/dB

Loss limit(dB)

0.01dB

Loss resolution(dB)

0.001dB

Sampling resolution(m)

0.1m

Sampling points

128000

Data storage

3000 items

LCD type

5 inch TFT colorized LCD

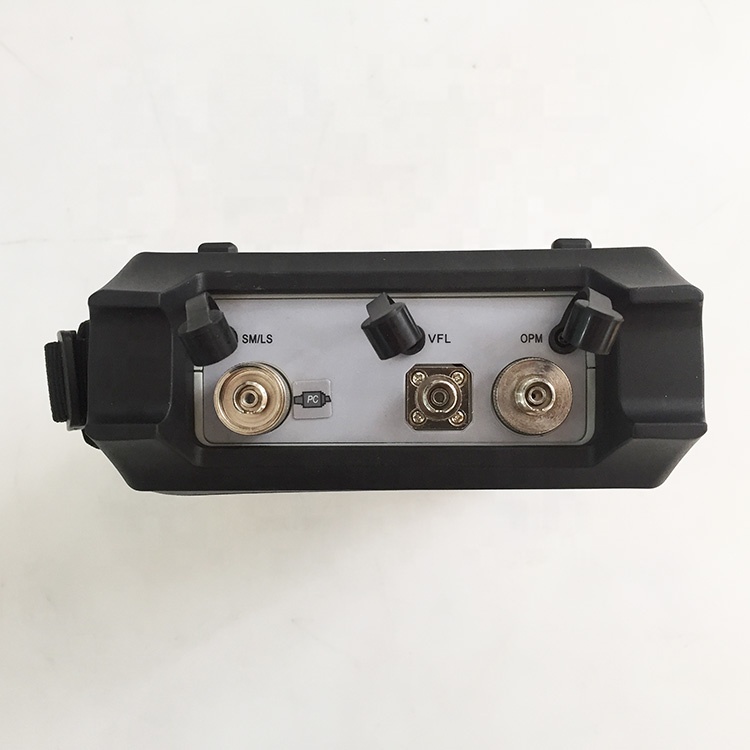

Laser adapter

FC/PC, SC/PC(option)

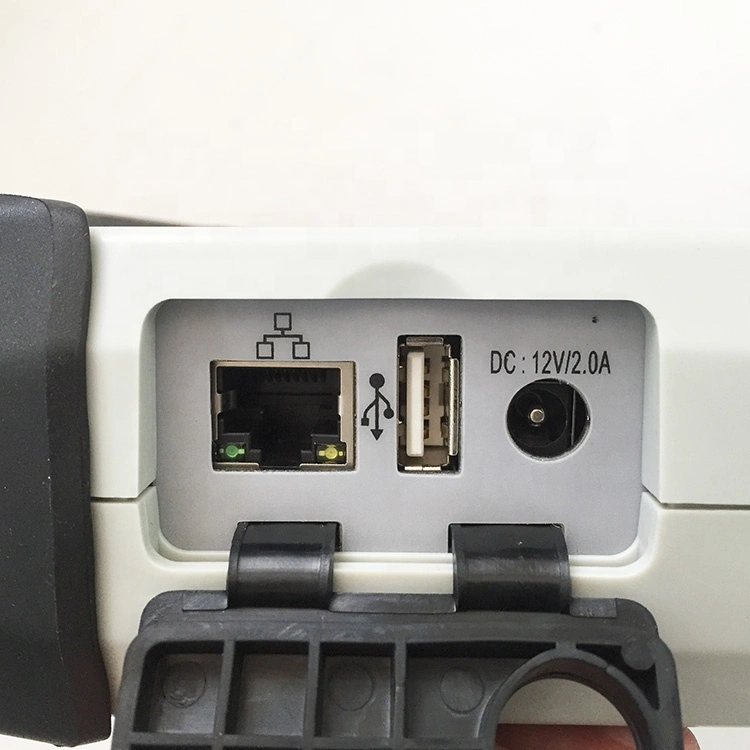

Interface

USB

Battery

built-in rechargeable Li-ion battery charging time8 hours

Power

AC input : 100~240V , 600mA , 50/60Hz DC output : 12.0V , 2A

Operating temperature

0℃~40℃

storage temperature

-20℃~70℃

relative humidity

<80%

weight

<1kg

dimensions (mm)

200*126*62mm
