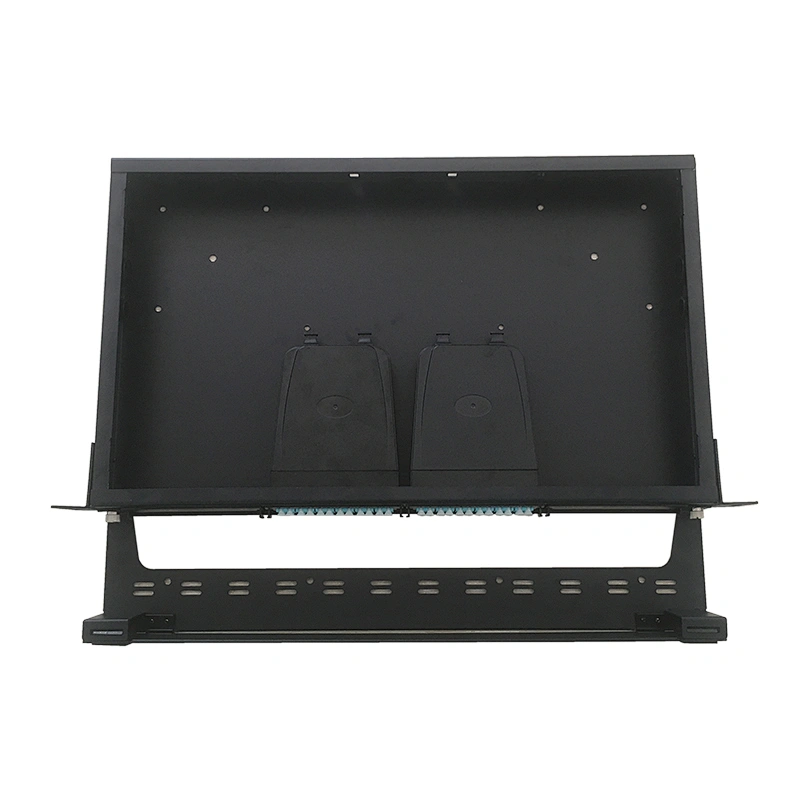

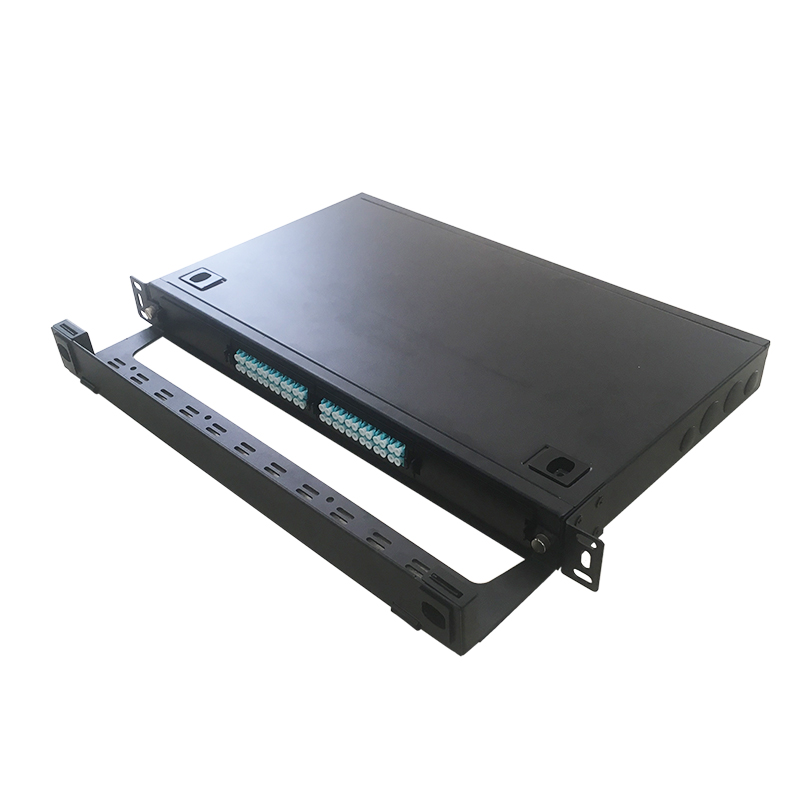

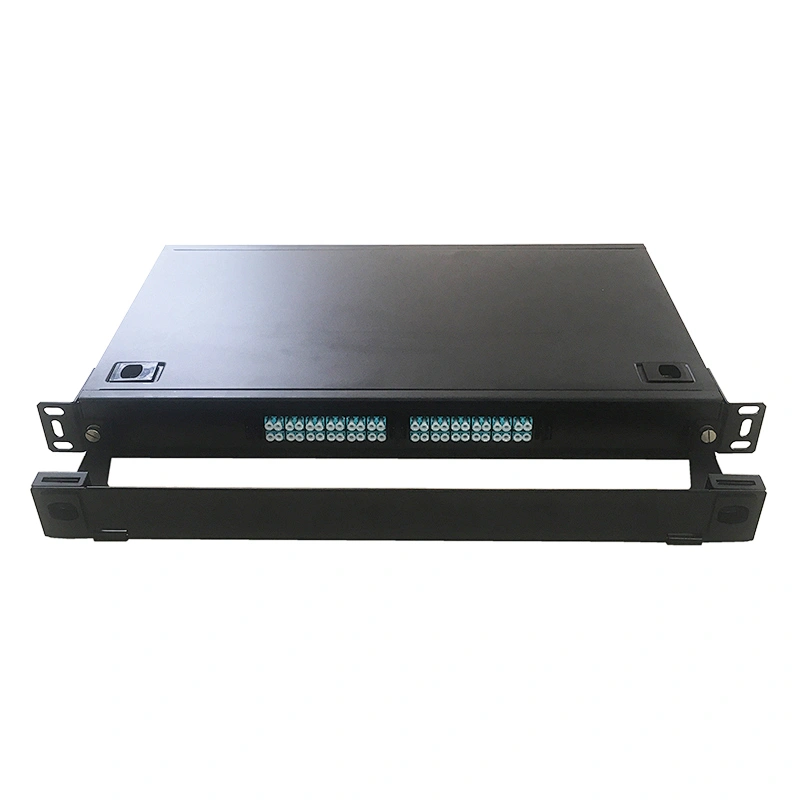

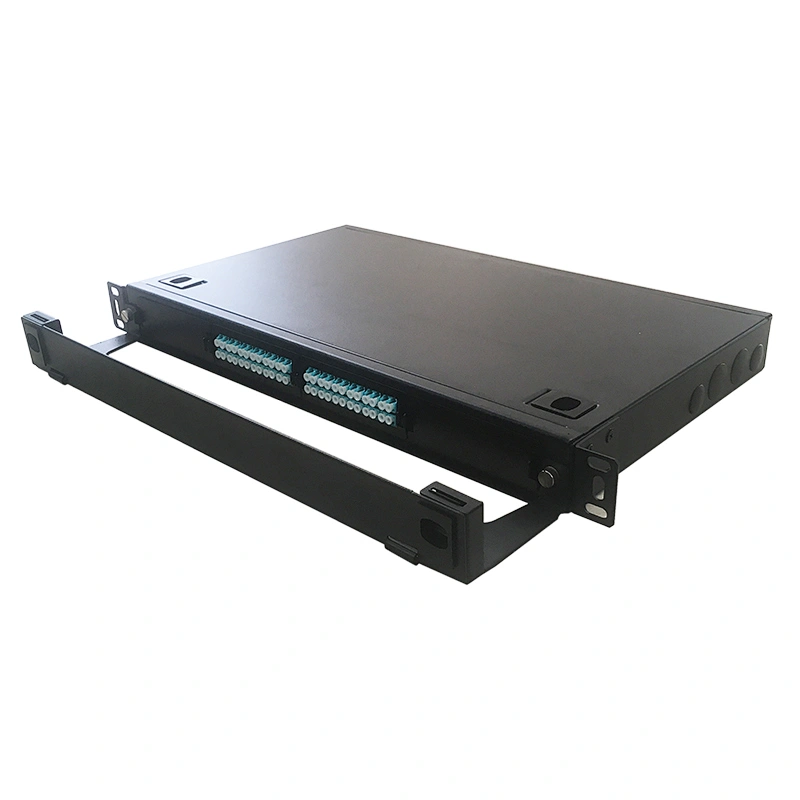

The rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12/24-fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Features
Simple assembly and installation: the cassettes are mounted to the panel separately
Pre-terminated MPO cables are connected directly to the cassettes
Available in 12 / 24 / 48 /96 fiber versions.
Field connections with guaranteed quality and simplifies fiber routing.
Modular system management, easy reconfiguration for moves, adds, and changes.
Customized fiber polarity in the module.
Specification
U Size
1U (44mm)
4U(174mm)
Number of Module Positions
4
12
Width
482mm
430
Depth
350mm
400
Material
1.2mm Cold-rolled steel
Material Coating
Powder coating
Color
Black
Compliant to
RoHS, Reach/SVHC
Application
Data Centre Infrastructure.
High Density Fiber Management.
Telecommunications networks and Broadband / CATV networks.
