Connector A: LC | Connector B: LC |
Fiber Mode: 9/125 μm | Fiber Count: Duplex |
Fiber Grade: G.652D/G.657A2 | Minimum Bend Radius:30 mm |
Polish Type: APC | Cable Diameter: 2.0mm |
Cable Jacket: PVC/LSZH | Jacket Color: Yellow |
Wavelength:1310 nm/1550 nm | Durability:>1000 Times |
Insertion Loss:≤0.25 dB | Interchangeability:≤0.2 dB |
Return Loss:≥55 dB | Vibration:≤0.2 dB |
Operating Temperature:-40~85°C | Storage Temperature: -40~85°C |
Specification
Items | Single mode | Multimode |
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G/40G |
Insertion Loss | <0.2dB | <0.3dB |
Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
Durability | <0.1dB typical change, 500 matings |
Operation temperature | -40~+75(℃) |
Ferrule hole size | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um |
125.0+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um |
125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um |
126.0+1/-0um, Conentricity:≤1um |

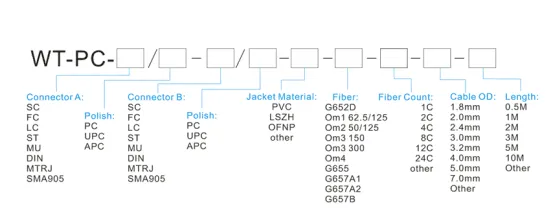

Order information
