Connector A: LC
Connector B: LC
Fiber Mode: 9/125 μm
Fiber Count: Du plex
Fiber Grade: G.652D/G.657A2
Minimum Bend Radius: 30 mm
Polish Type: A PC
Cable Diameter: 2.0 mm
Cable Jacket: PVC/LSZH
Jacket Color: Yellow
Wavelength: 1310 nm/1550 nm
Durability: >1000 Times
Insertion Loss: ≤0.25 dB
Interchangeability: ≤0.2 dB
Return Loss: ≥55 dB
Vibration: ≤0.2 dB
Operating Temperature: -40~85°C
Storage Temperature: -40~85°C
Specification Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G/40G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
≥45dB
≥50dB
≥60dB
≥35dB
Durability
<0.1dB typical change, 500 matings
Operation temperature
-40~+75(℃)
Ferrule hole size
125.0+1/-0um, Conentricity:≤1um
125um,Conectricity:1≤3um
125.0+1/-0um, Conentricity:≤1um
127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um
128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um
Order information
Related Products
Model NO. LC 3.0 Uniboot Patch Cord With Bar
Model NO. LC UNIBOOT 3.0 Patch Cord
Model NO. LC UPC Fiber Optic Uniboot patch cord
Wechat scan code or copy link mobile phone open
X

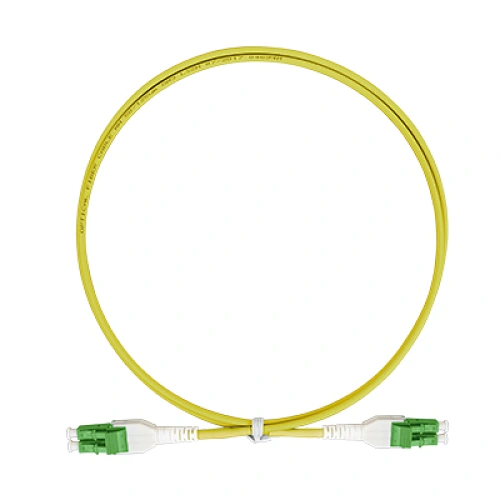

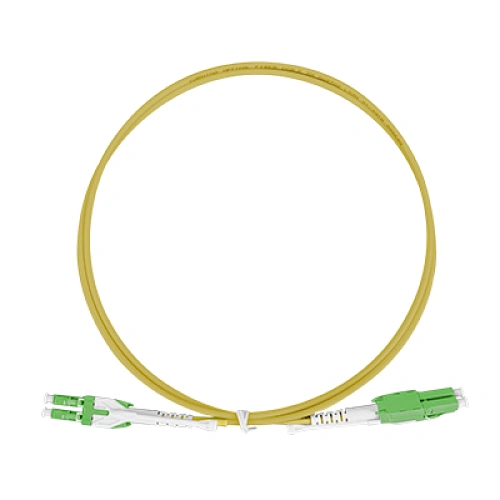

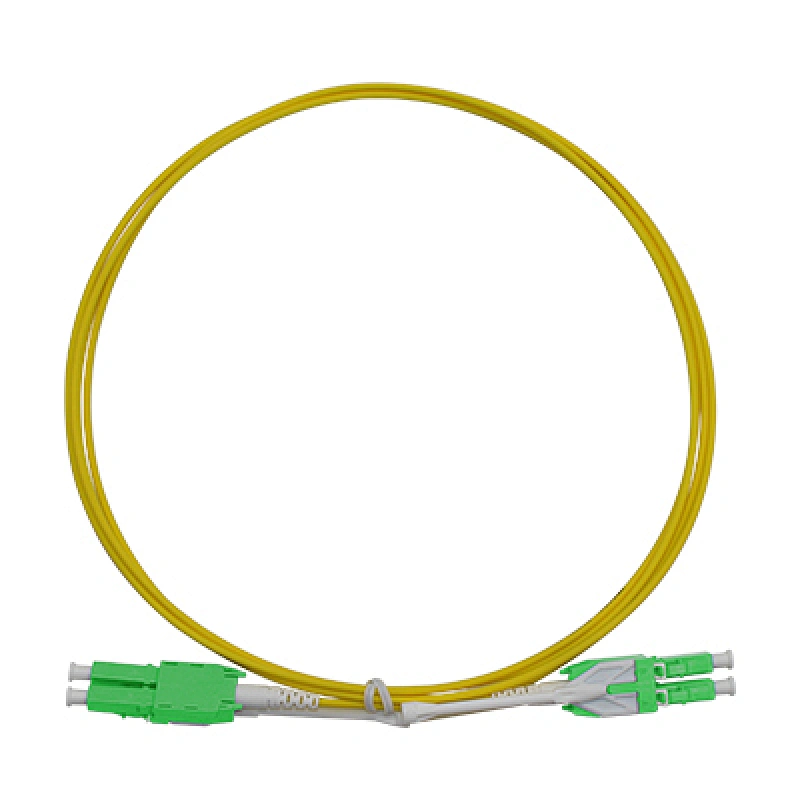

LC 2.0 Uniboot Patch Cord With Bar
LC 2.0 Uniboot Patch Cord With Bar
0.10~2.00
Traditional LC duplex jumpers are usually designed with two cables to hold two independent fibers in two different cables, while LC Uniboot fiber jumpers only need one cable to wrap the two fibers, which enables LC Uniboot fiber jumpers to save at least 50% space compared with traditional fiber jumpers.
Send
LC 2.0 Uniboot Patch Cord With Bar
LC 2.0 Uniboot Patch Cord With Bar
0.10~2.00
Traditional LC duplex jumpers are usually designed with two cables to hold two independent fibers in two different cables, while LC Uniboot fiber jumpers only need one cable to wrap the two fibers, which enables LC Uniboot fiber jumpers to save at least 50% space compared with traditional fiber jumpers.
