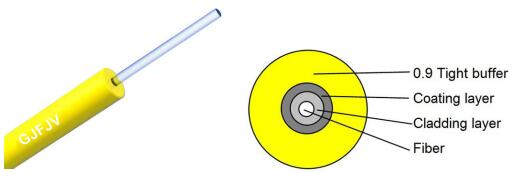

Structure
Technical Parameters
Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | Storage temperature | |||
(MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | ℃ | |
1 | 0.9+/-0.05 | 0.90 | 100 | 50 | 100 | 80 | 20D | 10D | -20 to +60 |
Order Information
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
Buffer: tight buffer, easy buffer, semi-tight buffer
Sheath Material: PVC,LSZH
Sheath Color: white, green or standard international 12 colors
