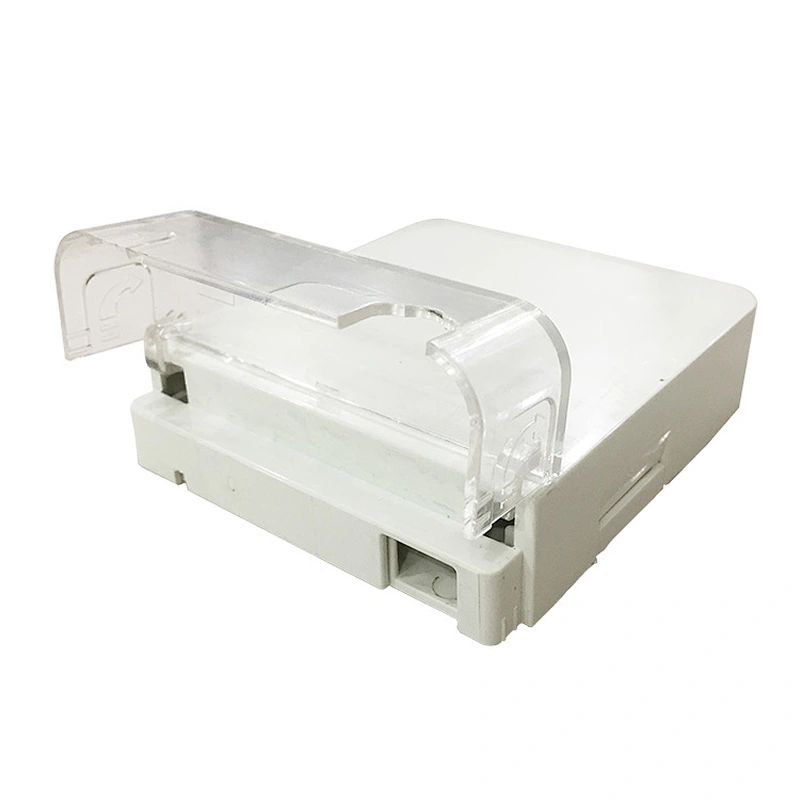

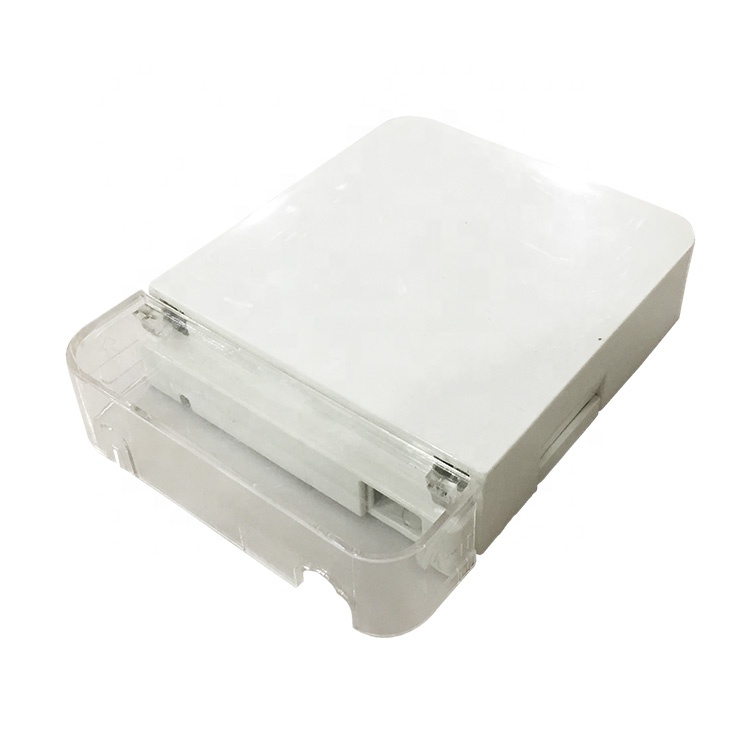

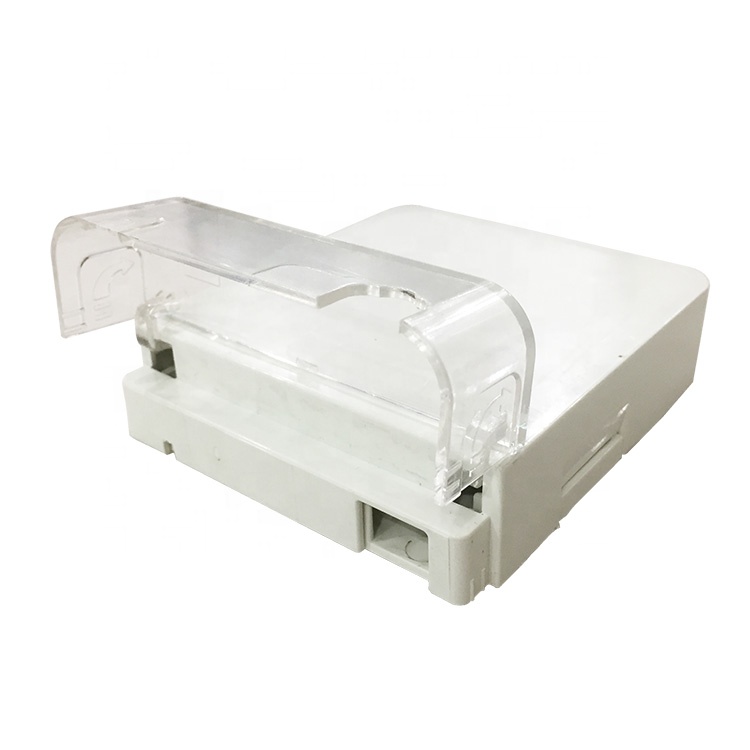

Fiber Optic Termination Box with Dust Cover
Fiber Optic Termination Box with Dust Cover
Fiber Optic Termination Box with Dust Cover

Fiber Optic Termination Box with Dust Cover

Model NO.
HW-1C
Quantity:

Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.


Features

  1. Small size and light weight for easy installation
  2. Double-layer design for easy installation and maintenance
  3. Four cable entry, available from the top, bottom, right side into the line, easy to choose routing
  4. Single-core, dual-core fiber adapter can choose
  5. Using high-quality ABS material, with a certain fireproofing performance
  6. With dust-proof device to prevent dust
  7. With a logo bar, easy to manage number and maintain
  8. Applicable with fiber optic cable or indoor cable
  9. Adapter Type: SC, LC

Specification

Parameter

Value

Remark

Model

WT-FTTD-ATB-H02

Outside Dimension

115*86*23mm

Material

Plastic

Color

White

Storage of fibers

G.657 fiber

Splice capacity

2 Fiber

Splice Method

Fusion splice

45mm sleeve
Adaptor type and count

SC,2SC

Input cable

3mm or Ftth cable(2*3mm)

From side or bottom

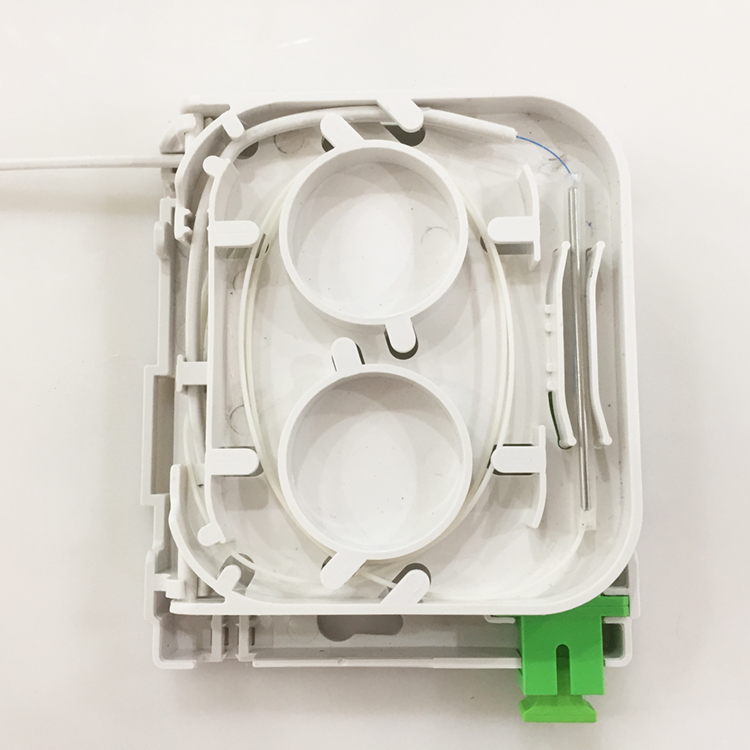

IMG_3234-2IMG_3235-2

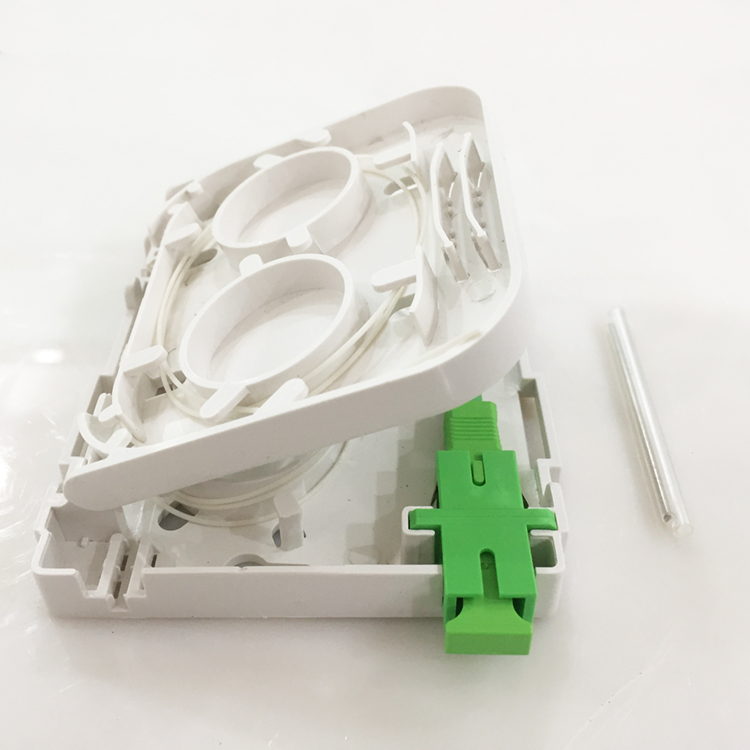

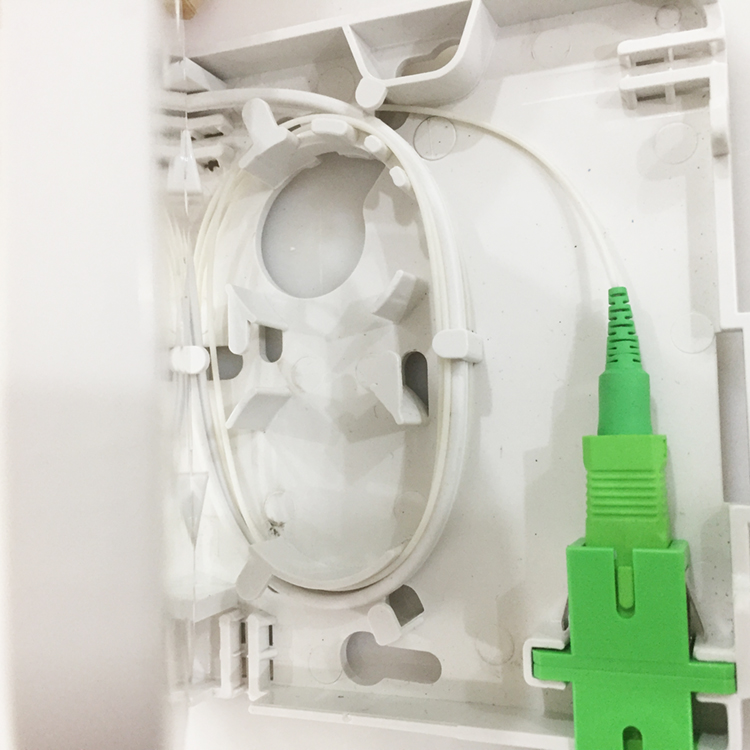

IMG_3236-2IMG_3239-2

Application

  • Fiber to the desk (FTTD)
  • Fiber to the home(FTTH)
  • Fiber to the building(TFFB)
  • Local area networks
  • Wide area networks

Accessories

  1. Fiber splice protection sleeve 2pcs
  2. Expansion bolts for the outlet wall-mounted 2set
  3. Cable tie 4pcs

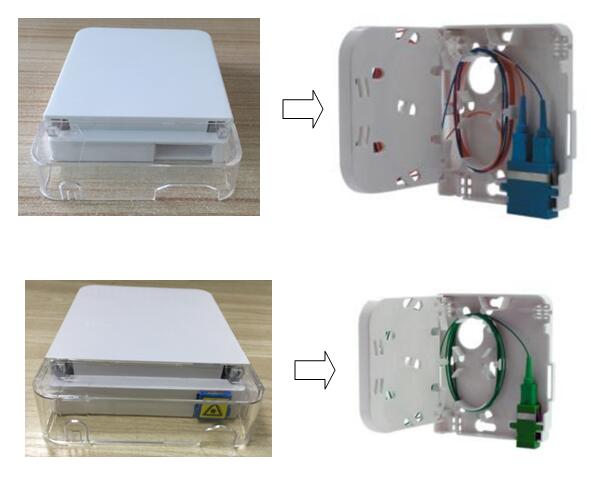

QQ20190508112408

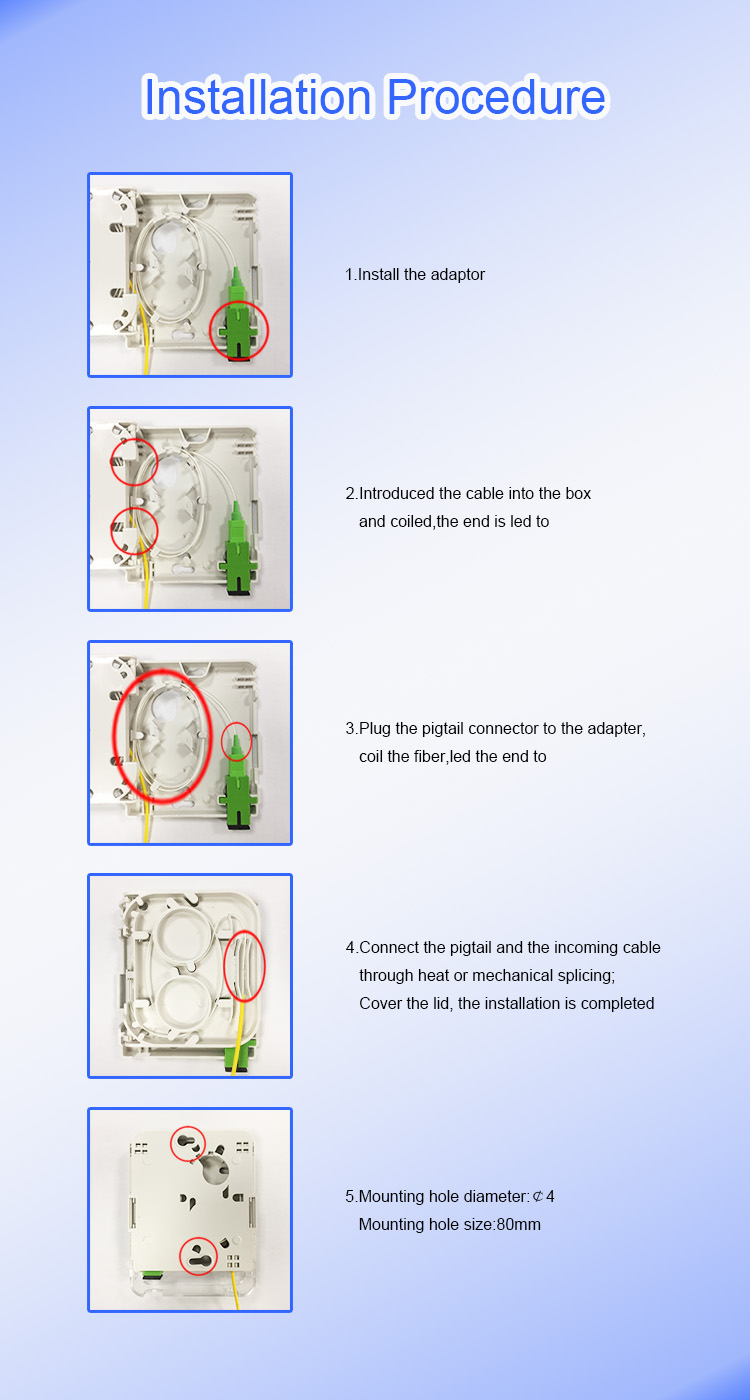

Installation Procedure-1
