Fiber Optic Pigtail bundle Multi-fiber
Fiber Optic Pigtail bundle Multi-fiber

Fiber Optic Pigtail bundle Multi-fiber

Model NO.
bundle Multi-fiber
Quantity:

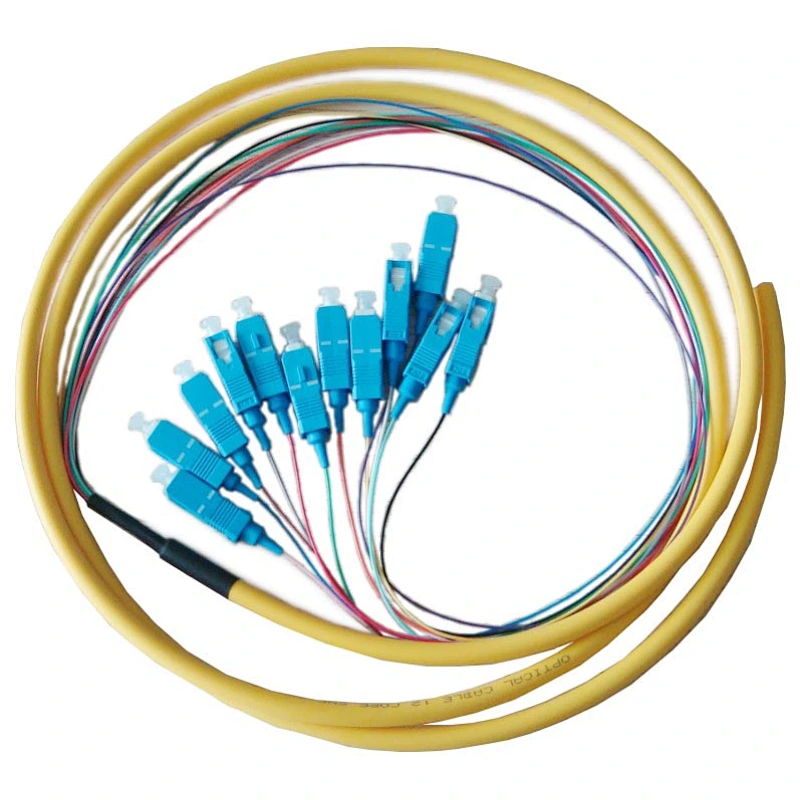

picture of  bundle Multi-fiber Pigtail

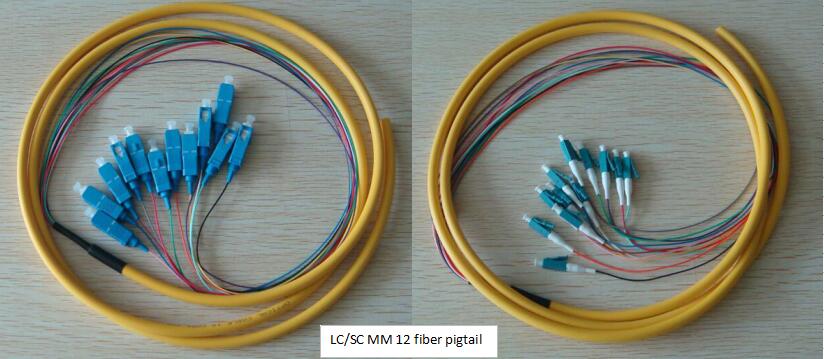

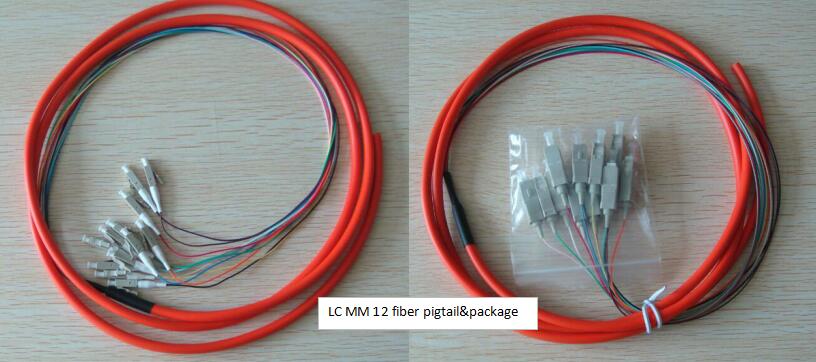

LC MM 12 fiber pigtailLC/SC MM 12 fiber Pigtail

bundle Multi-fiber PigtailSpecification

Items

Single mode

Multimode

PC

UPC

APC

62.5/125

50/125

50/125 10G/40G

Insertion Loss

<0.2dB

<0.3dB

Return Loss

45dB

50dB

60dB

35dB

Durability

<0.1dB typical change, 500 matings

Operation temperature

-40~+75(℃)





Ferrule hole size

125.0+1/-0um, Conentricity:≤1um

125um,Conectricity:1≤3um

125.0+1/-0um, Conentricity:≤1um

127um,Conectricity:1≤3um

125.5+1/-0um, Conentricity:≤1um

128um,Conectricity:1≤3um

126.0+1/-0um, Conentricity:≤1um

bundle Multi-fiber Pigtail Ordering Information

Main Cable:                 Distribution Riser Cable with 0.9mm buffer, 2.0mm break out cable,3.0mm dry structure indoor cable

Connector Head:          LC,FC,SC,ST

Cable Sheath:              PVC,LSZH

Cable Sheath Color:      Yellow, Orange, Aqua, or customized

Fiber Type:                  SM 9/125, MM 50/125, 62.5/125, OM3,OM4
