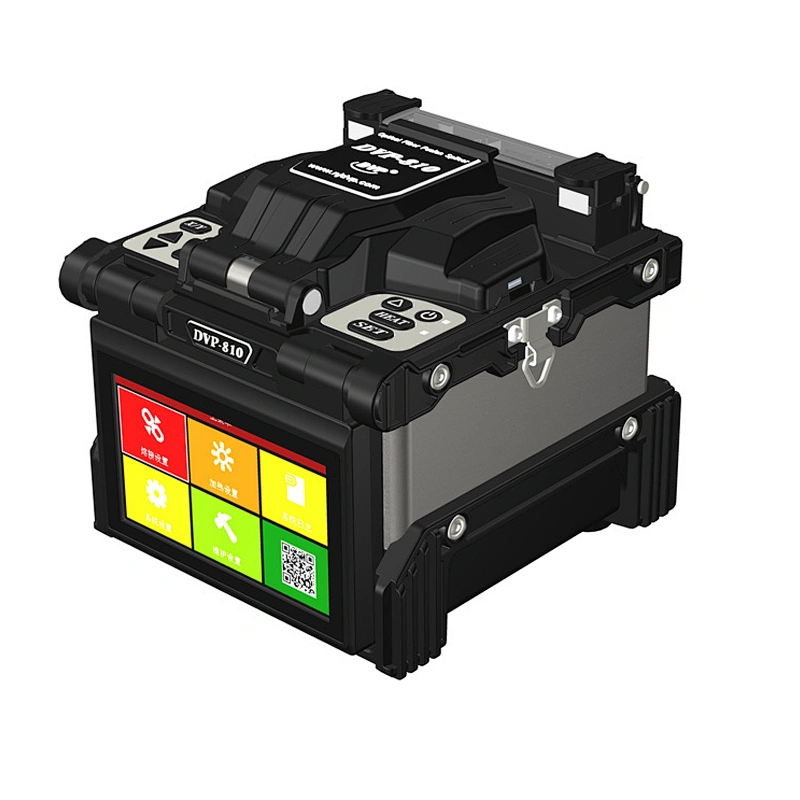

DVP 810 Single Fiber Fusion Splicer
DVP 810 Single Fiber Fusion Splicer

DVP 810 Single Fiber Fusion Splicer

Model NO.
DVP-810
Price:
US $ 1399.00-1499.00 / set
Minimum order quantity
1 set
Quantity:

Features:

  1. 6 motors auto-focusing
  2. Auto-fiber identification
  3. Automatic heating function
  4. Exchangeable internal battery
  5. 5000m altitude ensures Splice Quality
  6. SYSTEM TEST ensures the best working condition
  7. Store 20000 groups of splice and heat results and 200 splicing pictures
  8. 200 times splice and heat once charge fully
  9. 7- Second Splicing time and 20-Second heating time
  10. Standby mode design saving energy

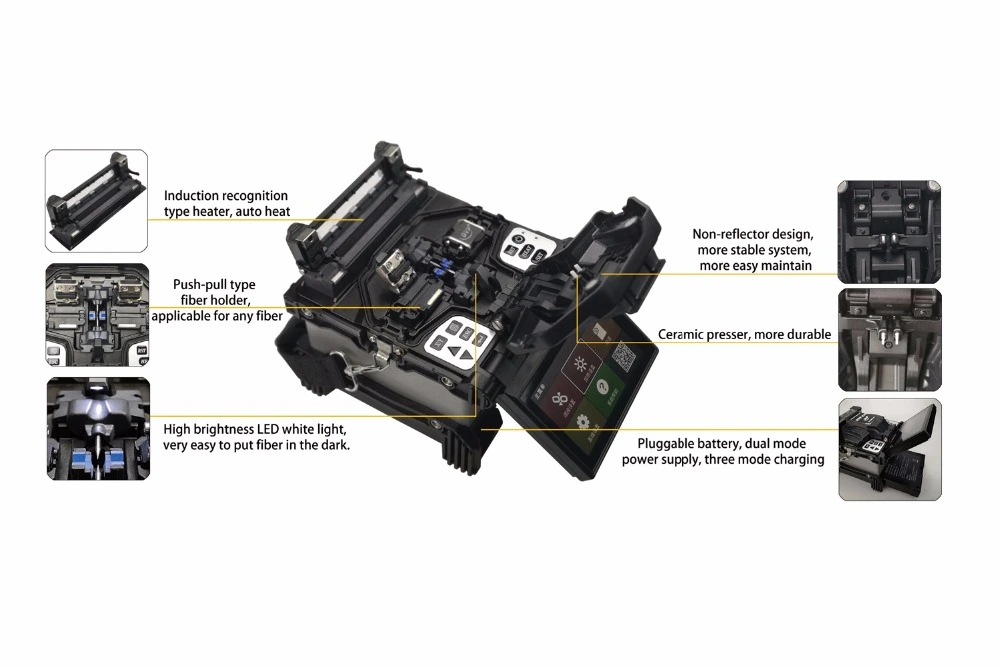

dvp 810.jpg

Specification

Fiber Diameter

Cladding Diameter: 80-150 um; Coating Diameter: 100~1000 um

Fiber Cleaver Length

5-16mm

Applicable fibers

SM, MM, DS, NZDS, G655,G657 and SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T

G.655), IT-657A, IT-G657B;0,25mm, 0,9 mm, 2.0mm, 3.0 mm, FLAT (indoor cable)

Splice loss

0.01dB(MM),0.02dB(SM),0.05dB(DS/NZDS/G.655/G.657)

Return loss

60dB

Tension test

2.0N

Protection sleeve length

25mm,40mm,50mm

Splice length:

5-16 mm for covers diameter < 0,25 mm ; >16 mm for covers diameter > 0,25 mm;

Splicing program

7 Set program and 73 user programable program

Language

Chinese, English,French,Korean,Russia,Spanish.....

Alignment

Core Alignment(PAS Technology)

Interface

USB, suitable for data download and software update

Splice Memory

20000

Electrode Span

At least 5000 times

Operating Temp

-18℃~50℃

Storage Temp

-40~80

Window Protection

Max. wind velocity of 15m/s

Power Supply

Internal Li-Battery, 12V/6.5AH  ,AC input voltage 100 to 240V

Dimension

152mm(D)*142mm(W)*140mm(H)

Weight

1.95KG(Include battery)

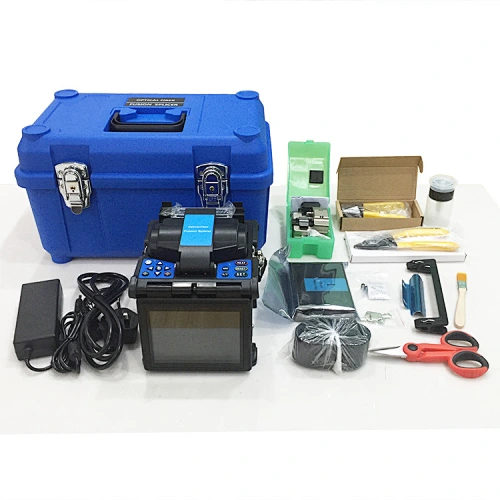

Standard package

Main body,Fiber Stripper,Charger,Electrode,Cooling Tray,Manual,
Carry Case,Fiber Cleaver
