Duplex Twin Tight Buffer Armored Fiber Optic Flat Cable
Duplex Twin Tight Buffer Armored Fiber Optic Flat Cable

Duplex Twin Tight Buffer Armored Fiber Optic Flat Cable

Model NO.
Duplex Twin Tight Buffer Armored
Quantity:

Product Details

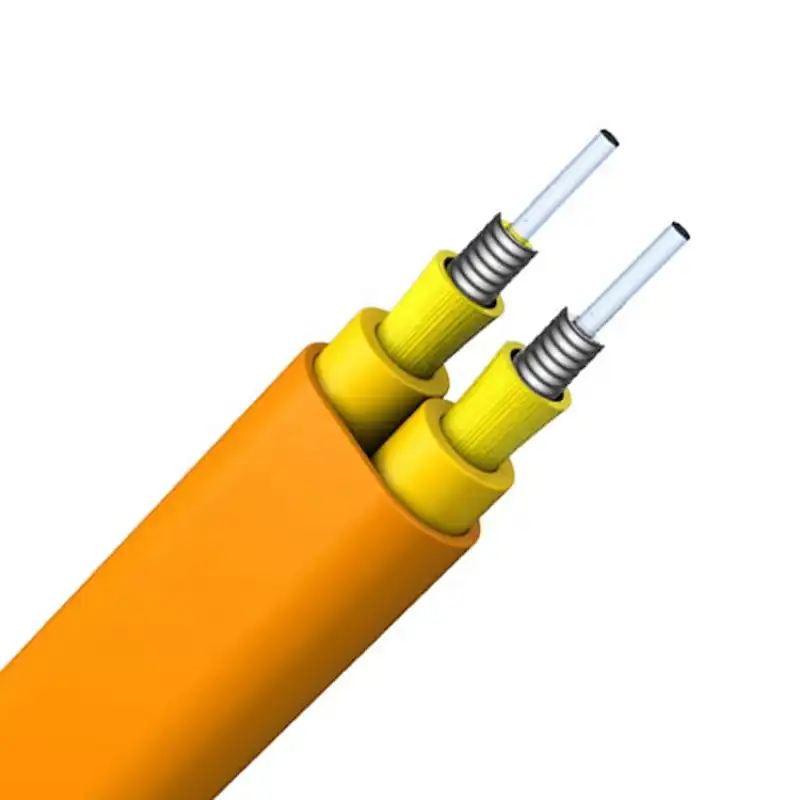

Flat Twin Duplex Indoor Cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.

The tight buffer fiber wrapped with a layer of aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.

Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath

Cable 003.jpgCable 001.jpg

Characteristics:

  • Two single-fiber as basic unit.flat twin configuration;
  • Single-cable with 0.6 tight buffer.Kevlar yarn applied;
  • Flexible or out sheath independent strength member;
  • Excellent mechanical and environmental performance.

Technical Parameters:
Out Diameter(MM)3.0×5.0Weight(KG)56
3.2×5.668
5.0×8.087
Storage temperature(℃)40
Min Bending Radius(mm)Long term 10D
Min BendingShort term20D
Radius(mm)
Min allowableLong term 300
Tensile Strength(N)
Min allowableShort term800
Tensile Strength(N)
Crush Load (N/100mm)Long term500
Crush Load (N/100mm)short term1000


Standard color of fiber and tube:

Standard Colour Identification
No.12
ColorYellowWhite
