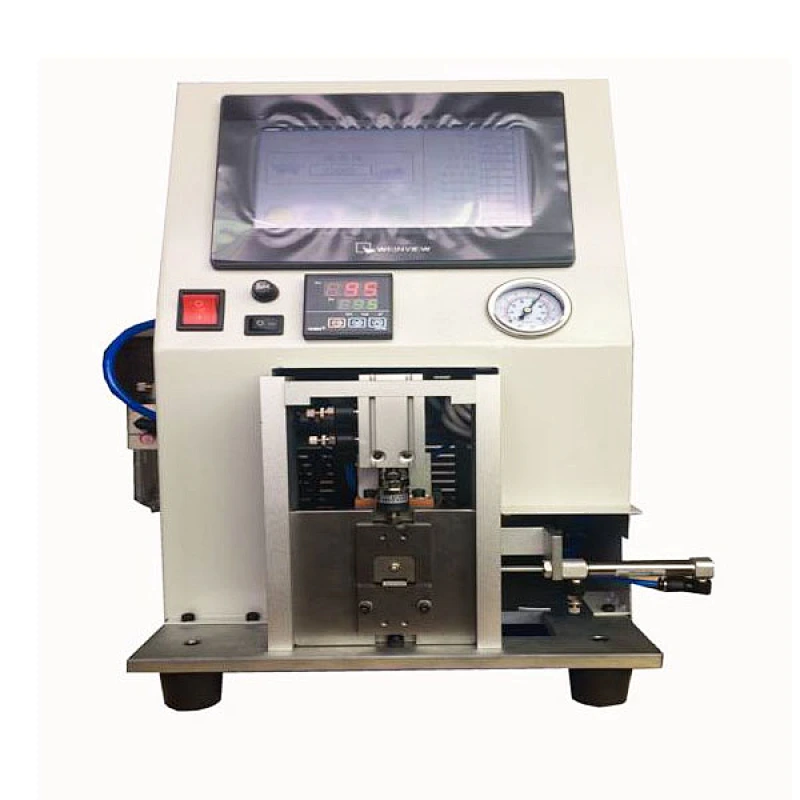

Automatic Fiber Stripping Machine
Automatic Fiber Stripping Machine
Automatic Fiber Stripping Machine

Automatic Fiber Stripping Machine

Model NO.
WT
Quantity:

Summary

  1. The machine is mainly used in the current optical communication industry of 0.9mm indoor optical fiber and ribbon fiber.
  2. This machine adopts PLC control system, accurate and fast.

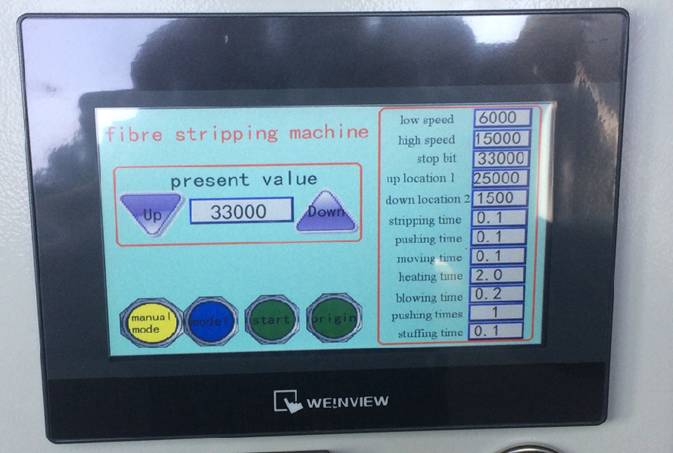

  3. Touch screen operation is simple, easy to learn and easy to understand.
  4. Using the heat stripping method to peel the fiber, the fiber will not be hurted, several fibers can be stripped simultaneously, the speed is fast, the performance is stable, the accuracy is high, the length is easy to adjust(10mm-20mm).
  5. The number of fiber stripped per hour is 800-1200 times.
  6. In the operation, the method of moving and setting is adopted before and after the operation, “mode1” and “mode2” two modes are used for the different stripping length requirements, the replacement of the tool is convenient, without the worry of the fingers.

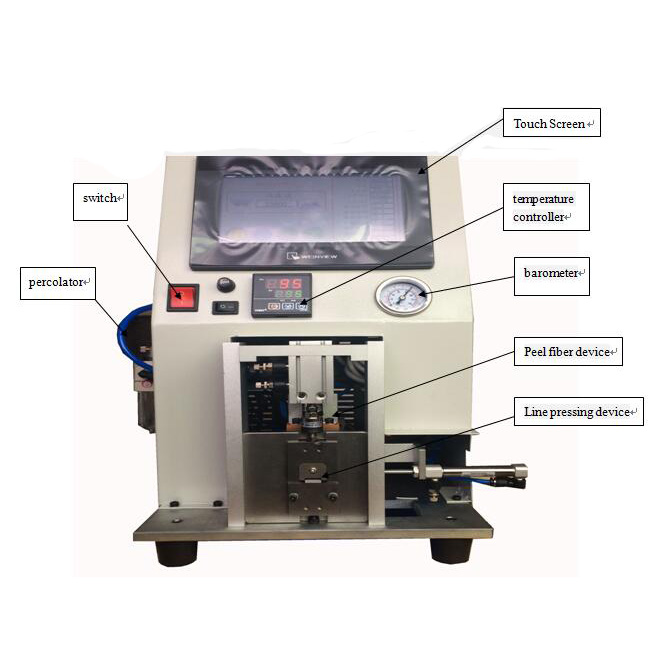

fiber stripping machine.jpgQQ20190423175045.jpg


Specification

Using air pressure0.6—0.8MPa
Power voltage220V 50Hz
Weight20kg
Size350×300×450mm

Standard fittings:

fiber stripping machine1 set
Power line1 pcs
Plastic pallet1 pcs
Specification1 pcs
  • Place of Origin:China
  • Brand Name:Wirenet
