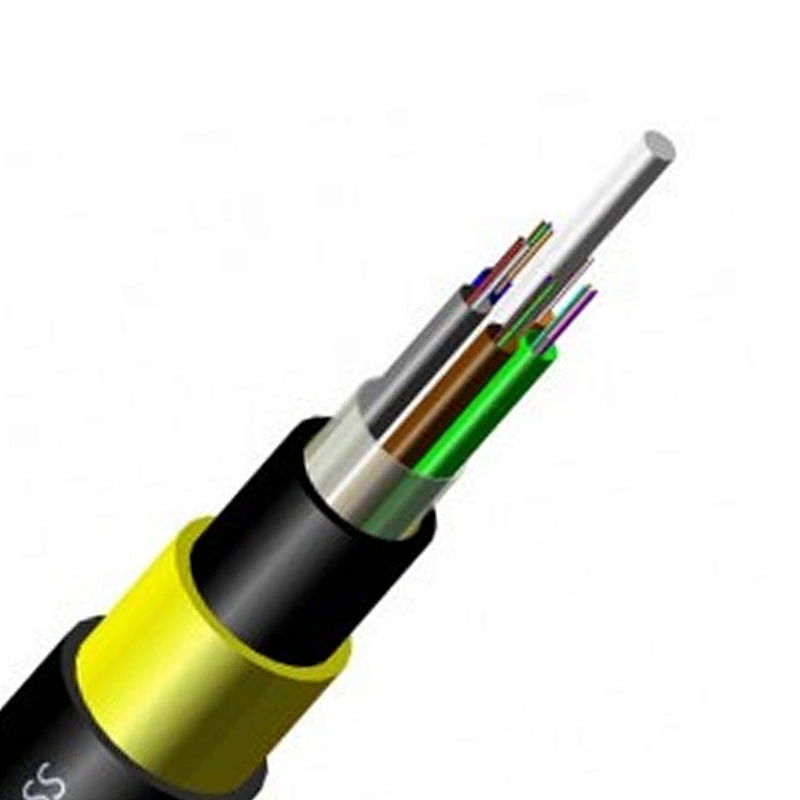

Structure
ADSS with grade A sheath (Parts)
Order Type Model | ADSS-PE 24 M15.5/ A | ADSS-PE48 M17.7 / C | ADSS-PE72 M21.2 / D |
Fiber count | 24fiber | 48fiber | 72fiber |
Size of tube | φ2.1mm | φ2.6mm | φ3.0mm |
Cable diameter | φ13.4mm | φ14.9mm | φ16.4mm |
Cable weight | 139kg/km | 172kg/km | 209kg/km |
RTS | 38.8kN | 44.3kN | 56.6kN |
Linear expansion coefficient | 2.2×10-6/℃ | 2.0×10-6/℃ | 1.8×10-6/℃ |
Young’s modulus | 16.5kN/mm2 | 17.5kN/mm2 | 18.6kN/mm2 |
ADSS with grade B sheath (parts)
Order Type Model | ADSS-AT 24 M14 / A | ADSS-AT48M15.2 / C | ADSS-AT72 M21.2 / D |
Fiber count | 24fiber | 48fiber | 72fiber |
Size of tube | φ2.1mm | φ2.6mm | φ3.0mm |
Cable diameter | φ13.2mm | φ14.3mm | φ16.3mm |
Cable weight | 146kg/km | 169kg/km | 220kg/km |
RTS | 35kN | 37.9kN | 52.9kN |
Linear expansion coefficient | 4.5×10-6/℃ | 4.8×10-6/℃ | 3.6×10-6/℃ |
Young’s modulus | 15.5kN/mm2 | 14.9kN/mm2 | 17.9kN/mm2 |
Fixing Accessories
Ordering Information
Fiber Type: SM 9/125, MM 50/125, 62.5/125 OM3,OM4
Cable Span: 100Mtr, 200Mtr, 300Mtr
Sheath: PE,used for below 100V voltage
AT,used for above 110V voltage
