Model NO.
WT-FTTD-ATB-0206-4C
Quantity:

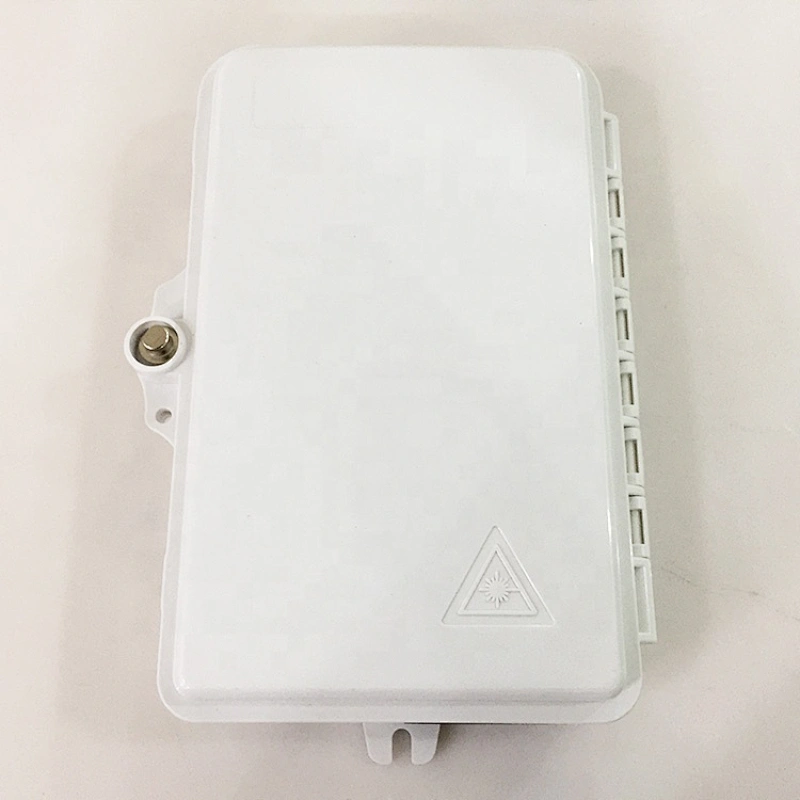

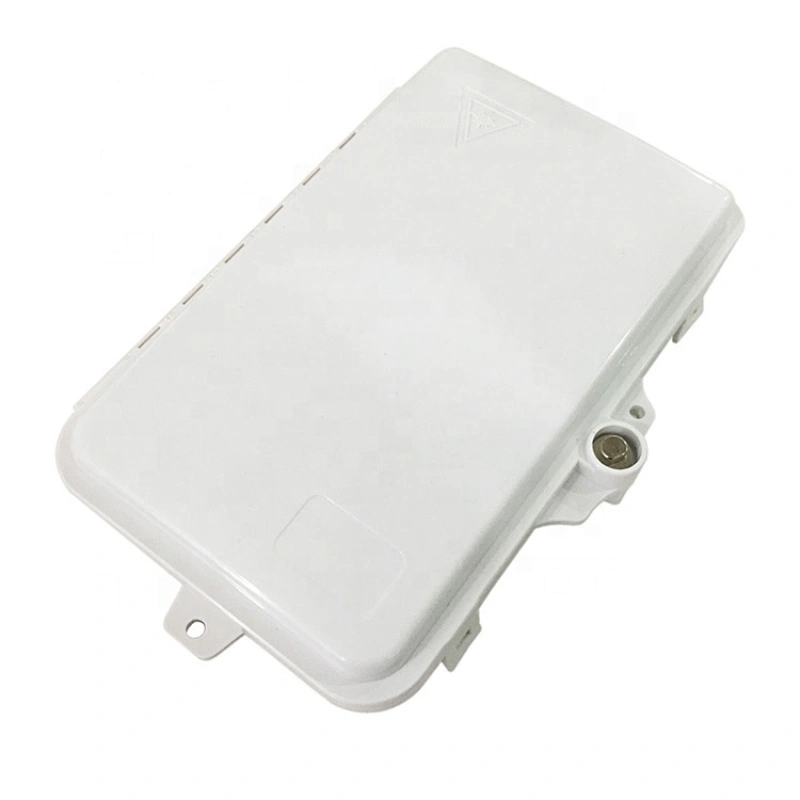

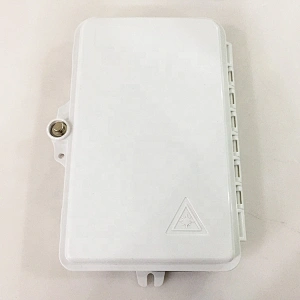

IP66 Waterproof 4 Core FTTH Terminal Box optical Fiber optic Termination Box

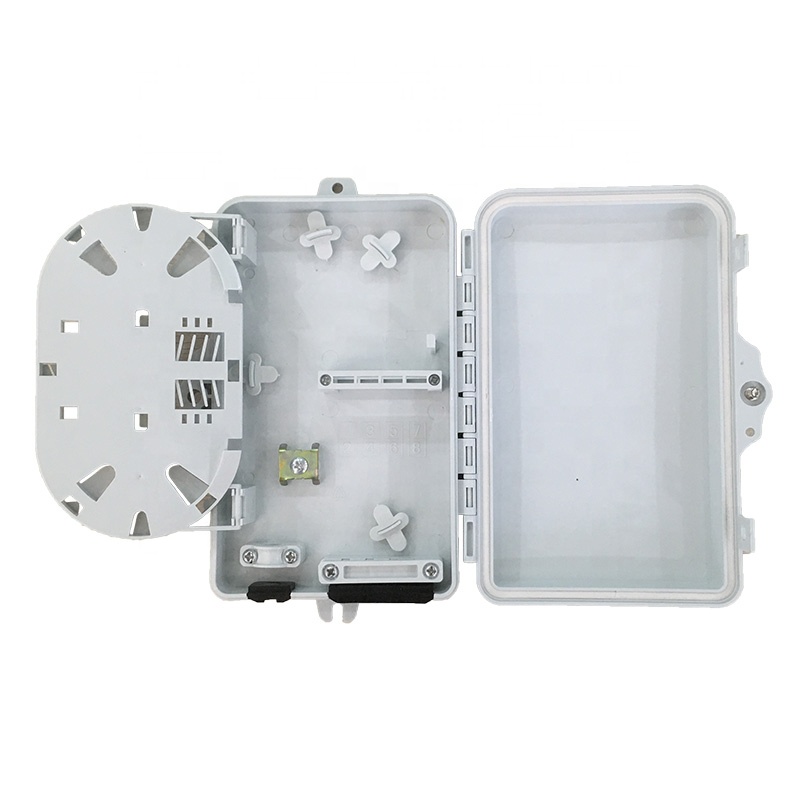

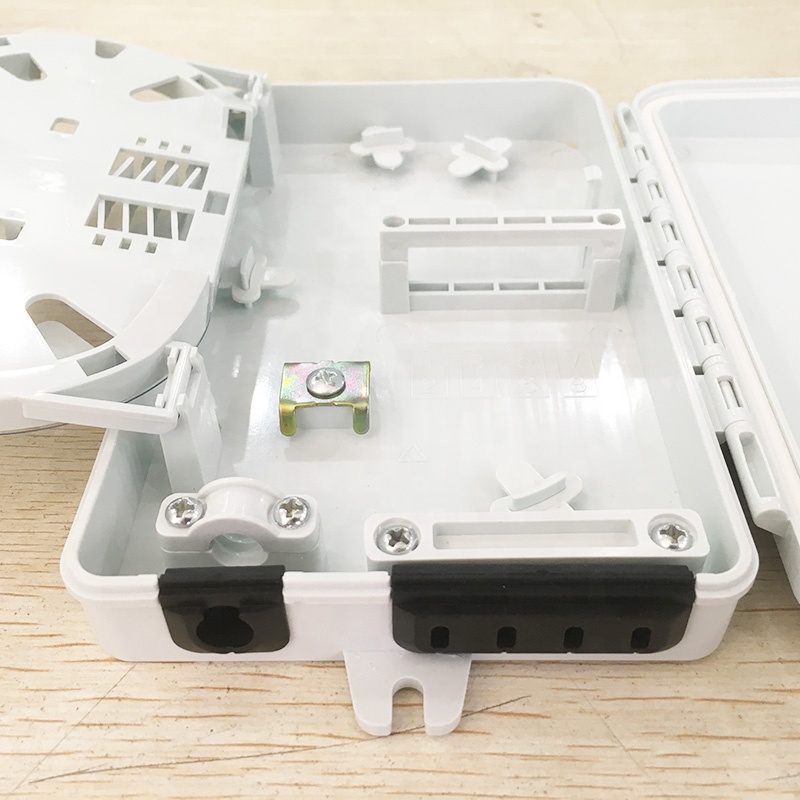

     The fiber splitter box can accommodate six users.A terminal node that is used as a link between a feeder cable and a skin cable in a FTTx network system.It sets fiber optic cable fusion, fiber, distribution, storage cable in a solid protection box.


Essential details
Use:FTTH
Warranty Time:Custom
Dimensions:186mm*116mm*41mm
Material:ABS
Max capacity:SC 6 Ports/PLC 1x4 (SC)

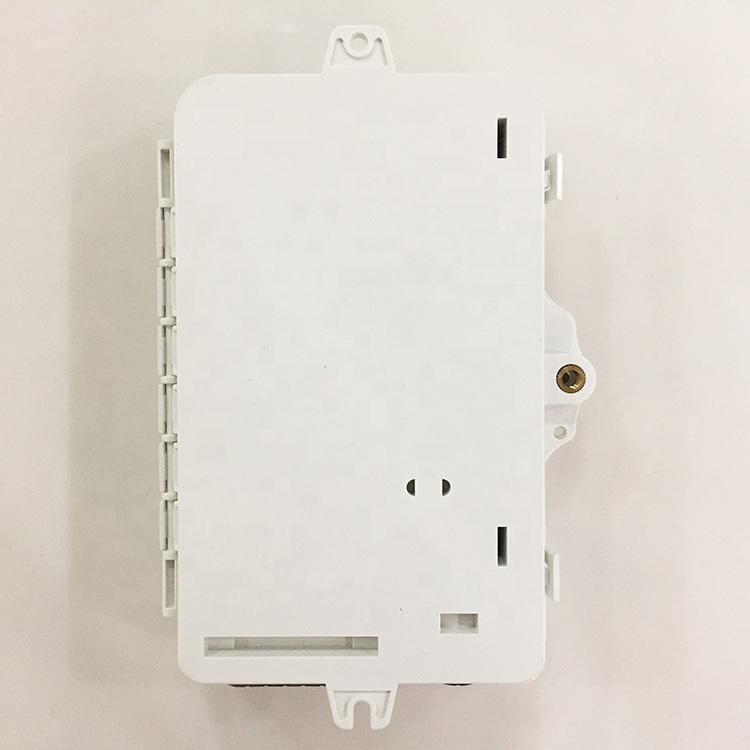

Mounting Way:Wall mounting
Weight:0.8kg
Connector Type:SC
Fiber count:4 Core
The radius of curvature:≥ 40mm


Features:

  1. Ip-66 class waterproof protection design
  2. Fusible fiber disc and cable fixings are assembled
  3. Control the curvature radius of the fiber within a reasonable range
  4. Easy to maintain and expandable capacity
  5. The radius of curvature of the fiber is greater than 40mm
  6. Suitable for hot melt and mechanical connection
  7. A 1x4 splitter can be installed
  8. Efficient cable management
  9. Can go through 6 fiber optic cables
Material                                         ABS
 Dimensions 186mm*116mm*41mm
 Max capacity SC 4 Ports
 PLC 1x4 (SC)
 Mounting Way Wall mounting
 Weight 0.8kg
