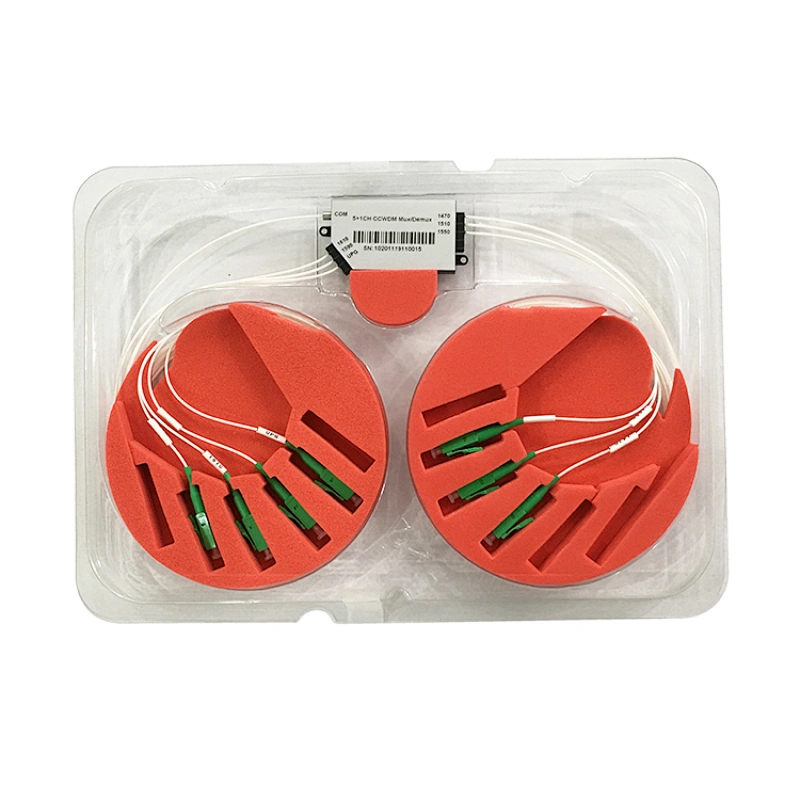

5+1CH CCWDM Mux Demux Module
5+1CH CCWDM Mux Demux Module
5+1CH CCWDM Mux Demux Module

5+1CH CCWDM Mux Demux Module

Model NO.
5+1CH Mux/Demux
Quantity:

5+1CH CCWDM module，0.9mm loose tube，pigtail length 1000± 100 mm，LC/APC connector
1470/1510/1550/1590/1610+OUT5+1CH CCWDM module，0.9mm loose tube，pigtail length 1000± 100 mm，LC/APC connector 1470/1510/1550/1590/1610+OUT

Specification

Parameters

Specifications

Unit

Operating Wavelength

1260~1620

nm

Channel

1470,1510, 1550,1590,1610,OUT(UPG)

nm

Channel Spaceing

20

nm

Channel Passband(@-0.5dB bandwidth)

± 6.5

nm

Insertion Loss

1470

≤1.5

dB

1510

1550

1590

1610

OUT(UPG)

Isolation

Adjacent

>30

dB

Non-adjacent

>40

dB

OUT(UPG)

>15

dB

Insertion Loss Temperature Sensitivity

<0.5

dB

Wavelength Temperature Shifting

<0.002

nm/℃

Polarization Dependent Loss

<0.1

dB

Polarization Mode Dispersion

<0.1

ps

Directivity

>50

dB

Return Loss

>50

dB

Maximum Power Handing

300

mW

Operating Temperature

-10~+70

℃

Storage Temperature

-40~+85

℃

Fiber Type

0.9mm Loose Tube Hytrel, G657A1,G657A2

Fiber Length

1000± 100

mm

Connector

LC/APC

Package size

L44×W25×H6.2

mm

Notes: Insertion Loss tested with connector.

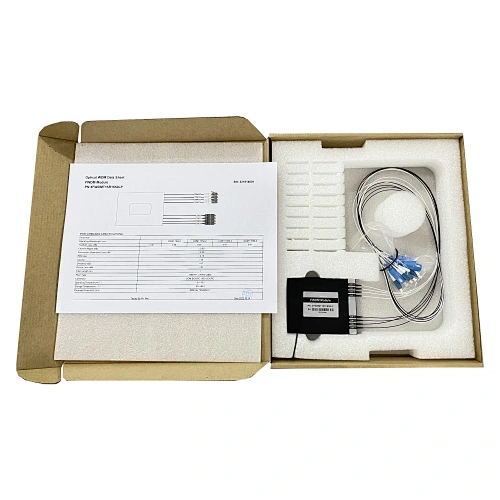

Packaging:

Products should be packaged carefully to prevent damage and characteristic deterioration due to temperature/humidity, mechanical vibration, and shock during transporting. Following items should be indicated on the outer packaging surface:
- Product name
- Serial number

Send Message

* clear input
* clear input
*

Related Products

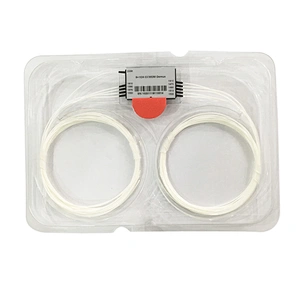

8+1CH CCWDM Demux
