Model NO.
400x Fiber Optic Inspection Microscope
Quantity:

MPO MTP LC Uniboot 400X Probe Optical Module Fiber Optic Connector Inspection Microscope End Face Inspector

Easy, not only embodied in the process of fiber endface inspection, but also in the integrated service such as purchase -transportation - assembly - use - maintenance - service.


Durability and value

Once used, you can never give up the Easycheck. Durability has been one of the important factors and this is where and durability and the value lie. Every structure and component comes from elaborate design and selection. The outstanding performance makes inspection become a pleasure, The low price and low failure rate give users real benefits. In a word: Easycheck is the trustworthy choice!

The design concept of integration

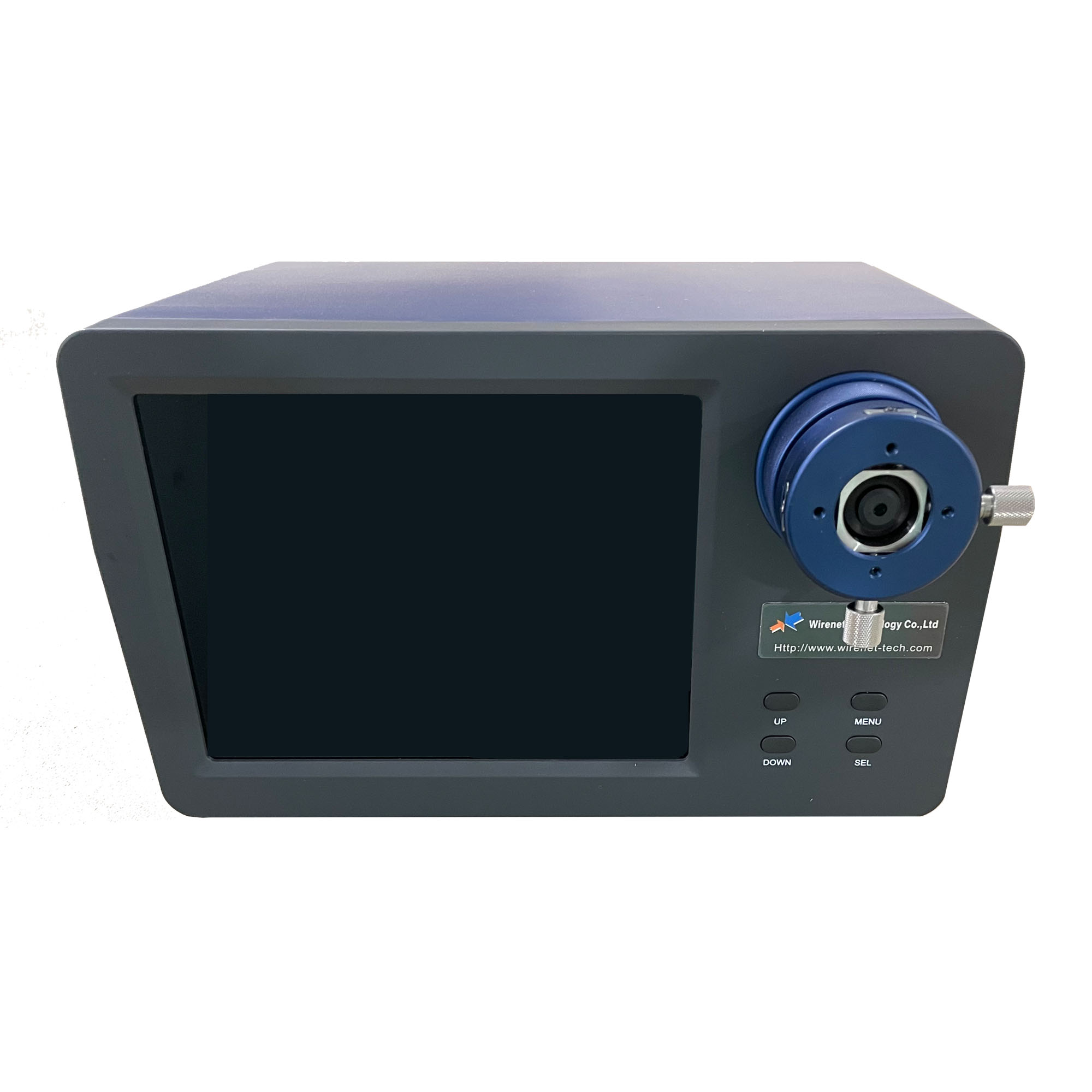

Easycheck combines the compact appearance with enhanced function. Integrated design resulted in smaller size and more convenient operation. It toppled the traditional mode of the microscope and monitor is respectively independent existence. Users can simply connect the power to start the inspection. You are no longer need to worry about the complicated cable between monitor and microscope. Easycheck helps you save time and space, and improve productively.

Incomparable image quality

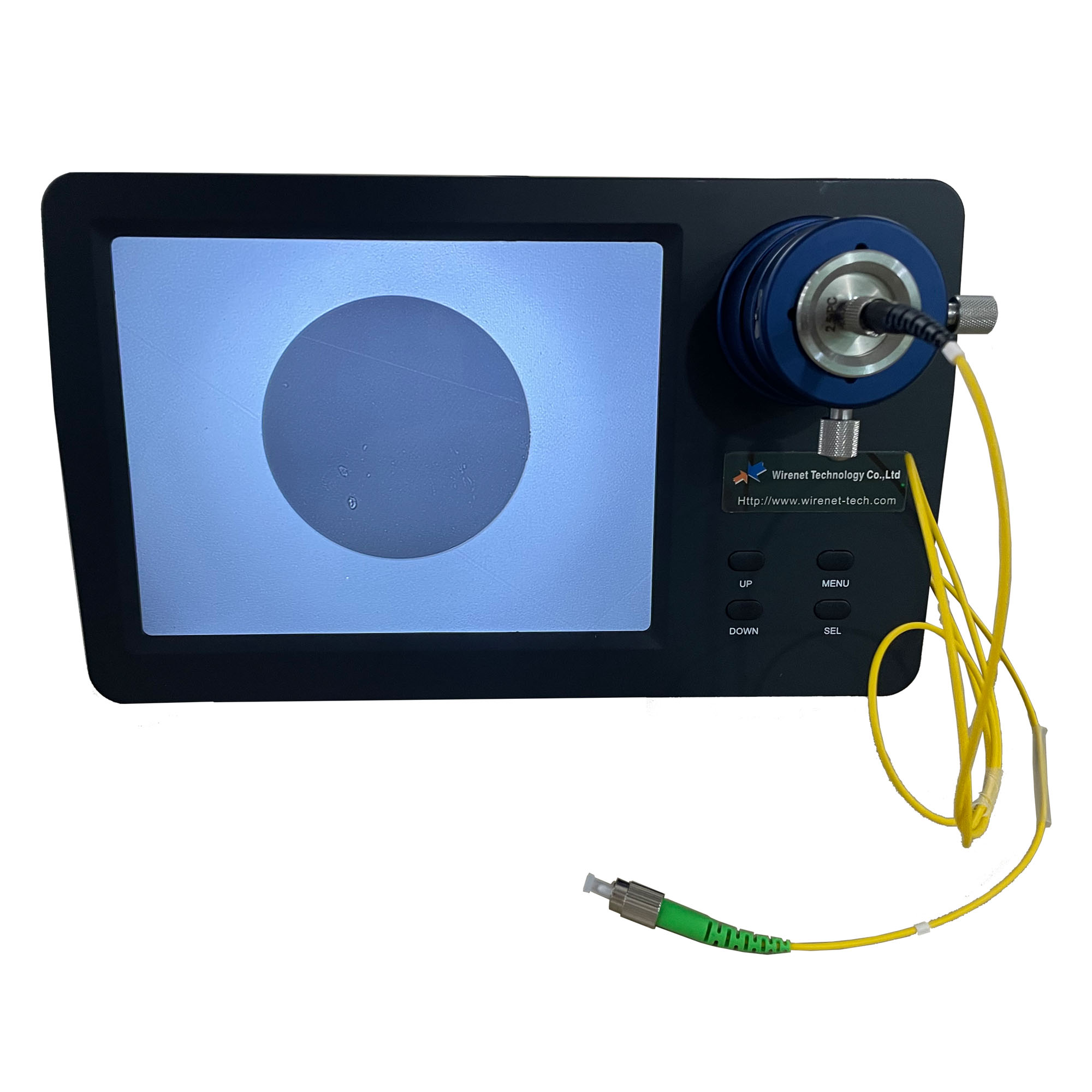

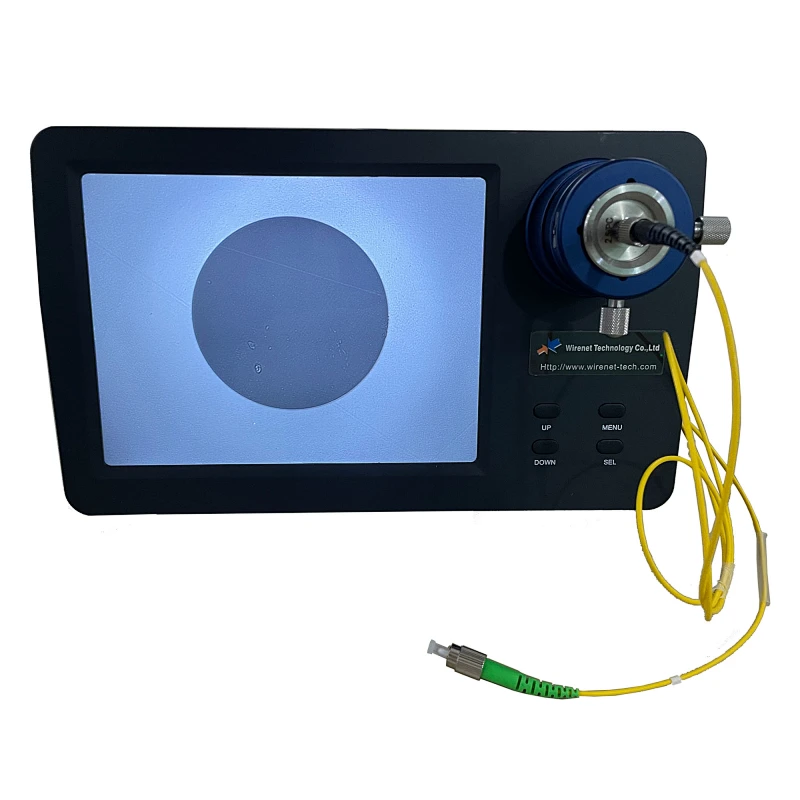

Top optical amplification system for coaxial illumination makes the fine defects in the endface of fiber connector clearly visible. High resolution image sensor along with 8’’ black-and-white digital TFT displayer truly shows you all the details of the fiber endface, ensuring the reliability of inspection result.

Convenience
Adhering to the design concept of the optical fiber endface inspector Easyget, engineers designed the encircling focus ring for Easycheck to smooth focusing. External adaptor make the various parts easy to plug & pull especially for inspecting TOSA,ROSA.

Precise ceramic adaptor tips

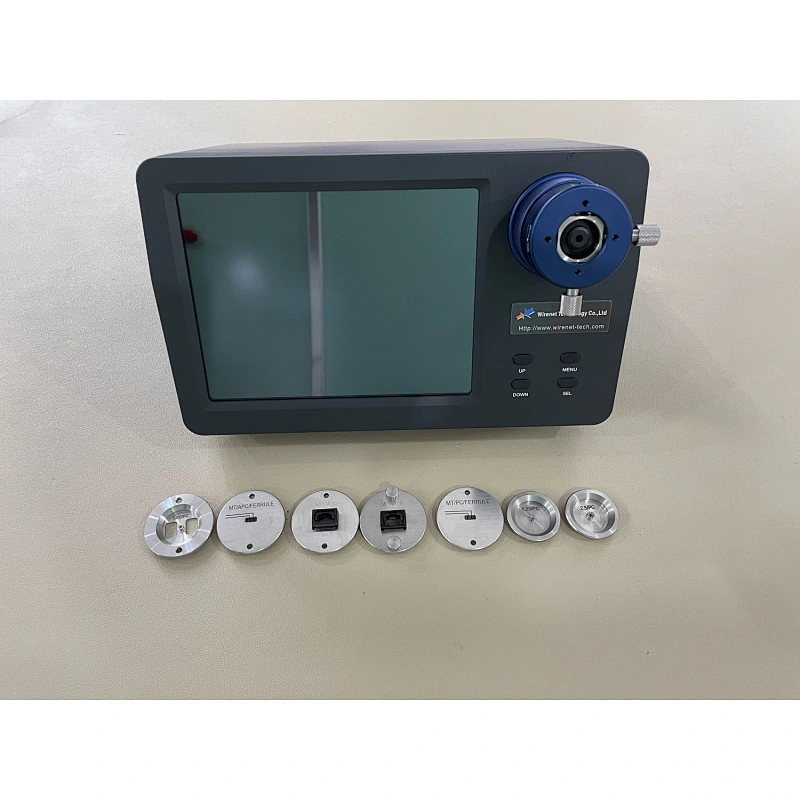

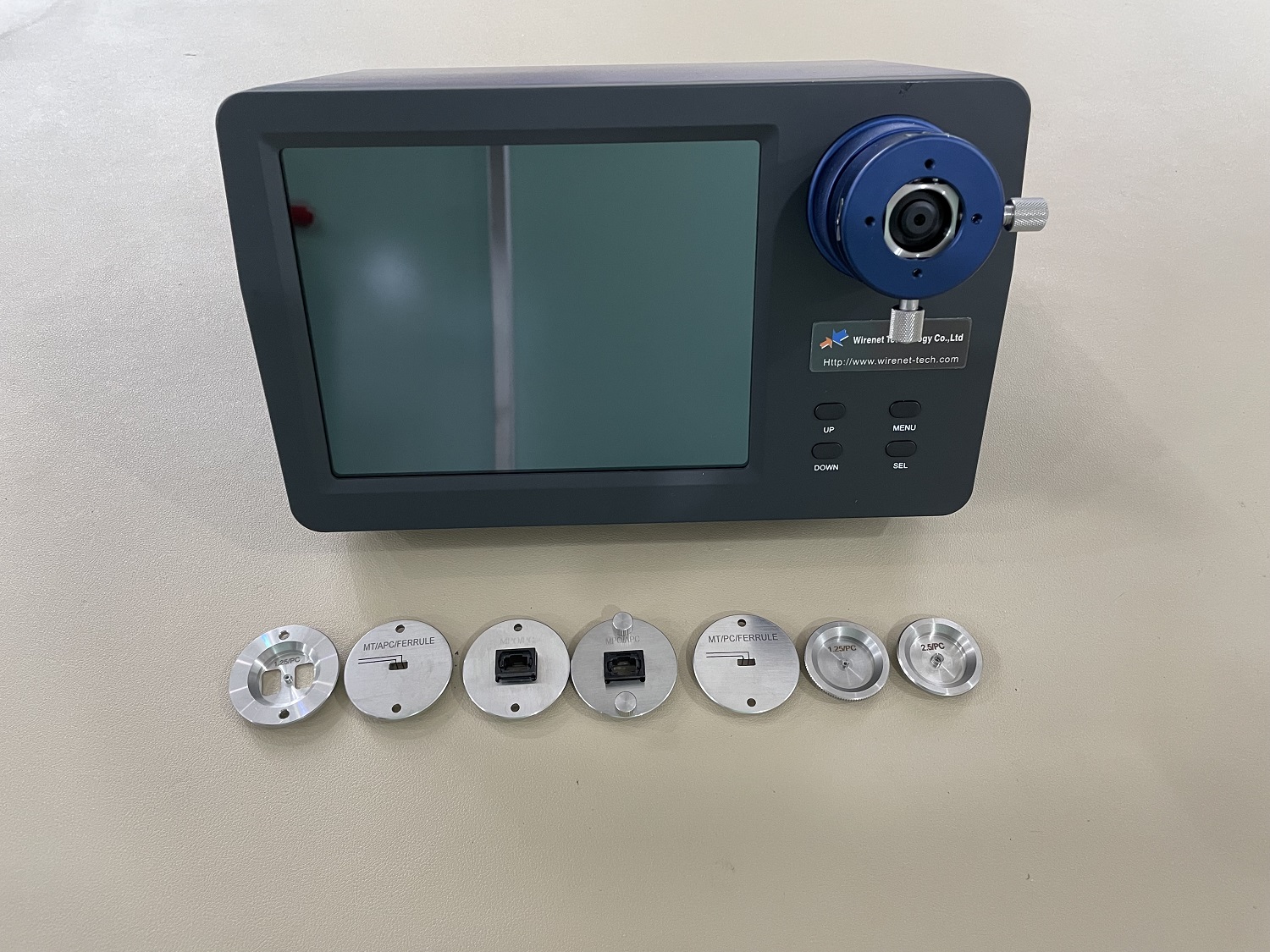

Easycheck is equipped with 1.25mm, 2.5mm ceramic precise tips which can meet various inspection requirements. The high-level concentricity provides you ideal centered image when replacing different tips. The ceramic casing tips have infinite life. What is more imtipant is that the image will not deviate from center due to attrition.


Features
* Lasting performance and value embodiment
* The design concept of integrated
* Incomparable image quality
* Convenient operation
* Dustproof design
* Image centered design
* Precision ceramic adapter
* Image storage function

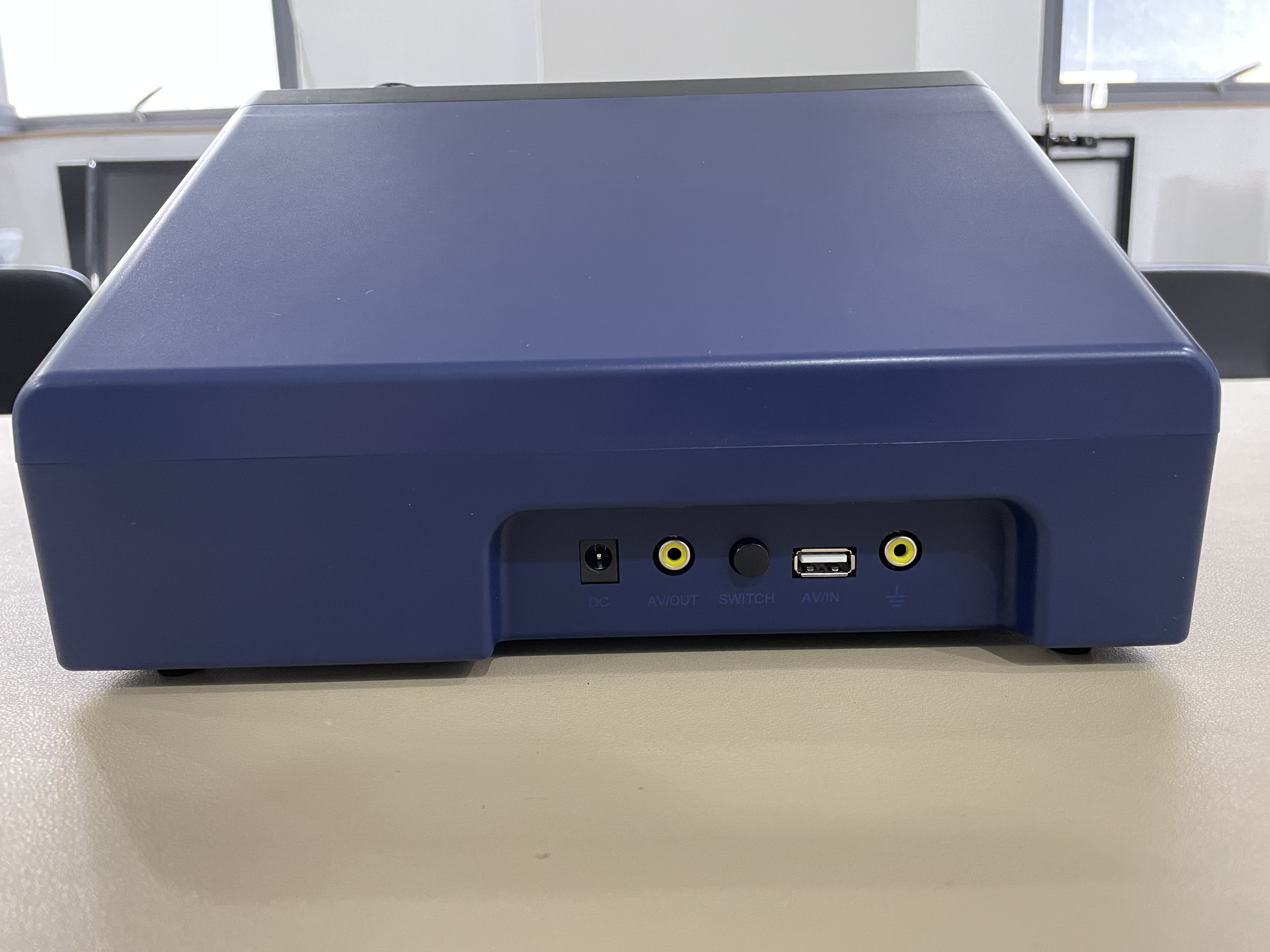

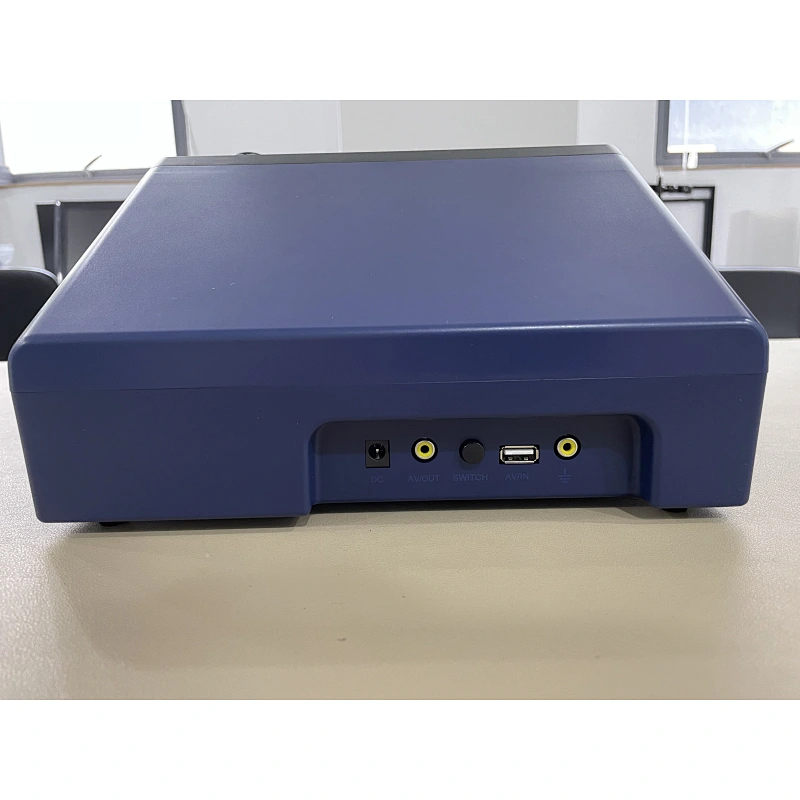

* Image input and output functions
* Safety & humanized design
Image input/output format
Simulated PAL
CCD area resolution
1/3” 625 lines
Image output tip
RCA
Image input tip
RCA
Focus mode
Manual
Image analysis
---
Power dissipation
3W
Working temperature
+10°C ~ +50°C
Storage temperature
0°C ~ +55°C
Easyget input tip
0
Display
8” FTF 800*600PIX
Power supply
DC 12V
Volume
266*232*180 (mm)
Weight
1.52kg
