16 core Fiber Optic Terminal Box
16 core Fiber Optic Terminal Box
16 core Fiber Optic Terminal Box

16 core Fiber Optic Terminal Box

Model NO.
0216
Quantity:

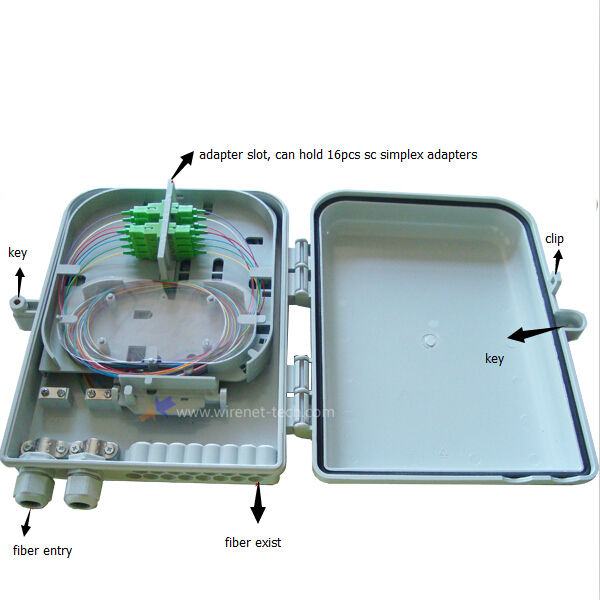

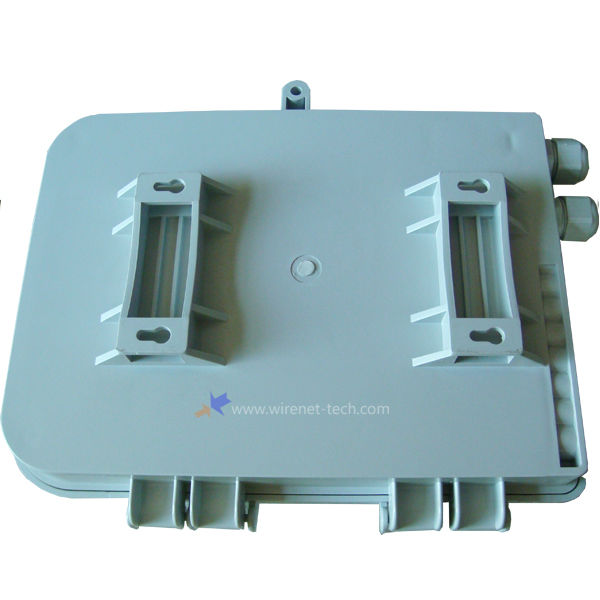

FTTH Outdoor Pole/Wall Mounted Weatherproof Fiber Enclosure is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected, Model No.: OTB-0216 is a PC plastic terminal box, 2 input cable ports 16 output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using.




Features

  1. Industry Standard User Interface, be made of high impact plastic.

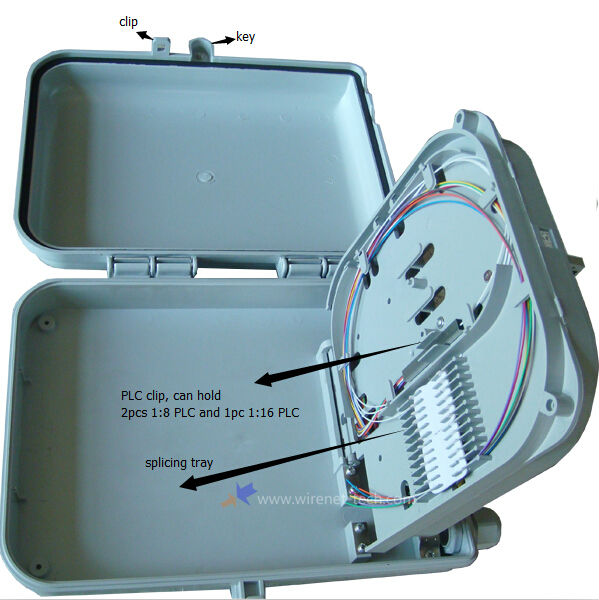

  2. Can accommodate 1x8 & 1X16 PLC splitter.
  3. Anti-UV, Ultra violet resistant and rainfall resistant.
  4. Up to 16 FTTH drops.

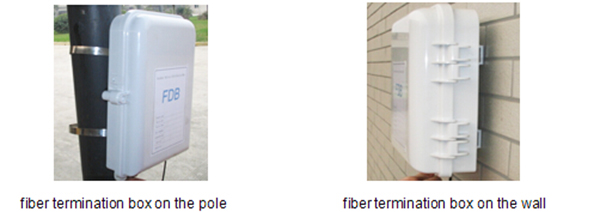

  5. Wall and pole mountable.

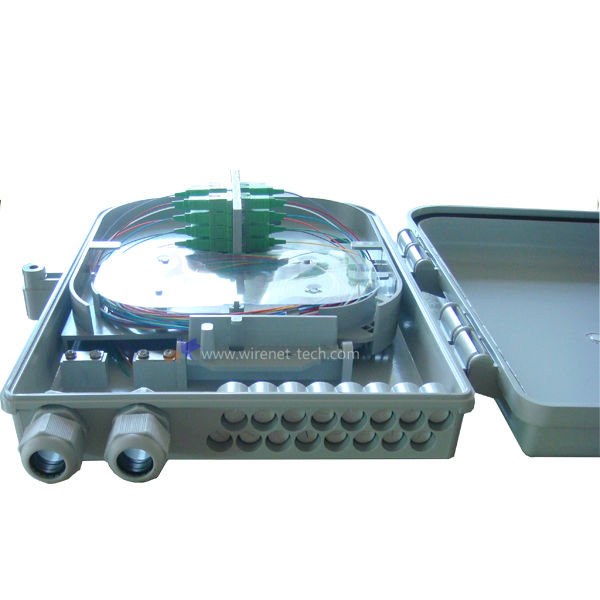

  6. 2 inlet ports, 16 outlet ports

Mechanical data

Model

Capacity

Size(WXDXH)

OTB-0208

8 port

181x45x207mm

OTB-0216

16 port

260x320x90mm

Packing information

Model

N.W

(kg/pcs)

Dimension of outer carton

(mm)

G.W of outer Carton

(kg/carton)

No of Products

(pcs/carton)

OTB-0208

0.85

530*480*390

17.8

20

OTB-0216

1.85

550*355*620

16.1

10

Application

  1. widely used in FTTH access network.
  2. Telecommunication Networks
  3. CATV Networks
  4. Data communications Networks
  5. Local Area Networks

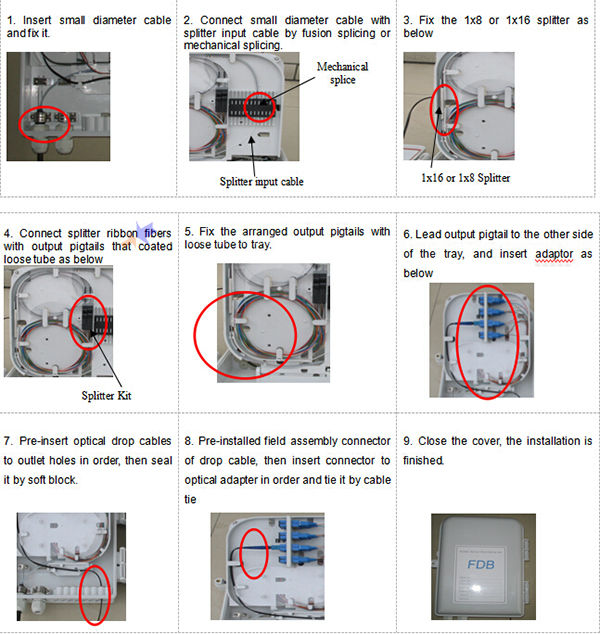

How to install
